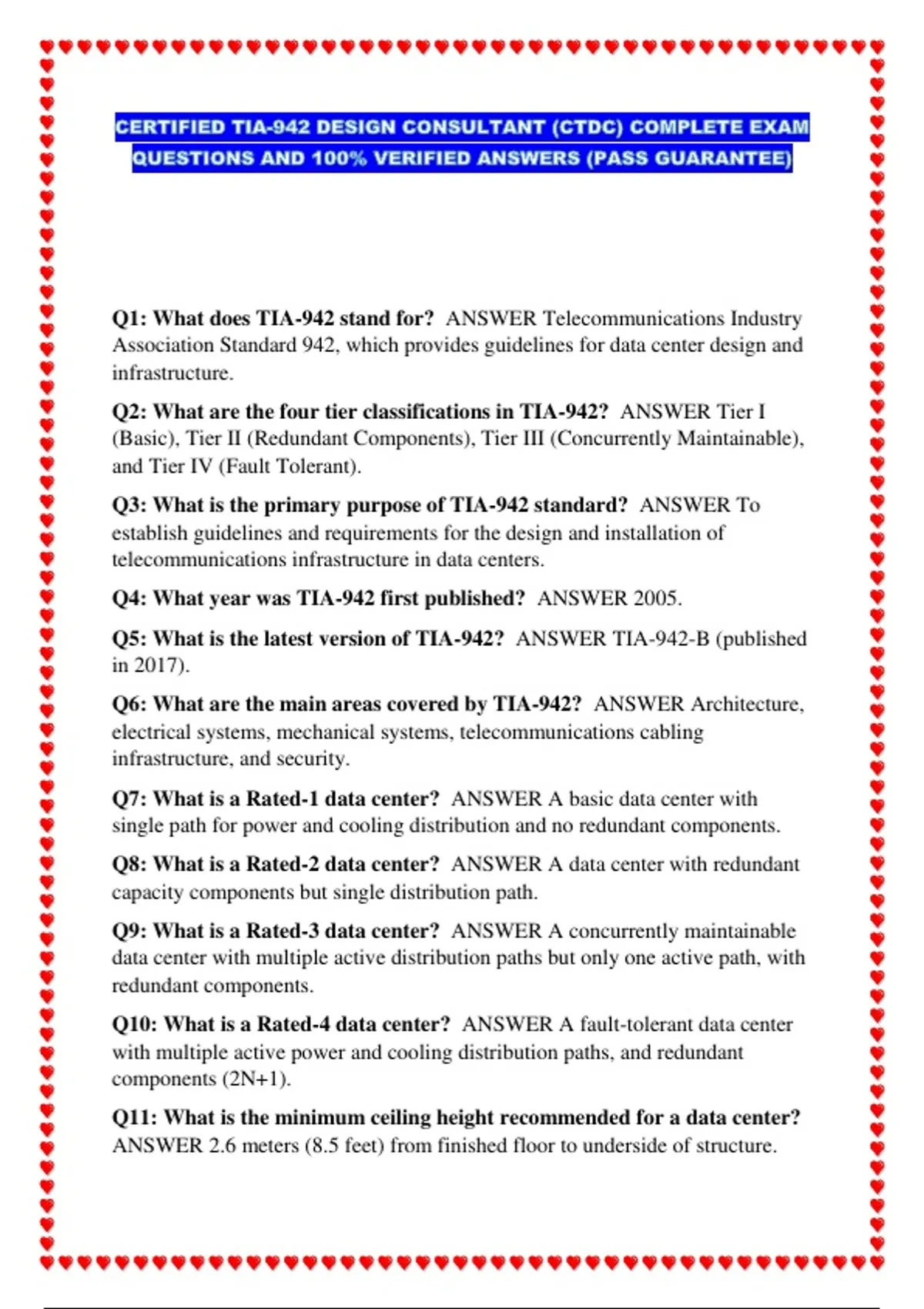

Q1: What does TIA-942 stand for? ANSWER Telecommunications Industry
Association Standard 942, which provides guidelines for data center design and
infrastructure.
Q2: What are the four tier classifications in TIA-942? ANSWER Tier I
(Basic), Tier II (Redundant Components), Tier III (Concurrently Maintainable),
and Tier IV (Fault Tolerant).
Q3: What is the primary purpose of TIA-942 standard? ANSWER To
establish guidelines and requirements for the design and installation of
telecommunications infrastructure in data centers.
Q4: What year was TIA-942 first published? ANSWER 2005.
Q5: What is the latest version of TIA-942? ANSWER TIA-942-B (published
in 2017).
Q6: What are the main areas covered by TIA-942? ANSWER Architecture,
electrical systems, mechanical systems, telecommunications cabling
infrastructure, and security.
Q7: What is a Rated-1 data center? ANSWER A basic data center with
single path for power and cooling distribution and no redundant components.
Q8: What is a Rated-2 data center? ANSWER A data center with redundant
capacity components but single distribution path.
Q9: What is a Rated-3 data center? ANSWER A concurrently maintainable
data center with multiple active distribution paths but only one active path, with
redundant components.
Q10: What is a Rated-4 data center? ANSWER A fault-tolerant data center
with multiple active power and cooling distribution paths, and redundant
components (2N+1).
Q11: What is the minimum ceiling height recommended for a data center?
ANSWER 2.6 meters (8.5 feet) from finished floor to underside of structure.
,Q12: What is the recommended temperature range for data centers?
ANSWER 18°C to 27°C (64°F to 81°F) according to ASHRAE guidelines
referenced in TIA-942.
Q13: What is the recommended humidity range? ANSWER 40% to 60%
relative humidity with a maximum dew point of 17°C (62.6°F).
Q14: What is the purpose of the entrance room in a data center? ANSWER
To serve as the interface between outside plant cabling and inside plant cabling
infrastructure.
Q15: What is the main distribution area (MDA)? ANSWER The centralized
space where backbone cabling from various areas converges and connects to the
data center equipment.
Q16: What is a horizontal distribution area (HDA)? ANSWER An area that
serves as a distribution point for horizontal cabling to equipment within the data
hall.
Q17: What is a zone distribution area (ZDA)? ANSWER An optional
interconnection point between the HDA and the equipment distribution area.
Q18: What is the equipment distribution area (EDA)? ANSWER The area
where equipment racks and cabinets are located.
Q19: What is the maximum horizontal cable distance in a data center?
ANSWER 90 meters (295 feet) of solid conductor cable plus 10 meters (33 feet)
of patch cords.
Q20: What type of flooring is recommended for data centers? ANSWER
Raised floor systems with a recommended height of 600-1200mm (24-48
inches) for airflow.
Q21: What is the recommended aisle width in a data center? ANSWER
Minimum 1.2 meters (4 feet) for cold aisles and hot aisles.
Q22: What is hot aisle/cold aisle configuration? ANSWER A layout design
where equipment is arranged in alternating rows with cold air intakes facing one
aisle and hot air exhausts facing another.
Q23: What is N redundancy? ANSWER No redundancy - the minimum
required capacity to support the load.
Q24: What is N+1 redundancy? ANSWER One additional unit of capacity
beyond what is required to support the load.
, Q25: What is 2N redundancy? ANSWER Double the required capacity,
providing full redundancy with completely independent systems.
Q26: What is 2N+1 redundancy? ANSWER Double the capacity plus one
additional unit for redundancy.
Q27: What is the purpose of containment systems? ANSWER To separate
hot and cold air streams, improving cooling efficiency and reducing energy
consumption.
Q28: What is the recommended clear height under a raised floor?
ANSWER 600mm to 1200mm (24 to 48 inches) depending on cooling
requirements.
Q29: What is the purpose of seismic considerations in data center design?
ANSWER To ensure infrastructure can withstand earthquakes and continue
operations or minimize damage.
Q30: What are the key components of data center physical security?
ANSWER Perimeter security, access control systems, surveillance, mantraps,
and security personnel.
Section 2: Site Selection and Architecture (Questions 31-60)
Q31: What factors should be considered for data center site selection?
ANSWER Proximity to fiber networks, power availability, natural disaster risk,
security, accessibility, and local regulations.
Q32: What is the minimum distance from flood zones recommended?
ANSWER Sites should be above 100-year flood plain levels.
Q33: What is the recommended distance from airports? ANSWER At least
3 km (2 miles) to minimize aircraft impact risk.
Q34: What geological factors should be assessed? ANSWER Seismic
activity, soil stability, groundwater levels, and bedrock depth.
Q35: Why is proximity to substations important? ANSWER To reduce
power transmission losses and improve reliability of electrical supply.
Q36: What is the ideal building orientation for energy efficiency?
ANSWER Minimize east and west facing walls to reduce solar heat gain.
Q37: What is the recommended ceiling-to-floor height for raised floors?
ANSWER 3.6 to 4.5 meters (12 to 15 feet) total height including raised floor
plenum.
