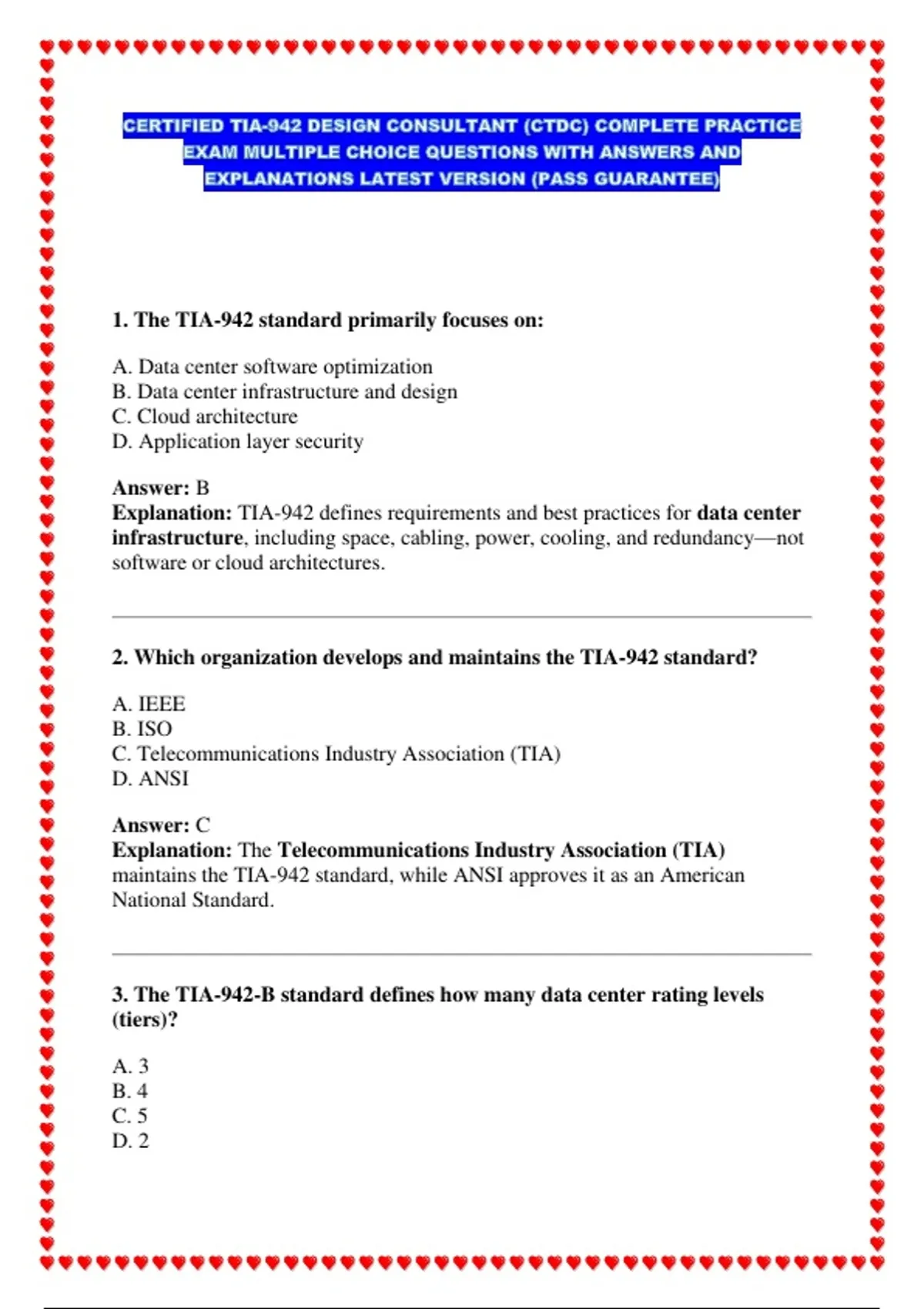

1. The TIA-942 standard primarily focuses on:
A. Data center software optimization
B. Data center infrastructure and design
C. Cloud architecture
D. Application layer security
Answer: B
Explanation: TIA-942 defines requirements and best practices for data center
infrastructure, including space, cabling, power, cooling, and redundancy—not
software or cloud architectures.
2. Which organization develops and maintains the TIA-942 standard?
A. IEEE
B. ISO
C. Telecommunications Industry Association (TIA)
D. ANSI
Answer: C
Explanation: The Telecommunications Industry Association (TIA)
maintains the TIA-942 standard, while ANSI approves it as an American
National Standard.
3. The TIA-942-B standard defines how many data center rating levels
(tiers)?
A. 3
B. 4
C. 5
D. 2
,Answer: B
Explanation: The standard defines four rating levels (Rated-1 to Rated-4) to
indicate the redundancy and fault tolerance of a data center’s infrastructure.
4. A Rated-4 data center must provide:
A. N redundancy
B. N+1 redundancy
C. 2N or greater redundancy with fault tolerance
D. No redundancy
Answer: C
Explanation: Rated-4 data centers must be fully fault tolerant, providing 2N
power and cooling distribution paths and concurrent maintainability.
5. The minimum recommended raised floor height for adequate airflow
and cabling is:
A. 100 mm (4 in)
B. 300 mm (12 in)
C. 600 mm (24 in)
D. 900 mm (36 in)
Answer: C
Explanation: A 600 mm (24 in) raised floor allows sufficient space for
underfloor cabling and airflow distribution in most data centers.
6. The Equipment Room (ER) is defined in TIA-942 as:
A. The space for end-user equipment
B. The central room housing core network and facility systems
C. Office area for IT staff
D. Cooling unit enclosure
Answer: B
Explanation: The ER is the centralized space that houses the main data center
infrastructure components such as core routers, switches, and servers.
,7. The TIA-942 recommends a structured cabling system based on:
A. TIA-606
B. TIA-568
C. TIA-862
D. ISO-11801
Answer: B
Explanation: The TIA-942 standard references TIA-568 for structured cabling
specifications (copper and fiber).
8. Which of the following is not a functional area of a data center per TIA-
942?
A. Entrance room
B. Main distribution area (MDA)
C. Operations office
D. Horizontal distribution area (HDA)
Answer: C
Explanation: The operations office is an administrative space, not a core
functional area in TIA-942’s physical layout definition.
9. The Computer Room (CR) is:
A. A room for software engineers
B. The space where IT equipment operates
C. A backup control room
D. The mechanical room
Answer: B
Explanation: The Computer Room (CR) is the main area containing active IT
equipment like servers and network switches.
10. The Main Distribution Area (MDA) typically houses:
A. Cooling units
B. Power panels
, C. Core routers and switches
D. User desks
Answer: C
Explanation: The MDA contains core networking and central distribution
equipment connecting to HDAs and EDA areas.
11. The Entrance Room (ER) contains:
A. Servers
B. Building entrance cables and demarcation points
C. Backup generators
D. Fire suppression tanks
Answer: B
Explanation: The Entrance Room is where outside service provider cables
terminate and connect to internal systems.
12. The Horizontal Distribution Area (HDA) connects:
A. Entrance Room to MDA
B. MDA to Equipment Distribution Area (EDA)
C. Power system to racks
D. Cooling system to raised floor
Answer: B
Explanation: The HDA connects the MDA to the EDA, providing
interconnections for specific zones within the data center.
13. What is the recommended maximum distance for copper cabling
(Category 6A) per TIA-942?
A. 90 m
B. 100 m
C. 70 m
D. 80 m
