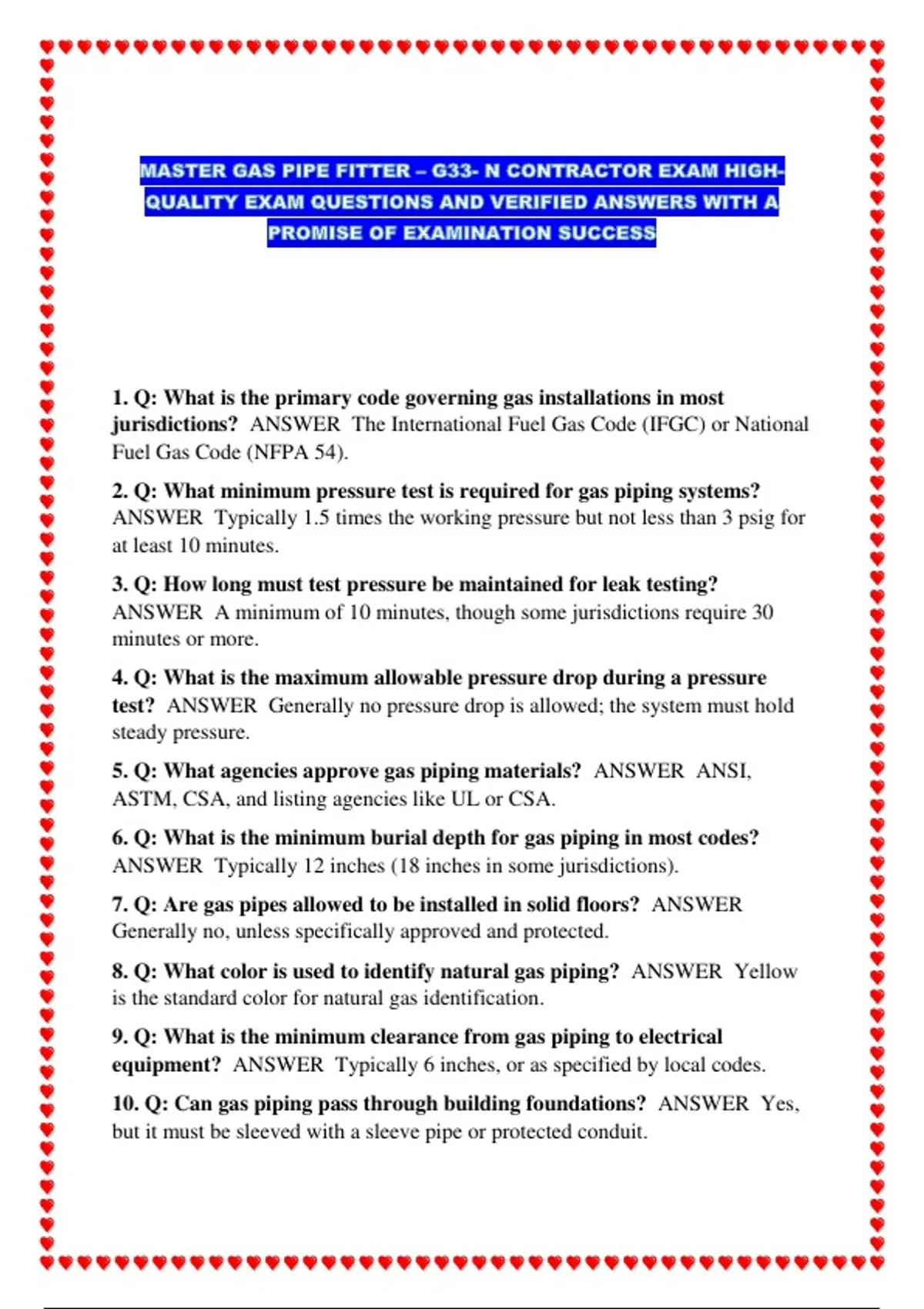

1. Q: What is the primary code governing gas installations in most
jurisdictions? ANSWER The International Fuel Gas Code (IFGC) or National
Fuel Gas Code (NFPA 54).
2. Q: What minimum pressure test is required for gas piping systems?
ANSWER Typically 1.5 times the working pressure but not less than 3 psig for
at least 10 minutes.
3. Q: How long must test pressure be maintained for leak testing?
ANSWER A minimum of 10 minutes, though some jurisdictions require 30
minutes or more.
4. Q: What is the maximum allowable pressure drop during a pressure
test? ANSWER Generally no pressure drop is allowed; the system must hold
steady pressure.
5. Q: What agencies approve gas piping materials? ANSWER ANSI,
ASTM, CSA, and listing agencies like UL or CSA.
6. Q: What is the minimum burial depth for gas piping in most codes?
ANSWER Typically 12 inches (18 inches in some jurisdictions).
7. Q: Are gas pipes allowed to be installed in solid floors? ANSWER
Generally no, unless specifically approved and protected.
8. Q: What color is used to identify natural gas piping? ANSWER Yellow
is the standard color for natural gas identification.
9. Q: What is the minimum clearance from gas piping to electrical
equipment? ANSWER Typically 6 inches, or as specified by local codes.
10. Q: Can gas piping pass through building foundations? ANSWER Yes,
but it must be sleeved with a sleeve pipe or protected conduit.
,11. Q: What is required when gas piping passes through walls? ANSWER
The pipe must be protected by a sleeve or thimble with clearance for movement.
12. Q: Are corrugated stainless steel tubing (CSST) systems allowed by
code? ANSWER Yes, when listed and installed according to manufacturer's
instructions.
13. Q: What is the maximum working pressure for gas piping in most
residential applications? ANSWER Typically 5 psig or less for appliances,
though higher pressures are used for distribution.
14. Q: What permits are required before starting gas piping work?
ANSWER A building/plumbing permit and often a specific gas work permit.
15. Q: Who can perform inspections on gas installations? ANSWER A
certified inspector from the Authority Having Jurisdiction (AHJ).
16. Q: What is the minimum distance from gas piping to a flue or chimney?
ANSWER Typically 6 inches unless the piping is protected from heat.
17. Q: Are compression fittings allowed on gas piping? ANSWER Yes,
when specifically approved for gas service and properly installed.
18. Q: What is required at every gas shutoff location? ANSWER A readily
accessible manual shutoff valve.
19. Q: Can gas piping be installed in elevator shafts? ANSWER Generally
no, unless specifically approved by code.
20. Q: What is the requirement for bonding CSST systems? ANSWER
CSST must be bonded to the electrical grounding system per manufacturer
instructions.
21. Q: What is the minimum pipe size typically allowed for gas service?
ANSWER 1/2 inch for most residential applications.
22. Q: Are gas pipes allowed in ventilation ducts? ANSWER No, gas piping
is prohibited in ventilation or air conditioning ducts.
23. Q: What documentation must be provided after installation? ANSWER
As-built drawings, pressure test records, and material certifications.
24. Q: What is the maximum spacing for pipe supports on horizontal runs?
ANSWER Varies by pipe size: typically 6 feet for 1/2"-3/4", 8 feet for 1"-1.5",
10 feet for larger.
, 25. Q: Can dissimilar metals be directly joined in gas piping? ANSWER
Only with approved dielectric fittings to prevent galvanic corrosion.
26. Q: What is required for outdoor gas meters? ANSWER Protection from
physical damage and proper clearances from openings.
27. Q: How should abandoned gas lines be handled? ANSWER Capped or
plugged at the nearest active fitting and purged of gas.
28. Q: What is the requirement for labeling gas shutoff valves? ANSWER
Valves should be clearly labeled and accessible.
29. Q: Can gas piping be used as a ground for electrical systems?
ANSWER No, gas piping cannot serve as an electrical ground.
30. Q: What is required for testing LP gas systems? ANSWER Higher test
pressures (typically 20-60 psig) due to higher operating pressures.
31. Q: What is the minimum thread engagement for threaded pipe joints?
ANSWER The threads must be engaged at least to the first thread of the fitting.
32. Q: Are gas lines allowed through concrete slabs? ANSWER Yes, but
they must be sleeved and protected from corrosion.
33. Q: What type of thread sealant is approved for gas applications?
ANSWER Teflon tape or pipe dope specifically rated for gas service.
34. Q: What is the maximum pressure for low-pressure gas systems?
ANSWER Less than 2 psig (14 inches water column).
35. Q: What clearance is required between gas piping and combustible
materials? ANSWER Typically 6 inches or as specified by code.
36. Q: Can black steel pipe be used for gas service? ANSWER Yes, it is one
of the most common materials for gas piping.
37. Q: What is required for gas piping in seismic zones? ANSWER
Flexible connectors or approved earthquake valves and proper support.
38. Q: How should gas piping be marked when concealed? ANSWER The
location should be documented and marked at access points.
39. Q: What is the minimum distance from a gas meter to electrical
meters? ANSWER Typically 3 feet horizontal separation.
40. Q: Can PVC pipe be used for gas service? ANSWER Only specific PE
(polyethylene) rated for gas service, not standard PVC.
