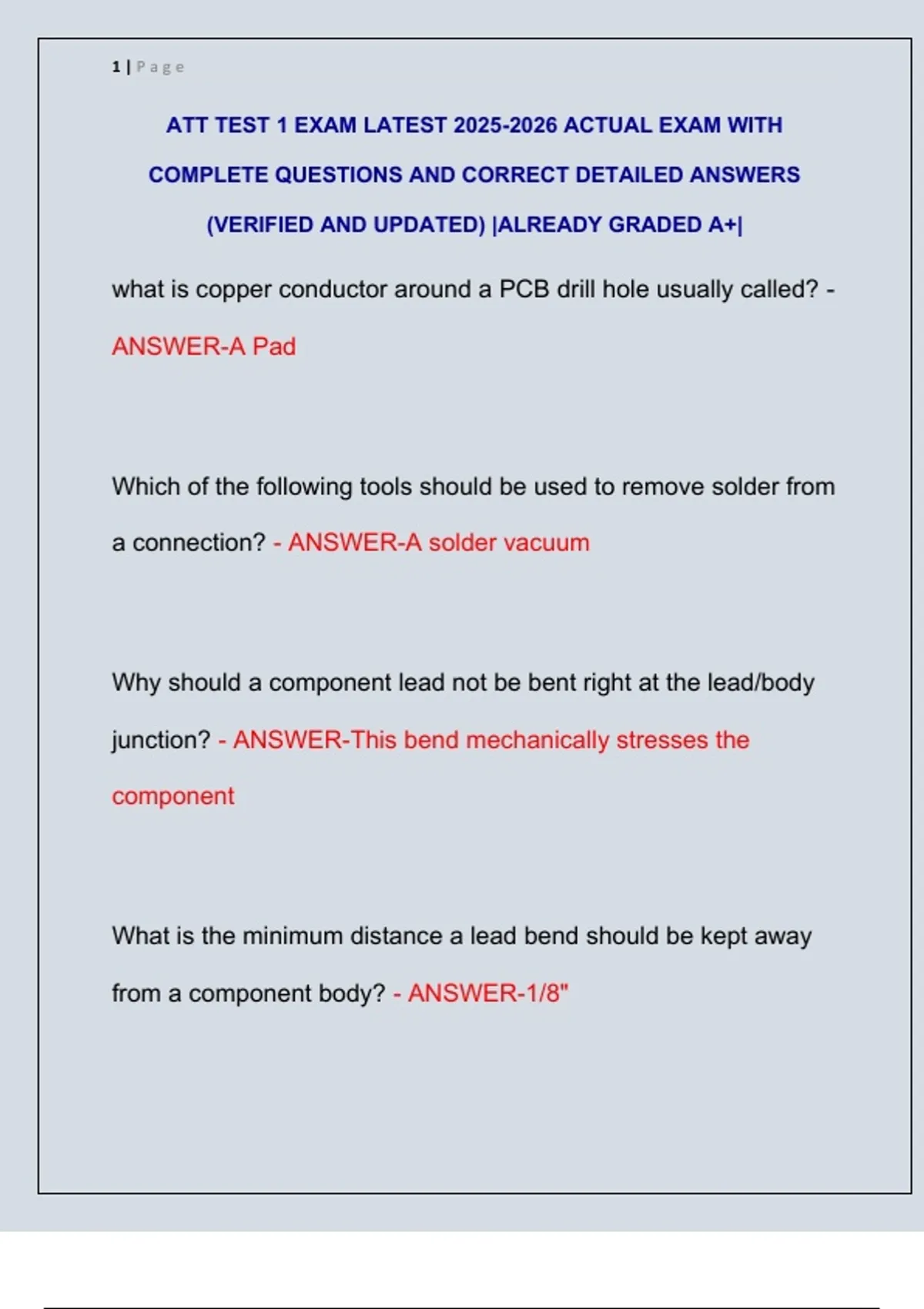

ATT TEST 1 EXAM LATEST 2025-2026 ACTUAL EXAM WITH
COMPLETE QUESTIONS AND CORRECT DETAILED ANSWERS
(VERIFIED AND UPDATED) |ALREADY GRADED A+|
what is copper conductor around a PCB drill hole usually called? -
ANSWER-A Pad
Which of the following tools should be used to remove solder from
a connection? - ANSWER-A solder vacuum
Why should a component lead not be bent right at the lead/body
junction? - ANSWER-This bend mechanically stresses the
component
What is the minimum distance a lead bend should be kept away
from a component body? - ANSWER-1/8"
,2|Page
What is the ideal maximum time to form a solder connection? -
ANSWER-2 Seconds
What is the preferred method of repairing a lifted trace? -
ANSWER-Overbonding
What is wrong when the solder has been removed from a straight-
through connection, but the component will not release? -
ANSWER-The lead is sweated to the connector
A complex circuit is solved by - ANSWER-Using Kirchhoff's Laws
and Ohm's Laws
which statement is NOT true about a loop? - ANSWER-A loop
can be traced in only one direction
, 3|Page
To identify a complex circuit, look for - ANSWER-two voltage
sources or opposing currents
Which statement is NOT true abut a loop? - ANSWER-A Loop
can be traced in only one direction
The algebraic sum of the voltage sources and voltage drops in a
loop equals - ANSWER-Zero
Which of the following troubleshooting steps should be performed
third? - ANSWER-Caluculate and measure values
Which of the following troubleshooting steps should be performed
first? - ANSWER-Analyze the circuit
