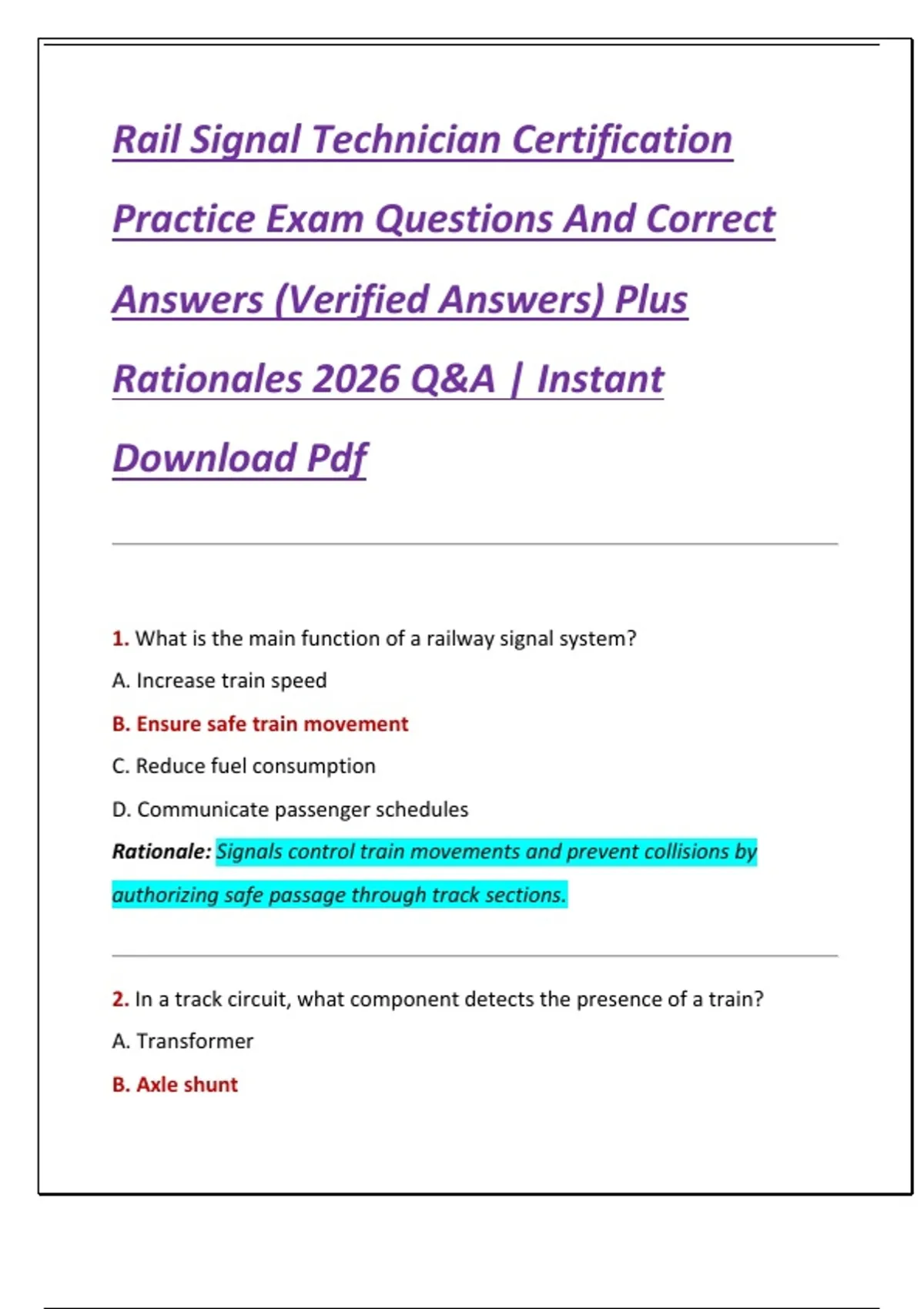

Rail Signal Technician Certification
Practice Exam Questions And Correct
Answers (Verified Answers) Plus
Rationales 2026 Q&A | Instant
Download Pdf
1. What is the main function of a railway signal system?
A. Increase train speed
B. Ensure safe train movement
C. Reduce fuel consumption
D. Communicate passenger schedules
Rationale: Signals control train movements and prevent collisions by
authorizing safe passage through track sections.
2. In a track circuit, what component detects the presence of a train?
A. Transformer
B. Axle shunt
,C. Relay coil
D. Capacitor
Rationale: Train wheels and axles short the rails, creating a shunt that drops
relay voltage and signals track occupancy.
3. What voltage is typically used in a DC track circuit?
A. 120 V DC
B. 12 V DC
C. 48 V AC
D. 240 V DC
Rationale: Low-voltage DC circuits (around 12 V) minimize shock risk and
interference.
4. What does an interlocking system prevent?
A. Power surges
B. Conflicting train routes
C. Broken rails
D. Train delays
Rationale: Interlocking ensures signals and switches are set to prevent train
movements that would conflict.
,5. A red aspect on a color light signal means:
A. Stop
B. Proceed
C. Approach
D. Clear
Rationale: Red universally means stop and do not proceed until cleared.
6. What device converts AC to DC for signal equipment?
A. Rectifier
B. Inverter
C. Regulator
D. Transformer
Rationale: A rectifier allows DC operation from AC supply sources.
7. What is the standard gauge distance between rails in most systems?
A. 1435 mm (4 ft 8½ in)
B. 1500 mm
C. 1000 mm
D. 1600 mm
Rationale: The standard gauge globally is 1435 mm for interoperability.
, 8. What is a relay used for in signal circuits?
A. Filtering noise
B. Electrically isolating and controlling circuits
C. Generating power
D. Measuring voltage
Rationale: Relays switch high-current circuits using low-current control
signals.
9. What component ensures time delay in signal relay logic?
A. Diode
B. Timer relay
C. Transformer
D. Shunt resistor
Rationale: Timer relays introduce controlled delay for safety sequencing.
10. A yellow signal aspect usually indicates:
A. Stop
B. Clear
C. Caution / Prepare to stop
D. Restricted
Rationale: Yellow warns the train to prepare to stop at the next signal.
