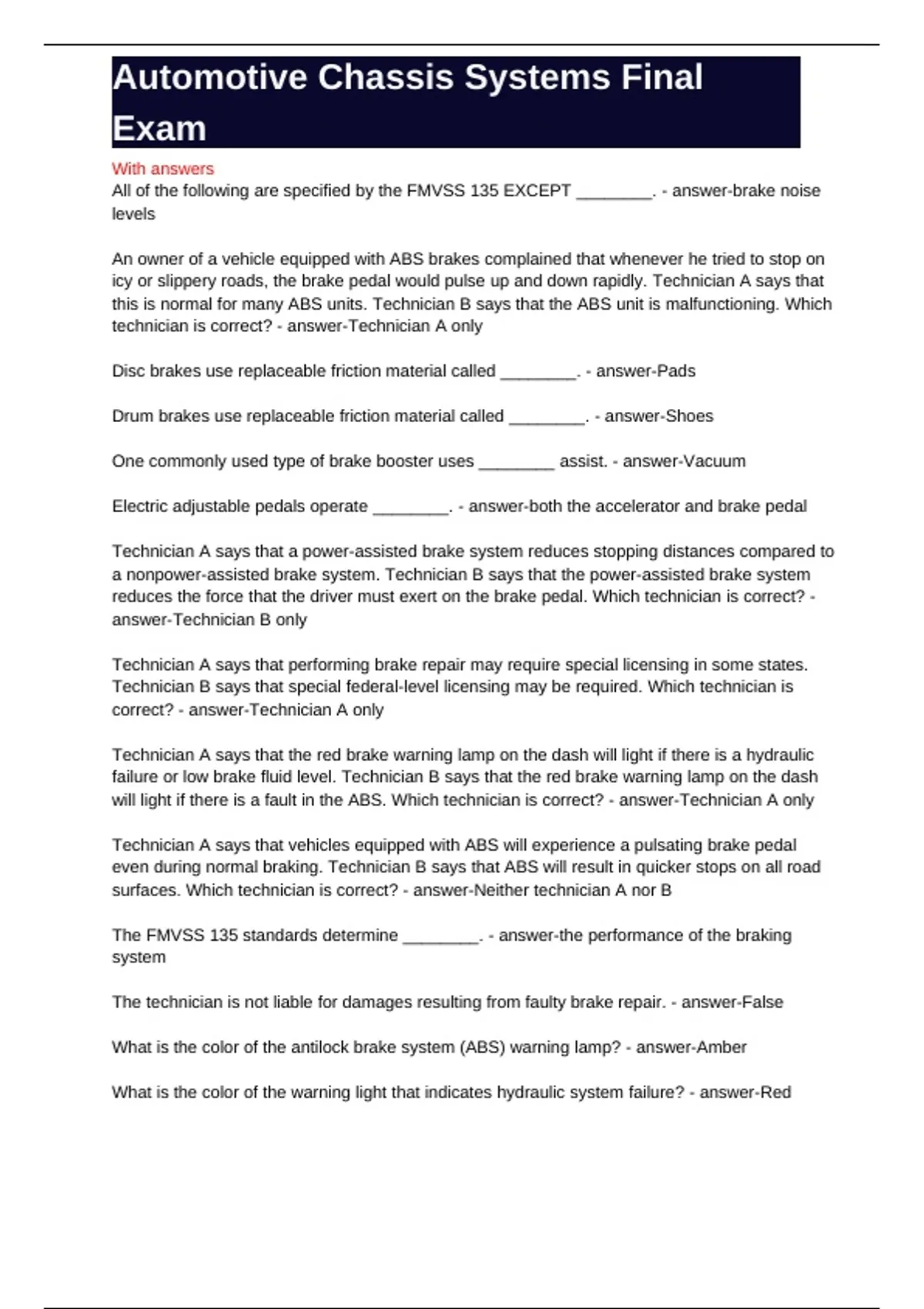

Automotive Chassis Systems Final
Exam
With answers
All of the following are specified by the FMVSS 135 EXCEPT ________. - answer-brake noise
levels
An owner of a vehicle equipped with ABS brakes complained that whenever he tried to stop on
icy or slippery roads, the brake pedal would pulse up and down rapidly. Technician A says that
this is normal for many ABS units. Technician B says that the ABS unit is malfunctioning. Which
technician is correct? - answer-Technician A only
Disc brakes use replaceable friction material called ________. - answer-Pads
Drum brakes use replaceable friction material called ________. - answer-Shoes
One commonly used type of brake booster uses ________ assist. - answer-Vacuum
Electric adjustable pedals operate ________. - answer-both the accelerator and brake pedal
Technician A says that a power-assisted brake system reduces stopping distances compared to
a nonpower-assisted brake system. Technician B says that the power-assisted brake system
reduces the force that the driver must exert on the brake pedal. Which technician is correct? -
answer-Technician B only
Technician A says that performing brake repair may require special licensing in some states.
Technician B says that special federal-level licensing may be required. Which technician is
correct? - answer-Technician A only
Technician A says that the red brake warning lamp on the dash will light if there is a hydraulic
failure or low brake fluid level. Technician B says that the red brake warning lamp on the dash
will light if there is a fault in the ABS. Which technician is correct? - answer-Technician A only
Technician A says that vehicles equipped with ABS will experience a pulsating brake pedal
even during normal braking. Technician B says that ABS will result in quicker stops on all road
surfaces. Which technician is correct? - answer-Neither technician A nor B
The FMVSS 135 standards determine ________. - answer-the performance of the braking
system
The technician is not liable for damages resulting from faulty brake repair. - answer-False
What is the color of the antilock brake system (ABS) warning lamp? - answer-Amber
What is the color of the warning light that indicates hydraulic system failure? - answer-Red
, What is the purpose of any brake repair? - answer-Restore like-new performance
Which of the following are used with drum brake systems? - answer-Return springs
Which of the following will turn ON the red brake warning lamp (RBWL)? - answer-All of these
All of the following are correct statements about braking EXCEPT ________. - answer-KINETIC
ENERGY OF A VEHICLE DOUBLES WHEN THE SPEED DOUBLES
Brake fade can occur due to ________. - answer-Any of these
Brake fade caused by water can occur __________________ - answer-WHEN DRIVING
THROUGH WATER PIDDLES OR DURING A SEVERE RAINSTORM
Brake pads and linings that use synthetic material, such as aramid fibers, instead of steel are
usually referred to as ________. - answer-Any of these
Disc brake pads can reach temperatures as high as ________. - answer-1,800 degrees F (980
degrees C)
If the weight of a car doubles, its kinetic energy ________. - answer-doubles
Rear brakes do less work during hard braking than the front brakes because ________. -
answer-Both the vehicle weight transfers forward and the rear tires have less traction are
correct
Technician A says that disc brake rotors may have internal passages for cooling. Technician B
says that the faster the vehicle is traveling when the brakes are applied, the greater the amount
of heat created in the brake system. Which technician is correct? - answer-Both technicians A
and B
Technician A says that the front brakes do most of the braking because the front brakes are
larger. Technician B says that due to weight transfer, most of the braking force needs to be
done by the front brakes. Which technician is correct? - answer-Technician B only
The amount of asbestos in brake friction material is being restricted because ________. -
answer-it is a health hazard
The front brakes on a vehicle do more work than do the rear brakes. Technician A says that this
is because the front wheel cylinders are closer to the master cylinder than are the rear wheel
cylinders. Technician B says that this is because the weight of a vehicle shifts to the front during
a stop. Which technician is correct? - answer-Technician B only
