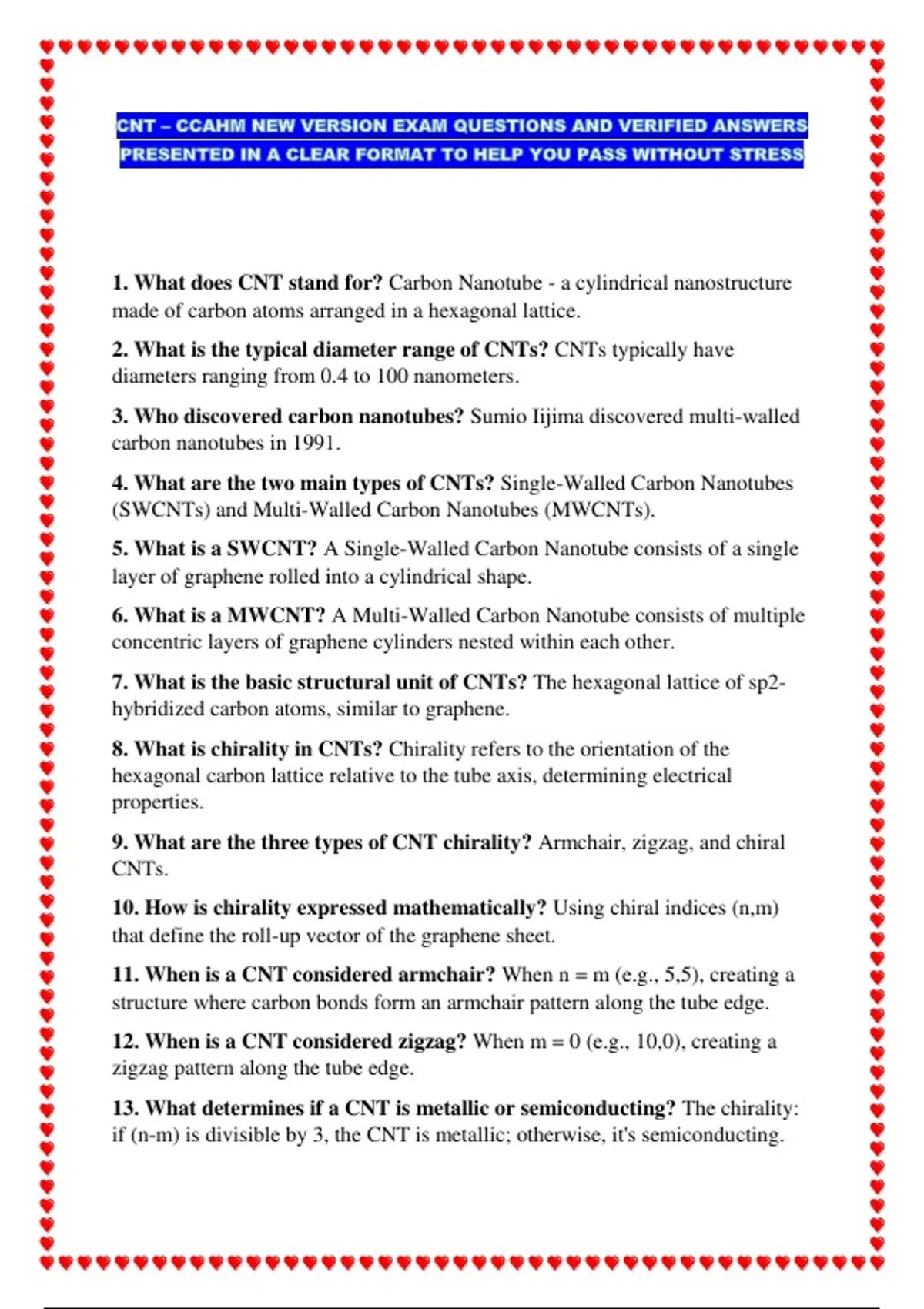

1. What does CNT stand for? Carbon Nanotube - a cylindrical nanostructure
made of carbon atoms arranged in a hexagonal lattice.
2. What is the typical diameter range of CNTs? CNTs typically have
diameters ranging from 0.4 to 100 nanometers.
3. Who discovered carbon nanotubes? Sumio Iijima discovered multi-walled
carbon nanotubes in 1991.
4. What are the two main types of CNTs? Single-Walled Carbon Nanotubes
(SWCNTs) and Multi-Walled Carbon Nanotubes (MWCNTs).
5. What is a SWCNT? A Single-Walled Carbon Nanotube consists of a single
layer of graphene rolled into a cylindrical shape.
6. What is a MWCNT? A Multi-Walled Carbon Nanotube consists of multiple
concentric layers of graphene cylinders nested within each other.
7. What is the basic structural unit of CNTs? The hexagonal lattice of sp2-
hybridized carbon atoms, similar to graphene.
8. What is chirality in CNTs? Chirality refers to the orientation of the
hexagonal carbon lattice relative to the tube axis, determining electrical
properties.
9. What are the three types of CNT chirality? Armchair, zigzag, and chiral
CNTs.
10. How is chirality expressed mathematically? Using chiral indices (n,m)
that define the roll-up vector of the graphene sheet.
11. When is a CNT considered armchair? When n = m (e.g., 5,5), creating a
structure where carbon bonds form an armchair pattern along the tube edge.
12. When is a CNT considered zigzag? When m = 0 (e.g., 10,0), creating a
zigzag pattern along the tube edge.
13. What determines if a CNT is metallic or semiconducting? The chirality:
if (n-m) is divisible by 3, the CNT is metallic; otherwise, it's semiconducting.
,14. What percentage of randomly produced SWCNTs are metallic?
Approximately one-third are metallic, and two-thirds are semiconducting.
15. What is the length-to-diameter ratio of CNTs? CNTs can have aspect
ratios exceeding 10,000:1, making them extremely anisotropic.
16. What is the interlayer spacing in MWCNTs? Approximately 0.34 nm,
similar to the interlayer distance in graphite.
17. What is the Young's modulus of CNTs? Approximately 1 TPa (1000
GPa), making them among the strongest materials known.
18. What is the tensile strength of CNTs? Approximately 50-150 GPa for
individual nanotubes.
19. What is the thermal conductivity of CNTs? Up to 3000-6000 W/m·K at
room temperature, higher than diamond.
20. What is the electrical conductivity of metallic CNTs? Can carry current
densities exceeding 10^9 A/cm², much higher than copper.
21. What is the band gap of semiconducting CNTs? Inversely proportional to
the tube diameter, typically ranging from 0.4 to 1.2 eV.
22. What is quantum confinement in CNTs? The restriction of electron
motion in the radial direction due to the nanoscale diameter, leading to
quantized energy levels.
23. What is ballistic transport in CNTs? Electron transport without scattering
over long distances (up to micrometers) at low temperatures.
24. What is the density of CNTs? Approximately 1.3-1.4 g/cm³, lighter than
aluminum.
25. What temperature can CNTs withstand? Up to 2800°C in vacuum and
about 750°C in air before oxidation begins.
26. What is the surface area of CNTs? MWCNTs: 200-400 m²/g; SWCNTs:
400-900 m²/g.
27. Are CNTs chemically stable? Yes, they are highly chemically stable and
resistant to most acids and bases.
28. What is nanotube bundling? The tendency of CNTs to aggregate into
bundles due to strong van der Waals forces.
29. What are nanotube ropes? Bundles of aligned SWCNTs held together by
van der Waals interactions, often forming triangular lattices.
, 30. What is the difference between capped and open CNTs? Capped CNTs
have hemispherical fullerene-like caps at the ends; open CNTs have exposed
tube edges.
31. What is a carbon nanotube cap? A hemispherical closure at the nanotube
end, containing pentagonal rings necessary for curvature.
32. How many pentagonal rings are in a CNT cap? Exactly 6 pentagonal
rings, according to Euler's theorem for closed carbon structures.
33. What is the role of pentagonal rings in CNTs? They introduce positive
curvature necessary for forming caps and bends in the nanotube structure.
34. What is a nanotube junction? A connection between two or more
nanotubes, often with different chiralities, creating electronic heterojunctions.
35. What are Y-junction CNTs? T- or Y-shaped CNT structures that can
function as molecular electronic switches or transistors.
36. What is the electron mean free path in CNTs? Can exceed several
micrometers at room temperature in high-quality tubes.
37. What is the phonon mean free path in CNTs? Can reach several hundred
nanometers to micrometers, enabling excellent thermal transport.
38. What are the allowed electron states in CNTs? One-dimensional
subbands resulting from quantum confinement in the circumferential direction.
39. What is the density of states in metallic CNTs? Exhibits van Hove
singularities with constant density of states near the Fermi level.
40. What causes optical transitions in CNTs? Transitions between van Hove
singularities in the valence and conduction bands.
41. What is the Raman spectrum characteristic of CNTs? Features the
Radial Breathing Mode (RBM), D-band, G-band, and G'-band.
42. What is the Radial Breathing Mode (RBM)? A low-frequency Raman
mode (~100-350 cm⁻¹) where all carbon atoms move radially in phase.
43. How does RBM frequency relate to CNT diameter? Inversely
proportional: ω_RBM ≈ 248/d (cm⁻¹), where d is diameter in nm.
44. What does the D-band in Raman indicate? Defects and disorder in the
carbon structure (~1350 cm⁻¹).
45. What does the G-band represent? The tangential stretching mode of
carbon-carbon bonds (~1580 cm⁻¹), characteristic of sp² carbon.
