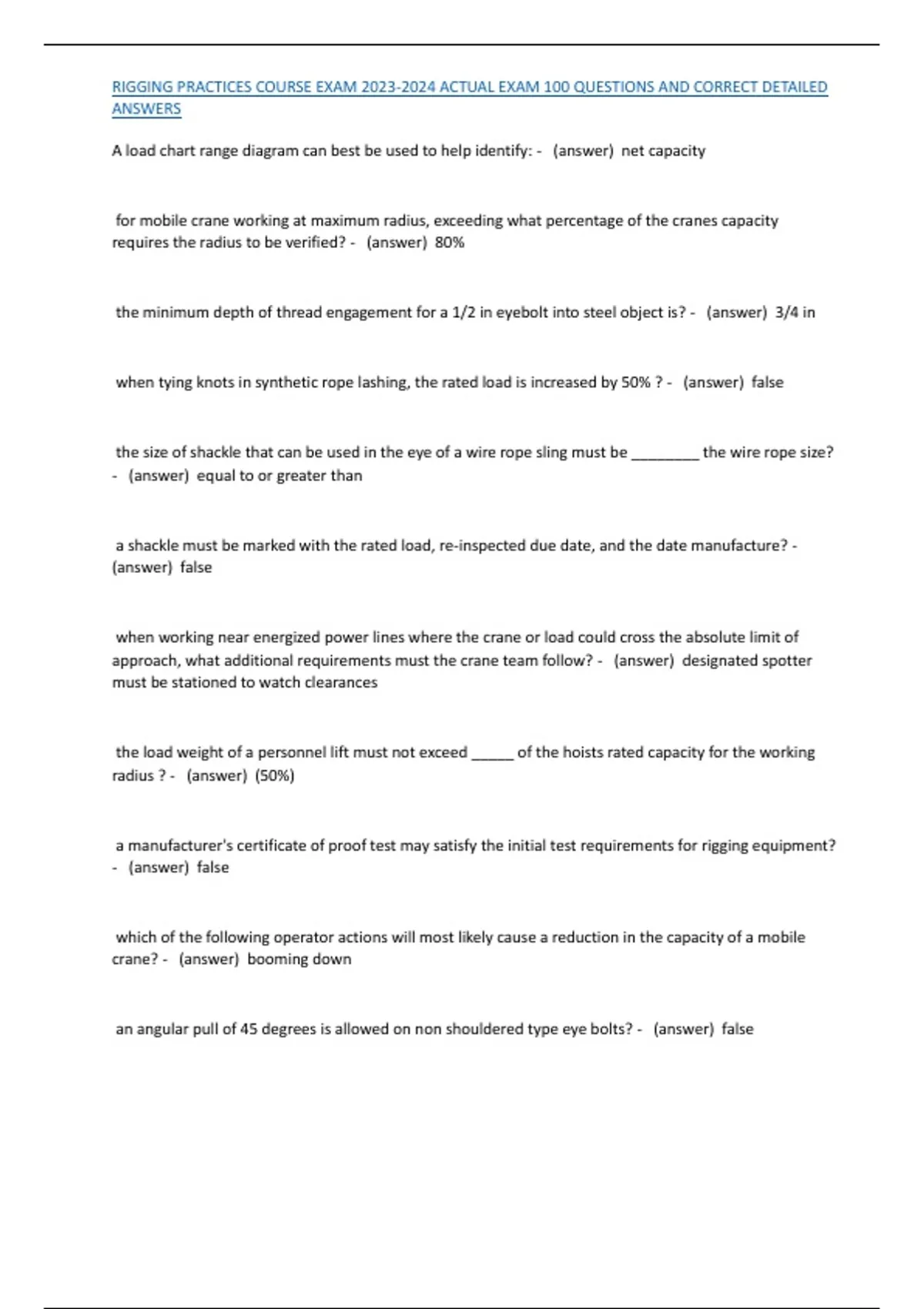

RIGGING PRACTICES COURSE EXAM 2023-2024 ACTUAL EXAM 100 QUESTIONS AND CORRECT DETAILED
ANSWERS
A load chart range diagram can best be used to help identify: - (answer) net capacity
for mobile crane working at maximum radius, exceeding what percentage of the cranes capacity
requires the radius to be verified? - (answer) 80%
the minimum depth of thread engagement for a 1/2 in eyebolt into steel object is? - (answer) 3/4 in
when tying knots in synthetic rope lashing, the rated load is increased by 50% ? - (answer) false
the size of shackle that can be used in the eye of a wire rope sling must be ________ the wire rope size?
- (answer) equal to or greater than
a shackle must be marked with the rated load, re-inspected due date, and the date manufacture? -
(answer) false
when working near energized power lines where the crane or load could cross the absolute limit of
approach, what additional requirements must the crane team follow? - (answer) designated spotter
must be stationed to watch clearances
the load weight of a personnel lift must not exceed _____ of the hoists rated capacity for the working
radius ? - (answer) (50%)
a manufacturer's certificate of proof test may satisfy the initial test requirements for rigging equipment?
- (answer) false
which of the following operator actions will most likely cause a reduction in the capacity of a mobile
crane? - (answer) booming down
an angular pull of 45 degrees is allowed on non shouldered type eye bolts? - (answer) false
, RIGGING PRACTICES COURSE EXAM 2023-2024 ACTUAL EXAM 100 QUESTIONS AND CORRECT DETAILED
ANSWERS
two slings creating a 60 degree sling angle are used to lift a 4,000 pound item. the appropriate rated
load for each sling is 2,000 pounds. - (answer) false
when are loads allowed to be moved over personnel? - (answer) never
given a 1/2 in steel walled empty cylindrical tank that is opened at one end, calculate its weight (round
answer to the nearest hundred) - (answer) 1800 lbs
a crane accident occurs when any one of the elements in the crane operating envelope fails to perform
correctly during crane operations, maintenance, or testing, which results in any of the following except: -
(answer) over rigging the load
a straight-line hitch is good for _____ of a sling rated load? - (answer) 100%
there are three slings hanging from a hook. each sling has a rated capacity of 2,000 lbs. what is the
heaviest load that could be lifted using these slings if they were attached to a single point - (answer)
2000 lbs
why must hoisting be stopped once the load is completely off the ground? - (answer) to determine
sling angle stress
the minimum crane team consist of ? - (answer) the crane operator and rigger-in-charge
while traveling a crane with a load, loads should be kept? - (answer) as low as possible
attachment points must be visually inspected? - (answer) before and after each use
when rigging your own loads, you are responsible for? - (answer) all of the above
rigging gear test and inspection records must include: - (answer) all of the information listed above
ANSWERS
A load chart range diagram can best be used to help identify: - (answer) net capacity
for mobile crane working at maximum radius, exceeding what percentage of the cranes capacity
requires the radius to be verified? - (answer) 80%
the minimum depth of thread engagement for a 1/2 in eyebolt into steel object is? - (answer) 3/4 in
when tying knots in synthetic rope lashing, the rated load is increased by 50% ? - (answer) false
the size of shackle that can be used in the eye of a wire rope sling must be ________ the wire rope size?
- (answer) equal to or greater than
a shackle must be marked with the rated load, re-inspected due date, and the date manufacture? -
(answer) false
when working near energized power lines where the crane or load could cross the absolute limit of
approach, what additional requirements must the crane team follow? - (answer) designated spotter
must be stationed to watch clearances
the load weight of a personnel lift must not exceed _____ of the hoists rated capacity for the working
radius ? - (answer) (50%)
a manufacturer's certificate of proof test may satisfy the initial test requirements for rigging equipment?
- (answer) false
which of the following operator actions will most likely cause a reduction in the capacity of a mobile
crane? - (answer) booming down
an angular pull of 45 degrees is allowed on non shouldered type eye bolts? - (answer) false
, RIGGING PRACTICES COURSE EXAM 2023-2024 ACTUAL EXAM 100 QUESTIONS AND CORRECT DETAILED
ANSWERS
two slings creating a 60 degree sling angle are used to lift a 4,000 pound item. the appropriate rated
load for each sling is 2,000 pounds. - (answer) false
when are loads allowed to be moved over personnel? - (answer) never
given a 1/2 in steel walled empty cylindrical tank that is opened at one end, calculate its weight (round
answer to the nearest hundred) - (answer) 1800 lbs
a crane accident occurs when any one of the elements in the crane operating envelope fails to perform
correctly during crane operations, maintenance, or testing, which results in any of the following except: -
(answer) over rigging the load
a straight-line hitch is good for _____ of a sling rated load? - (answer) 100%
there are three slings hanging from a hook. each sling has a rated capacity of 2,000 lbs. what is the
heaviest load that could be lifted using these slings if they were attached to a single point - (answer)
2000 lbs
why must hoisting be stopped once the load is completely off the ground? - (answer) to determine
sling angle stress
the minimum crane team consist of ? - (answer) the crane operator and rigger-in-charge
while traveling a crane with a load, loads should be kept? - (answer) as low as possible
attachment points must be visually inspected? - (answer) before and after each use
when rigging your own loads, you are responsible for? - (answer) all of the above
rigging gear test and inspection records must include: - (answer) all of the information listed above
