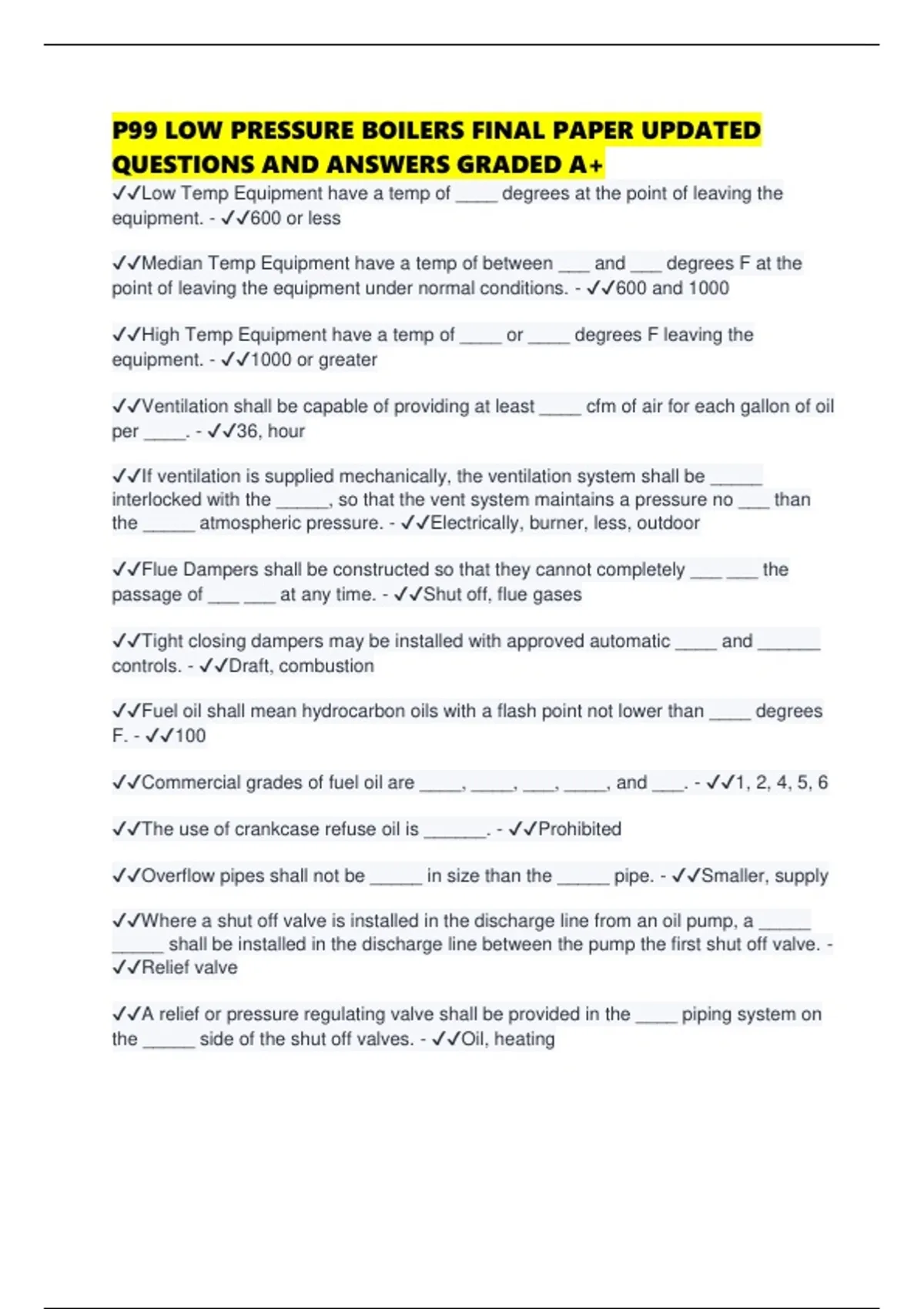

P99 LOW PRESSURE BOILERS FINAL PAPER UPDATED
QUESTIONS AND ANSWERS GRADED A+
✔✔Low Temp Equipment have a temp of ____ degrees at the point of leaving the
equipment. - ✔✔600 or less
✔✔Median Temp Equipment have a temp of between ___ and ___ degrees F at the
point of leaving the equipment under normal conditions. - ✔✔600 and 1000
✔✔High Temp Equipment have a temp of ____ or ____ degrees F leaving the
equipment. - ✔✔1000 or greater
✔✔Ventilation shall be capable of providing at least ____ cfm of air for each gallon of oil
per ____. - ✔✔36, hour
✔✔If ventilation is supplied mechanically, the ventilation system shall be _____
interlocked with the _____, so that the vent system maintains a pressure no ___ than
the _____ atmospheric pressure. - ✔✔Electrically, burner, less, outdoor
✔✔Flue Dampers shall be constructed so that they cannot completely ___ ___ the
passage of ___ ___ at any time. - ✔✔Shut off, flue gases
✔✔Tight closing dampers may be installed with approved automatic ____ and ______
controls. - ✔✔Draft, combustion
✔✔Fuel oil shall mean hydrocarbon oils with a flash point not lower than ____ degrees
F. - ✔✔100
✔✔Commercial grades of fuel oil are ____, ____, ___, ____, and ___. - ✔✔1, 2, 4, 5, 6
✔✔The use of crankcase refuse oil is ______. - ✔✔Prohibited
✔✔Overflow pipes shall not be _____ in size than the _____ pipe. - ✔✔Smaller, supply
✔✔Where a shut off valve is installed in the discharge line from an oil pump, a _____
_____ shall be installed in the discharge line between the pump the first shut off valve. -
✔✔Relief valve
✔✔A relief or pressure regulating valve shall be provided in the ____ piping system on
the _____ side of the shut off valves. - ✔✔Oil, heating
, ✔✔The heating of oil in the storage tanks shall be by means of _____ using low
pressure _____ or _____, or by means of _____ heaters. - ✔✔Coils, hot water, steam,
electric
✔✔Where a single tank and burner exsist, a ____-____ valve shall be required in the
______ line at the tank and another at the ____. - ✔✔Shut-off, supply, burner
✔✔A _____ _____ shall be provided to stop the flow of oil to any burner. - ✔✔Remote
control
✔✔The remote control should be located _____ and as close to the _____ of the boiler
room. - ✔✔Outside, entrance
✔✔All remote controls must be permanently _____, "_____ ____ for _____ ______. -
✔✔Labeled, remote control for oil burner
✔✔On storage tanks of ____ gallons or less remote controls may be installed in the
_____ _____ between the tank and the ______. - ✔✔60, supply lines, burner
✔✔Pressure in a storage tank for purpose of discharging oil is _______. - ✔✔Prohibited
✔✔With each automatic burner a set of ____ controls shall be installed and maintained.
Name 4. - ✔✔Safety, electric, pneumatic, hydrolic, mechanical
✔✔The safety controls should provide the following: a) ___ _____ control, b) ______, c)
_____ or _____ control, and d) high ____ or ____ control. - ✔✔Oil temp control,
ignition, stack or combustion control, high pressure or temp control
✔✔No oil burner shall be installed unless it is connected to a ________. - ✔✔Chimney
✔✔The oil storage tank provides the supply of ____ for ______ in the oil burner. -
✔✔Oil, combustion
✔✔No. 6 oil is ____ and _____. For this reason it is ____ between ____ and ____
degrees F. - ✔✔Thick and heavy, heated, 100, 130
✔✔A ____ ____ circulates oil throughout the system. - ✔✔Suction cup
✔✔____ and ____ are present in the fuel oil. The ____ _____ removes most of the
contaminates before the oil reaches the ____. - ✔✔Dirt, sediment, oil strainer, burner
