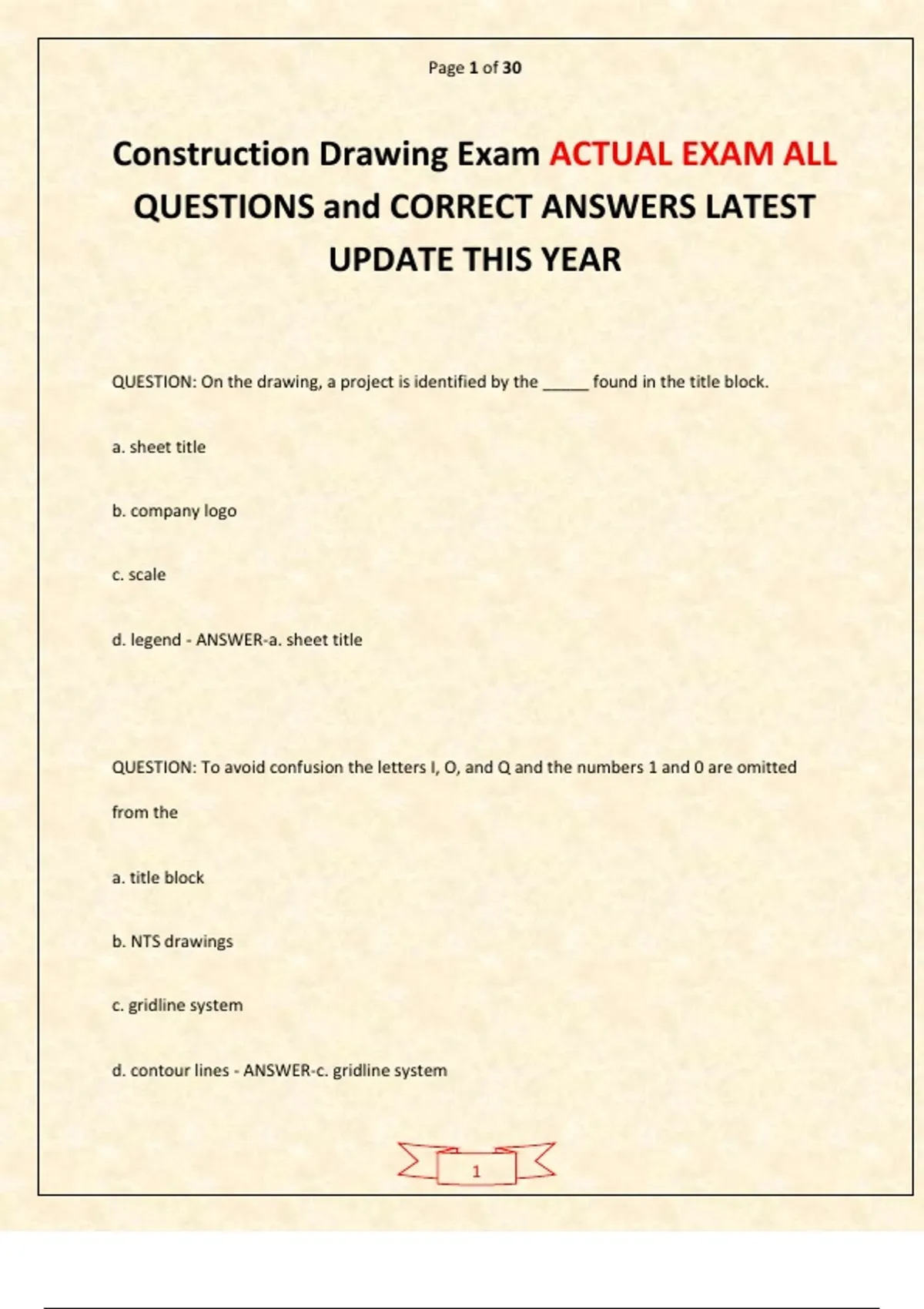

QUESTION: On the drawing, a project is identified by the _____ found in the title block.


a. sheet title


b. company logo


c. scale


d. legend - ANSWER-a. sheet title




QUESTION: To avoid confusion the letters I, O, and Q and the numbers 1 and 0 are omitted

from the


a. title block


b. NTS drawings


c. gridline system


d. contour lines - ANSWER-c. gridline system




1

, Page 2 of 30




QUESTION: To clarify information that cannot be shown on the drawings, the architectural and

engineering firm will prepare


a. a change order


b. a proposal


c. specifications


d. contracts - ANSWER-c. specifications or "Specs" come in a book format and are used to clarify

information that cannot be shown on the drawings.




QUESTION: The architect's scale is used for drawing


a. cut lines


b. floor plans


c. plot plans


d. specifications - ANSWER-b. floor plans




QUESTION: Information about the structure or assembly is provided in the




2

, Page 3 of 30


a. legend


b. border


c. title block


d. drawing area - ANSWER-c. title block




QUESTION: A keynote is a number or letter that is used with a leader and arrowhead to identify

a specific object; it usually appears in


a. block letters


b. a square or circle


c. the upper right-hand corner


d. the upper left-hand corner - ANSWER-b. a square or circle




Q; The identification of lines and other symbols on a construction drawing is called the


a. index


b. title block


c. legend
