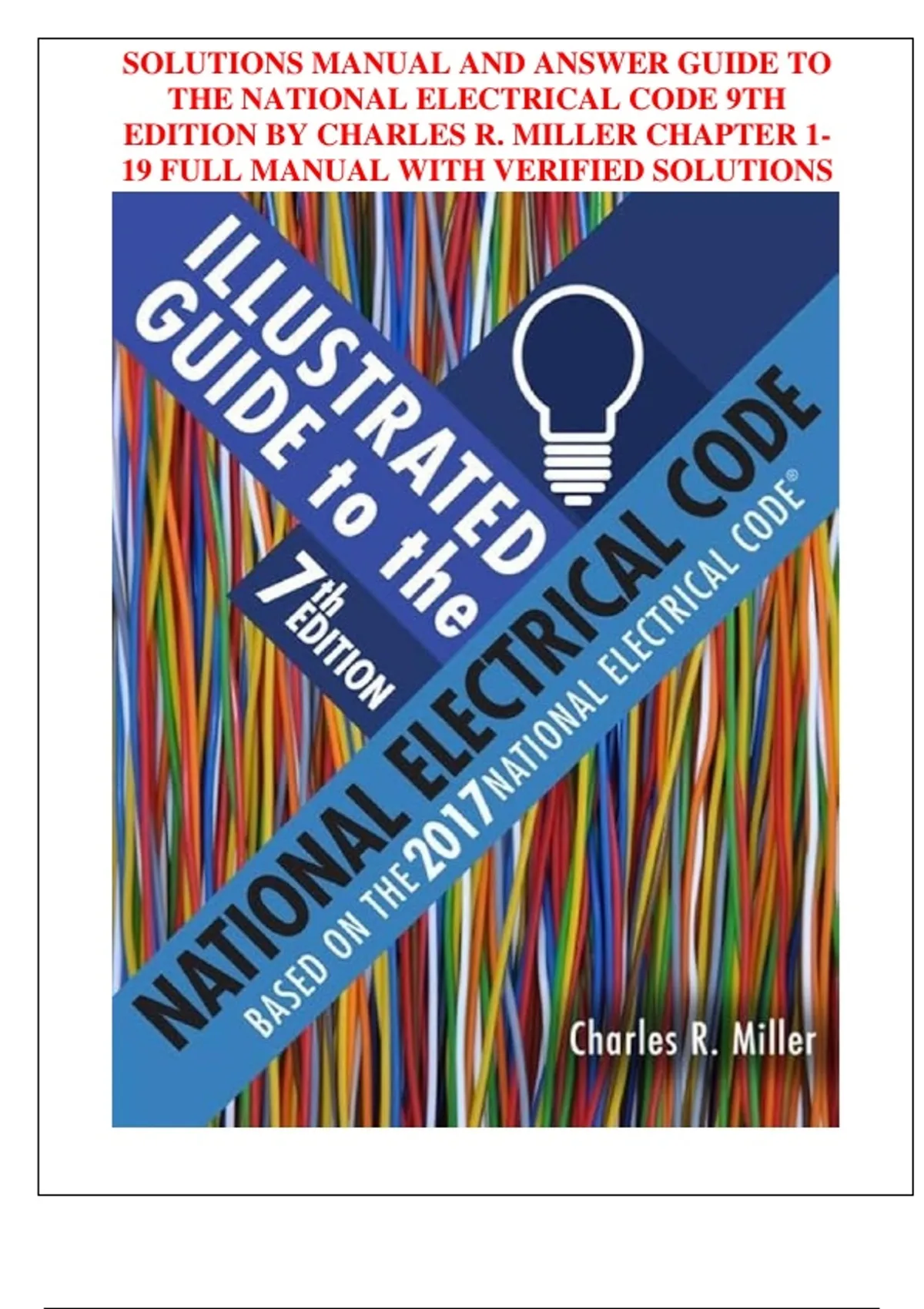

Solution Manual and Answer Guide for Illustrated Guide to the National Electrical Code 7th Edition by Charles Miller

SOLUTIONS MANUAL AND ANSWER GUIDE TO
THE NATIONAL ELECTRICAL CODE 9TH
EDITION BY CHARLES R. MILLER CHAPTER 1-
19 FULL MANUAL WITH VERIFIED SOLUTIONS

,1|Page


SOLUTIONS MANUAL AND ANSWER GUIDE TO THE
NATIONAL ELECTRICAL CODE 9TH EDITION BY
CHARLES R. MILLER CHAPTER 1-19 FULL MANUAL
WITH VERIFIED SOLUTIONS
National Electrical Code 1 Competency Tests
Section 1 Foundational Provisions
Unit 1 Introduction to the National Electrical Code Unit 2 Definitions
Unit 3 Boxes and Enclosures Unit 4 Cables
Unit 5 Raceways and Conductors


Section 2 One-Family Dwellings Unit 6 General Provisions Unit 7 Specific Provisions Unit 8
Load Calculations
Unit 9 Service and Electrical Equipment


Section 3 Multifamily Dwellings
Unit 10 Comprehensive Provisions Unit 11 Load Calculations
Unit 12 General Provisions


Section 4 Commercial Locations
Unit 13 Non-dwelling Load Calculations Unit 14 Services, Feeders, and Equipment Unit 15
Hazardous (Classified) Locations


Section 5 Special Occupancies, Areas, and Equipment Unit 16 Health Care
Unit 17 Industrial Locations Unit 18 Special Occupancies Unit 19 Specific Equipment


Extra Study Questions

,2|Page




Unit 1 Introduction to the National Electrical Code Unit 2 Definitions
1. The National Fire Protection Association has acted as sponsor of the National Electrical
Code since .
1911 (Pg.2)


2. Informative Annex provides a list of product safety standards used for product listing
where that listing is required by the NEC.
Informative Annex A (NEC 70-710)


3. Which chapters in the NEC apply generally to all installations?
Chapter 1 through 4 apply to all electrical installations (Pg.5)


4. Every three years, the National Electrical code is revised, but the Code has only been on a
three-year cycle since .
1975 (Pg.2)


5. The purpose of the National Electrical Code is the practical safeguarding of
form hazards arising from the use of electricity.
Persons and Property (Pg.2)


6. The original Code document was developed in as a result of the united efforts of
various insurance, electrical, architectural, and allied interests.
1897 (Pg.2)


7. Informative annexes are not part of the requirements of the NEC but are included for
only.
Informational Notes (Pg.5)


8. What city was home to the first central-station electric generating plant developed by
Thomas A. Edison?
New York City (Pg. 2)

, 3|Page




9. Chapter consists of tables that are applicable as referenced.
9 (Pg.5)


10. In the NEC, UL is the abbreviation for .
Underwriters Laboratories, Inc. (Pg.7)


11. Listed or labeled equipment shall be installed and used in accordance with any
included in the listing or labeling.
Instructions (Pg. 6) (NEC 110.3 (B)).


Unit 2


1. An branch circuit supplies two or more receptacles or outlets for lighting and
appliances.
General Purpose (Pg. 16)


2. is the largest amount of current capable of being delivered at a point on the electrical
system during a shout-circuit condition.
Available fault current (Pg.20)


3. An branch circuit consists of two or more ungrounded conductors having a
potential difference between them, and a grounded conductor having equal potential
difference between it and each ungrounded conductor of the circuit and that is connected
to the neutral or grounded conductor of the system.
Multiwire (Pg.16)


4. An intermittent operation in which load conditions are regularly recurrent is the definition
of .
Periodic Duty (NEC 70-34)


5. The is the connection between the grounded-circuit conductor and the equipment
grounding conductor at the service.
Main bonding jumper (Pg.14)
