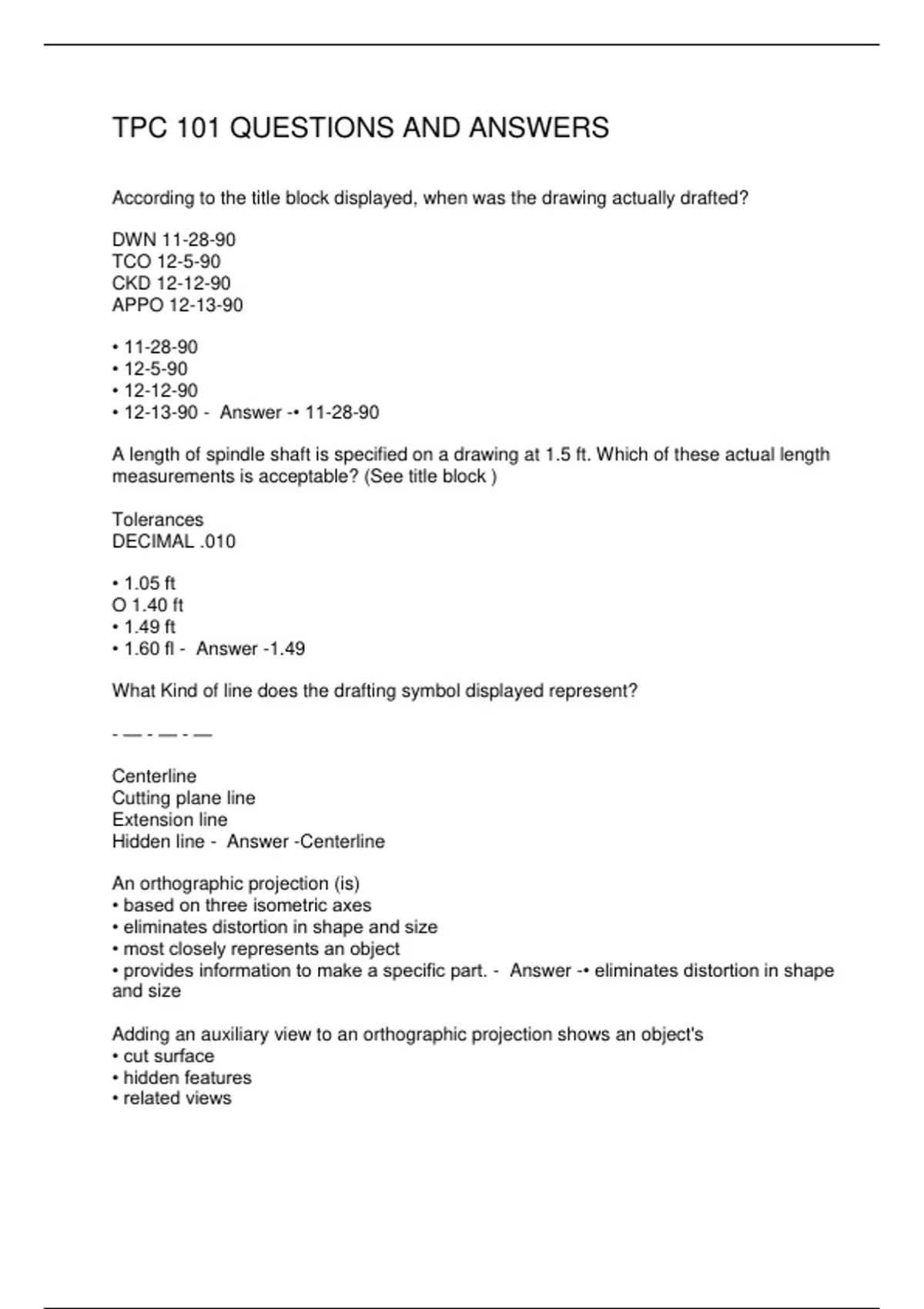

TPC 101 QUESTIONS AND ANSWERS
According to the title block displayed, when was the drawing actually drafted?
DWN 11-28-90
TCO 12-5-90
CKD 12-12-90
APPO 12-13-90
• 11-28-90
• 12-5-90
• 12-12-90
• 12-13-90 - Answer -• 11-28-90
A length of spindle shaft is specified on a drawing at 1.5 ft. Which of these actual length
measurements is acceptable? (See title block )
Tolerances
DECIMAL .010
• 1.05 ft
O 1.40 ft
• 1.49 ft
• 1.60 fl - Answer -1.49
What Kind of line does the drafting symbol displayed represent?
-—-—-—
Centerline
Cutting plane line
Extension line
Hidden line - Answer -Centerline
An orthographic projection (is)
• based on three isometric axes
• eliminates distortion in shape and size
• most closely represents an object
• provides information to make a specific part. - Answer -• eliminates distortion in shape
and size
Adding an auxiliary view to an orthographic projection shows an object's
• cut surface
• hidden features
• related views
, • true shape - Answer -true shape
Which of the six simple machines is a "continuous lever" with equal arms?
• Inclined plane:
• Pulley
• Wedge
• Wheel and axie - Answer -Pulley
In the specification 10-32 NC-1B, the screw has a ____ fit and a ____ handed thread
• loose, left
• loose, right
• tight; left
O tight, right - Answer -• loose, right
Which of the following is a permanent fastener?
• Bolt
• Machine screw
• Pin
• Rivet - Answer -Rivet
Sheet metal and _____ screws have threads that taper to a point.
• bolt
• knuckie
• machine:
• wood - Answer -Wood
Symbolic thread drawings include detailed, schematic and
• isometric:
• perspective
• pictorial:
• simplified - Answer -simplified
A drawing that shows all the parts separated from one another is called a(n)
Blueprint
• exploded view
• orthographic projection.
• schematic. - Answer -• exploded view
On a lathe, the top and the swivel are the two main parts of a
• clutch-brake control
• compound rest
• headstock linkage
• lathe - Answer -compound rest
