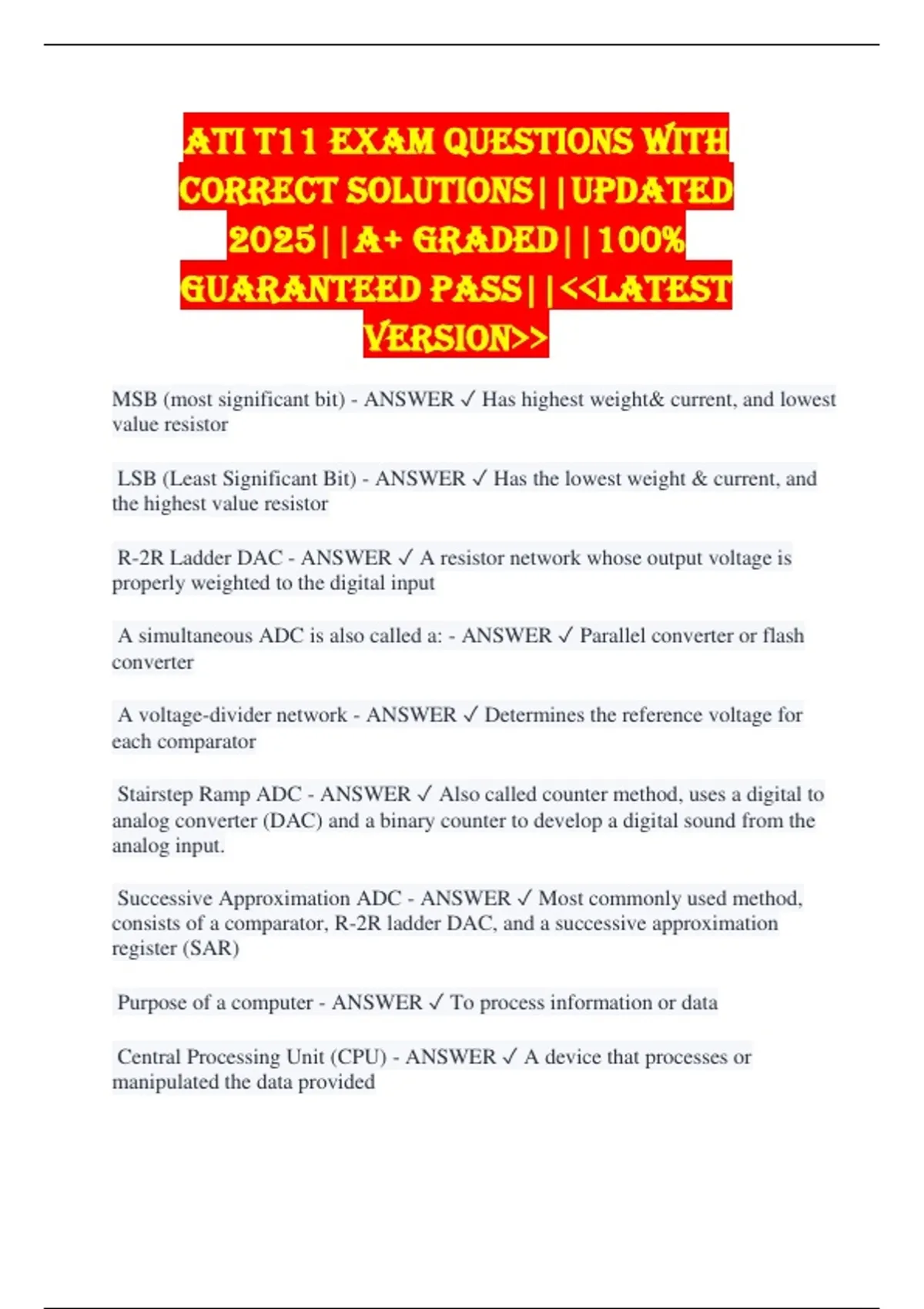

ATI T11 EXAM QUESTIONS WITH
CORRECT SOLUTIONS||UPDATED
2025||A+ GRADED||100%
GUARANTEED PASS||<<LATEST
VERSION>>
MSB (most significant bit) - ANSWER ✓ Has highest weight& current, and lowest
value resistor
LSB (Least Significant Bit) - ANSWER ✓ Has the lowest weight & current, and
the highest value resistor
R-2R Ladder DAC - ANSWER ✓ A resistor network whose output voltage is
properly weighted to the digital input
A simultaneous ADC is also called a: - ANSWER ✓ Parallel converter or flash
converter
A voltage-divider network - ANSWER ✓ Determines the reference voltage for
each comparator
Stairstep Ramp ADC - ANSWER ✓ Also called counter method, uses a digital to
analog converter (DAC) and a binary counter to develop a digital sound from the
analog input.
Successive Approximation ADC - ANSWER ✓ Most commonly used method,
consists of a comparator, R-2R ladder DAC, and a successive approximation
register (SAR)
Purpose of a computer - ANSWER ✓ To process information or data
Central Processing Unit (CPU) - ANSWER ✓ A device that processes or
manipulated the data provided
