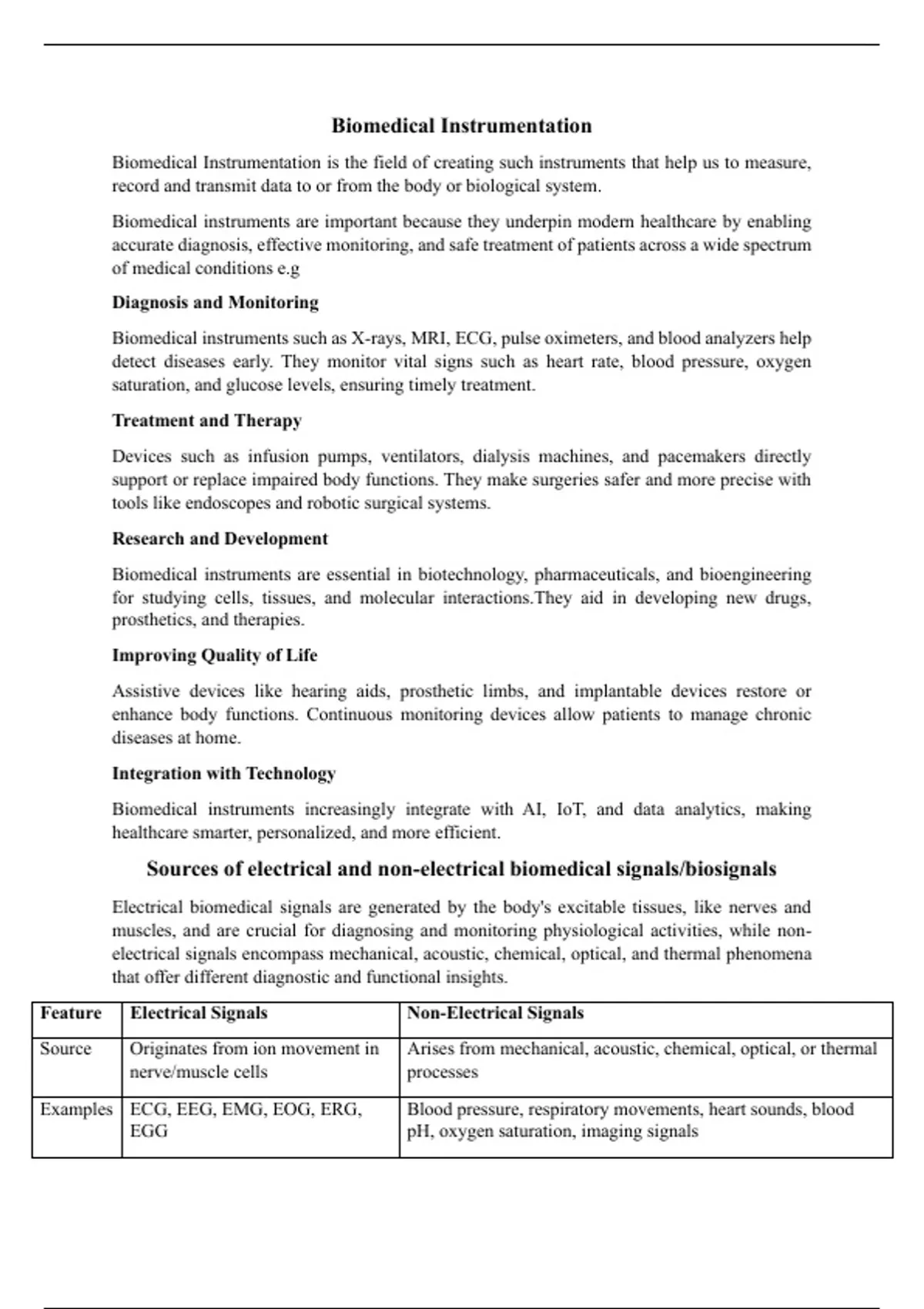

Biomedical Instrumentation
Biomedical Instrumentation is the field of creating such instruments that help us to measure,
record and transmit data to or from the body or biological system.
Biomedical instruments are important because they underpin modern healthcare by enabling
accurate diagnosis, effective monitoring, and safe treatment of patients across a wide spectrum
of medical conditions e.g
Diagnosis and Monitoring
Biomedical instruments such as X-rays, MRI, ECG, pulse oximeters, and blood analyzers help
detect diseases early. They monitor vital signs such as heart rate, blood pressure, oxygen
saturation, and glucose levels, ensuring timely treatment.
Treatment and Therapy
Devices such as infusion pumps, ventilators, dialysis machines, and pacemakers directly
support or replace impaired body functions. They make surgeries safer and more precise with
tools like endoscopes and robotic surgical systems.
Research and Development
Biomedical instruments are essential in biotechnology, pharmaceuticals, and bioengineering
for studying cells, tissues, and molecular interactions.They aid in developing new drugs,
prosthetics, and therapies.
Improving Quality of Life
Assistive devices like hearing aids, prosthetic limbs, and implantable devices restore or
enhance body functions. Continuous monitoring devices allow patients to manage chronic
diseases at home.
Integration with Technology
Biomedical instruments increasingly integrate with AI, IoT, and data analytics, making
healthcare smarter, personalized, and more efficient.
Sources of electrical and non-electrical biomedical signals/biosignals
Electrical biomedical signals are generated by the body's excitable tissues, like nerves and
muscles, and are crucial for diagnosing and monitoring physiological activities, while non-
electrical signals encompass mechanical, acoustic, chemical, optical, and thermal phenomena
that offer different diagnostic and functional insights.
Feature Electrical Signals Non-Electrical Signals
Source Originates from ion movement in Arises from mechanical, acoustic, chemical, optical, or thermal
nerve/muscle cells processes
Examples ECG, EEG, EMG, EOG, ERG, Blood pressure, respiratory movements, heart sounds, blood
EGG pH, oxygen saturation, imaging signals
,Detection Electrodes, differential amplifiers Pressure transducers, microphones, spectrophotometers,
chemical sensors, imaging devices
Basic Medical Instrumentation System
A basic medical instrumentation system works by detecting, measuring, and displaying
physiological signals from the human body using well-defined stages. Each component has a
specific role, contributing to accurate data acquisition and processing for diagnostic,
monitoring, or therapeutic purposes.
The main components are:
• Measurand/Subject (human being)
• Stimulus
• Sensor/Transducer
• Signal conditioning equipment
• Display equipment
• Recording data processing unit
• Control device
Measurand
The measurand is the physical quantity or condition being measured from the body, such as
temperature, blood pressure, or electrical potentials such as ECG signals.
Stimulus
Type of bio signal or the response to some form of external stimulus is required
Sensor/Transducer
This component interfaces directly with the human body. It converts the physiological event
(such as temperature or electrical activity) into an electrical signal that can be further processed.
Signal Conditioner
The raw electrical signal from the sensor is usually small and noisy. Signal conditioning
includes amplification, filtering, and sometimes analog-to-digital conversion. The objective is
to change the signal readable and suitable for analysis or display.
Display/Recorder
The conditioned signal is shown to users through various formats. This could be an analog
meter, a digital readout, or a graphical display. It might also include systems for recording and
storing data for later review.
Processor/Controller (optional)
, Some systems include a processor for advanced analysis, control functions, or decision-
making, such as calculating trends or activating alarms based on certain thresholds.
Example
For an ECG machine, electrodes (sensors) on the skin pick up heart electrical activity
(measurand), convert it to electrical signals, and send it to a signal conditioner for amplification
and filtering. Finally, the processed signal is displayed graphically or numerically to the
healthcare professional for interpretation.
Block diagram of Basic Medical Instrumentation System:
Key specifications required for designing a medical instrument
When designing a medical instrument, engineers must consider certain key specifications to
ensure safety, accuracy, and usability.
1. Accuracy & Precision: Accuracy is the degree to which a reading deviates from an
absolute value/true value. Precision is the degree to which a reading deviates from the
mean of a series of readings taken under identical conditions. The instruments must
provide reliable and repeatable measurements since medical decisions depend on data.
