1

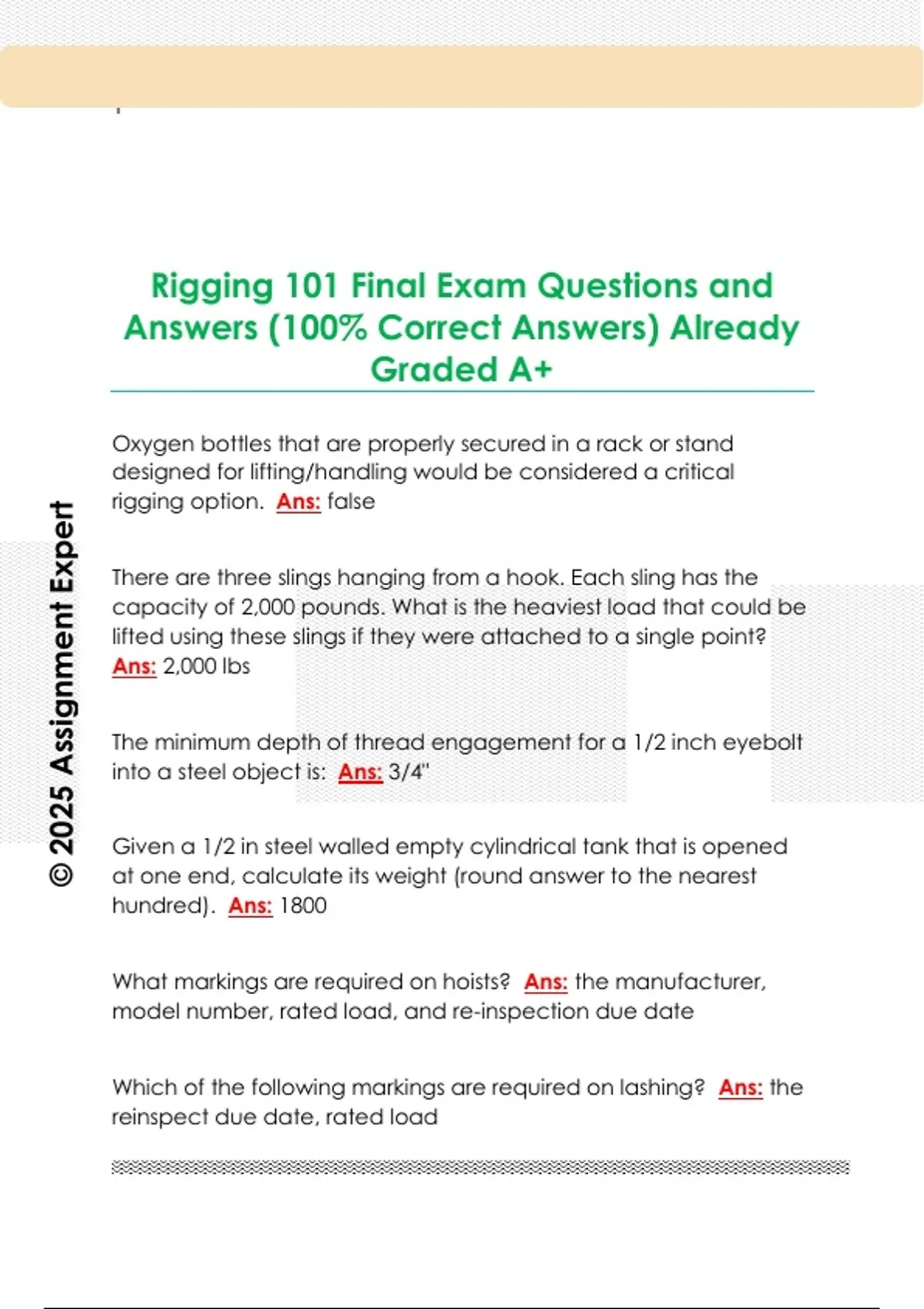

Rigging 101 Final Exam Questions and
Answers (100% Correct Answers) Already
Graded A+
Oxygen bottles that are properly secured in a rack or stand
designed for lifting/handling would be considered a critical
rigging option. Ans: false
© 2025 Assignment Expert
There are three slings hanging from a hook. Each sling has the
capacity of 2,000 pounds. What is the heaviest load that could be
Guru01 - Stuvia
lifted using these slings if they were attached to a single point?
Ans: 2,000 lbs
The minimum depth of thread engagement for a 1/2 inch eyebolt
into a steel object is: Ans: 3/4"
Given a 1/2 in steel walled empty cylindrical tank that is opened
at one end, calculate its weight (round answer to the nearest
hundred). Ans: 1800
What markings are required on hoists? Ans: the manufacturer,
model number, rated load, and re-inspection due date
Which of the following markings are required on lashing? Ans: the
reinspect due date, rated load
, 2
A motor that weighs over 80 of the capacity of the rigging gear
used in the rigging operation is considered a critical rigging
operation is considered a critical rigging operation. Ans: false
Increasing the sling angle from horizontal _______ the stress in the
sling. Ans: decreases
The area of this triangle with dimensions given in feet is: Ans: 24
© 2025 Assignment Expert
sqft
What is the minimum grade of chain required for chain slings?
Ans: grade 80
Guru01 - Stuvia
Two people should be used to pull the hand chain of a manual
chain hoist when it gets too hard for on person to pull. Ans: false
Sling angle stress could contribute to an overload even if the slings
selected had enough capacity to carry the total load weight.
Ans: true
Which of the following attachment points can be used at full
capacity when pulled at any angle from vertical? Ans: swivel
hoist rings
To find sling angle stress... Ans: multiply the weight in the
attachment point with the angle factor
Rigging 101 Final Exam Questions and
Answers (100% Correct Answers) Already
Graded A+
Oxygen bottles that are properly secured in a rack or stand
designed for lifting/handling would be considered a critical
rigging option. Ans: false
© 2025 Assignment Expert
There are three slings hanging from a hook. Each sling has the
capacity of 2,000 pounds. What is the heaviest load that could be
Guru01 - Stuvia
lifted using these slings if they were attached to a single point?
Ans: 2,000 lbs
The minimum depth of thread engagement for a 1/2 inch eyebolt
into a steel object is: Ans: 3/4"
Given a 1/2 in steel walled empty cylindrical tank that is opened
at one end, calculate its weight (round answer to the nearest
hundred). Ans: 1800
What markings are required on hoists? Ans: the manufacturer,
model number, rated load, and re-inspection due date
Which of the following markings are required on lashing? Ans: the
reinspect due date, rated load
, 2
A motor that weighs over 80 of the capacity of the rigging gear
used in the rigging operation is considered a critical rigging
operation is considered a critical rigging operation. Ans: false
Increasing the sling angle from horizontal _______ the stress in the
sling. Ans: decreases
The area of this triangle with dimensions given in feet is: Ans: 24
© 2025 Assignment Expert
sqft
What is the minimum grade of chain required for chain slings?
Ans: grade 80
Guru01 - Stuvia
Two people should be used to pull the hand chain of a manual
chain hoist when it gets too hard for on person to pull. Ans: false
Sling angle stress could contribute to an overload even if the slings
selected had enough capacity to carry the total load weight.
Ans: true
Which of the following attachment points can be used at full
capacity when pulled at any angle from vertical? Ans: swivel
hoist rings
To find sling angle stress... Ans: multiply the weight in the
attachment point with the angle factor
