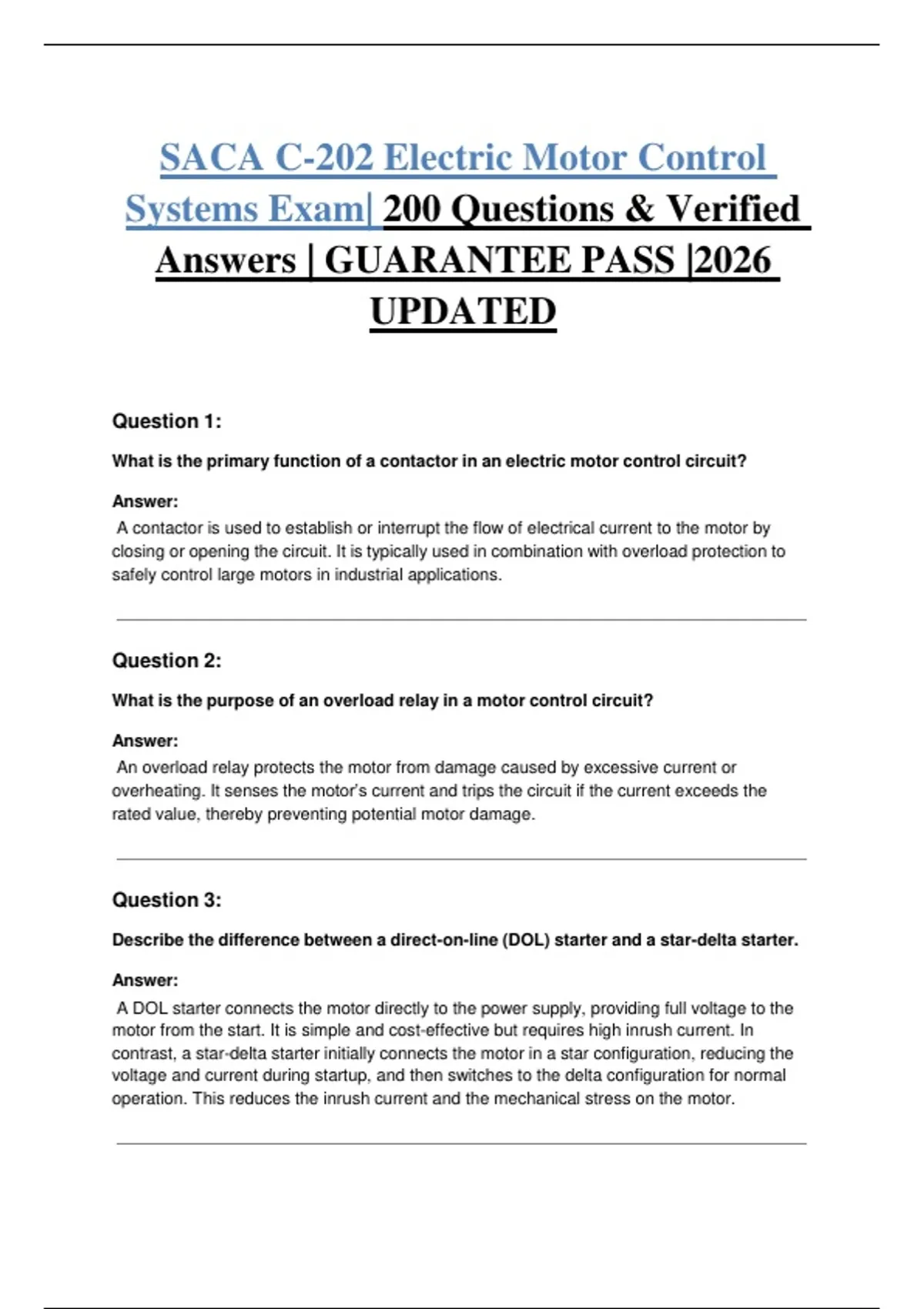

SACA C-202 Electric Motor Control
Systems Exam| 200 Questions & Verified
Answers | GUARANTEE PASS |2026
UPDATED
Question 1:
What is the primary function of a contactor in an electric motor control circuit?
Answer:
A contactor is used to establish or interrupt the flow of electrical current to the motor by
closing or opening the circuit. It is typically used in combination with overload protection to
safely control large motors in industrial applications.
Question 2:
What is the purpose of an overload relay in a motor control circuit?
Answer:
An overload relay protects the motor from damage caused by excessive current or
overheating. It senses the motor’s current and trips the circuit if the current exceeds the
rated value, thereby preventing potential motor damage.
Question 3:
Describe the difference between a direct-on-line (DOL) starter and a star-delta starter.
Answer:
A DOL starter connects the motor directly to the power supply, providing full voltage to the
motor from the start. It is simple and cost-effective but requires high inrush current. In
contrast, a star-delta starter initially connects the motor in a star configuration, reducing the
voltage and current during startup, and then switches to the delta configuration for normal
operation. This reduces the inrush current and the mechanical stress on the motor.
,Question 4:
What is the function of a PLC (Programmable Logic Controller) in motor control
systems?
Answer:
A PLC automates the control of motors in a system by receiving input signals (e.g., from
sensors) and processing them through programmed logic to provide output signals that
control the motor’s operation. It can be used for complex motor control processes,
sequencing, and troubleshooting.
Question 5:
What is the significance of a VFD (Variable Frequency Drive) in motor control
systems?
Answer:
A VFD controls the speed and torque of an electric motor by adjusting the frequency and
voltage of the power supplied to the motor. This allows for precise motor speed control,
energy savings, and reduced wear and tear on mechanical parts. VFDs are commonly used
in applications requiring variable speeds, such as conveyors and pumps.
Question 6:
Explain the concept of braking in electric motor control systems.
Answer:
Braking in motor control systems refers to methods used to stop or decelerate the motor.
Common methods include dynamic braking, regenerative braking, and mechanical braking.
Dynamic braking dissipates energy in resistors, while regenerative braking feeds energy
back into the system. Mechanical braking involves physical devices like drum brakes or disc
brakes to stop the motor.
Question 7:
What is the difference between an asynchronous motor and a synchronous motor?
Answer:
An asynchronous (induction) motor operates with a rotor that turns at a speed slightly less
than the synchronous speed of the rotating magnetic field. A synchronous motor, on the
other hand, operates at the same speed as the magnetic field, achieving synchronous
speed. Synchronous motors are used when precise speed control is required, whereas
asynchronous motors are commonly used in general applications.
,Question 8:
How do you calculate the full-load current of a motor?
Answer:
The full-load current (FLC) of a motor can be calculated using the formula:
FLC=Motor Power (kW)×1000Voltage (V)×Efficiency×Power Factor\text{FLC} =
\frac{\text{Motor Power (kW)} \times 1000}{\text{Voltage (V)} \times \text{Efficiency} \times
\text{Power Factor}}FLC=Voltage (V)×Efficiency×Power FactorMotor Power (kW)×1000
Where the motor power is in kilowatts, voltage is in volts, efficiency is in decimal form, and
power factor is a unitless value (typically around 0.8 to 1).
Question 9:
What is the role of a fuse in an electric motor control circuit?
Answer:
A fuse protects the motor and circuit by disconnecting the power supply in the event of a
short circuit or an overload condition. It melts and breaks the circuit when excessive current
flows through, preventing damage to the equipment.
Question 10:
Explain the purpose of a motor starter in motor control systems.
Answer:
A motor starter is used to control the starting and stopping of a motor. It may include
components like contactors, overload relays, and switches to ensure that the motor operates
safely by preventing damage from overcurrent or overheating during startup.
Question 11:
What is a soft starter, and how does it function?
Answer:
A soft starter is an electronic device that gradually increases the motor voltage during
startup, reducing the inrush current and mechanical stress. It provides a smooth start and
prevents sudden jolts to the motor and the power supply.
Question 12:
, How Does An AC Motor Differ From A DC Motor In Terms Of Control Systems?
Answer:
AC Motors Use Alternating Current, And Their Speed Is Typically Controlled Using
Frequency Drives (VFDs) Or Variable Voltage Controls. DC Motors Use Direct Current, And
Their Speed Is Controlled By Adjusting The Voltage Or Current Supplied To The Motor, Often
Using Controllers Or PWM (Pulse-Width Modulation) Techniques.
Question 13:
What Is A Reverse Contactor, And When Is It Used?
Answer:
A Reverse Contactor Is Used In Motor Control Circuits To Reverse The Direction Of
Rotation Of An Electric Motor. By Switching The Phase Sequence (Reversing Two Of The
Three Phases In A Three-Phase Motor), It Changes The Direction Of The Motor's Rotation.
Question 14:
What Are The Two Types Of Motor Starters Used In Industrial
Settings? Answer:
The Two Main Types Of Motor Starters Are:
1. Manual Motor Starters – Require Human Intervention To Start Or Stop The Motor.
2. Automatic Motor Starters – Start And Stop The Motor Automatically Using
Timers, Sensors, Or Control Signals.
Question 15:
What Is An Interlock In A Motor Control Circuit, And Why Is It Important?
Answer:
An Interlock Is A Safety Feature That Ensures Certain Conditions Are Met Before The
Motor Can Operate. It Can Prevent Dangerous Situations, Such As Starting A Motor When It
Is Unsafe To Do So (E.G., When A Protective Cover Is Removed Or A Valve Is Open).
Question 16:
Systems Exam| 200 Questions & Verified
Answers | GUARANTEE PASS |2026
UPDATED
Question 1:
What is the primary function of a contactor in an electric motor control circuit?
Answer:
A contactor is used to establish or interrupt the flow of electrical current to the motor by
closing or opening the circuit. It is typically used in combination with overload protection to
safely control large motors in industrial applications.
Question 2:
What is the purpose of an overload relay in a motor control circuit?
Answer:
An overload relay protects the motor from damage caused by excessive current or
overheating. It senses the motor’s current and trips the circuit if the current exceeds the
rated value, thereby preventing potential motor damage.
Question 3:
Describe the difference between a direct-on-line (DOL) starter and a star-delta starter.
Answer:
A DOL starter connects the motor directly to the power supply, providing full voltage to the
motor from the start. It is simple and cost-effective but requires high inrush current. In
contrast, a star-delta starter initially connects the motor in a star configuration, reducing the
voltage and current during startup, and then switches to the delta configuration for normal
operation. This reduces the inrush current and the mechanical stress on the motor.
,Question 4:
What is the function of a PLC (Programmable Logic Controller) in motor control
systems?
Answer:
A PLC automates the control of motors in a system by receiving input signals (e.g., from
sensors) and processing them through programmed logic to provide output signals that
control the motor’s operation. It can be used for complex motor control processes,
sequencing, and troubleshooting.
Question 5:
What is the significance of a VFD (Variable Frequency Drive) in motor control
systems?
Answer:
A VFD controls the speed and torque of an electric motor by adjusting the frequency and
voltage of the power supplied to the motor. This allows for precise motor speed control,
energy savings, and reduced wear and tear on mechanical parts. VFDs are commonly used
in applications requiring variable speeds, such as conveyors and pumps.
Question 6:
Explain the concept of braking in electric motor control systems.
Answer:
Braking in motor control systems refers to methods used to stop or decelerate the motor.
Common methods include dynamic braking, regenerative braking, and mechanical braking.
Dynamic braking dissipates energy in resistors, while regenerative braking feeds energy
back into the system. Mechanical braking involves physical devices like drum brakes or disc
brakes to stop the motor.
Question 7:
What is the difference between an asynchronous motor and a synchronous motor?
Answer:
An asynchronous (induction) motor operates with a rotor that turns at a speed slightly less
than the synchronous speed of the rotating magnetic field. A synchronous motor, on the
other hand, operates at the same speed as the magnetic field, achieving synchronous
speed. Synchronous motors are used when precise speed control is required, whereas
asynchronous motors are commonly used in general applications.
,Question 8:
How do you calculate the full-load current of a motor?
Answer:
The full-load current (FLC) of a motor can be calculated using the formula:
FLC=Motor Power (kW)×1000Voltage (V)×Efficiency×Power Factor\text{FLC} =
\frac{\text{Motor Power (kW)} \times 1000}{\text{Voltage (V)} \times \text{Efficiency} \times
\text{Power Factor}}FLC=Voltage (V)×Efficiency×Power FactorMotor Power (kW)×1000
Where the motor power is in kilowatts, voltage is in volts, efficiency is in decimal form, and
power factor is a unitless value (typically around 0.8 to 1).
Question 9:
What is the role of a fuse in an electric motor control circuit?
Answer:
A fuse protects the motor and circuit by disconnecting the power supply in the event of a
short circuit or an overload condition. It melts and breaks the circuit when excessive current
flows through, preventing damage to the equipment.
Question 10:
Explain the purpose of a motor starter in motor control systems.
Answer:
A motor starter is used to control the starting and stopping of a motor. It may include
components like contactors, overload relays, and switches to ensure that the motor operates
safely by preventing damage from overcurrent or overheating during startup.
Question 11:
What is a soft starter, and how does it function?
Answer:
A soft starter is an electronic device that gradually increases the motor voltage during
startup, reducing the inrush current and mechanical stress. It provides a smooth start and
prevents sudden jolts to the motor and the power supply.
Question 12:
, How Does An AC Motor Differ From A DC Motor In Terms Of Control Systems?
Answer:
AC Motors Use Alternating Current, And Their Speed Is Typically Controlled Using
Frequency Drives (VFDs) Or Variable Voltage Controls. DC Motors Use Direct Current, And
Their Speed Is Controlled By Adjusting The Voltage Or Current Supplied To The Motor, Often
Using Controllers Or PWM (Pulse-Width Modulation) Techniques.
Question 13:
What Is A Reverse Contactor, And When Is It Used?
Answer:
A Reverse Contactor Is Used In Motor Control Circuits To Reverse The Direction Of
Rotation Of An Electric Motor. By Switching The Phase Sequence (Reversing Two Of The
Three Phases In A Three-Phase Motor), It Changes The Direction Of The Motor's Rotation.
Question 14:
What Are The Two Types Of Motor Starters Used In Industrial
Settings? Answer:
The Two Main Types Of Motor Starters Are:
1. Manual Motor Starters – Require Human Intervention To Start Or Stop The Motor.
2. Automatic Motor Starters – Start And Stop The Motor Automatically Using
Timers, Sensors, Or Control Signals.
Question 15:
What Is An Interlock In A Motor Control Circuit, And Why Is It Important?
Answer:
An Interlock Is A Safety Feature That Ensures Certain Conditions Are Met Before The
Motor Can Operate. It Can Prevent Dangerous Situations, Such As Starting A Motor When It
Is Unsafe To Do So (E.G., When A Protective Cover Is Removed Or A Valve Is Open).
Question 16:
