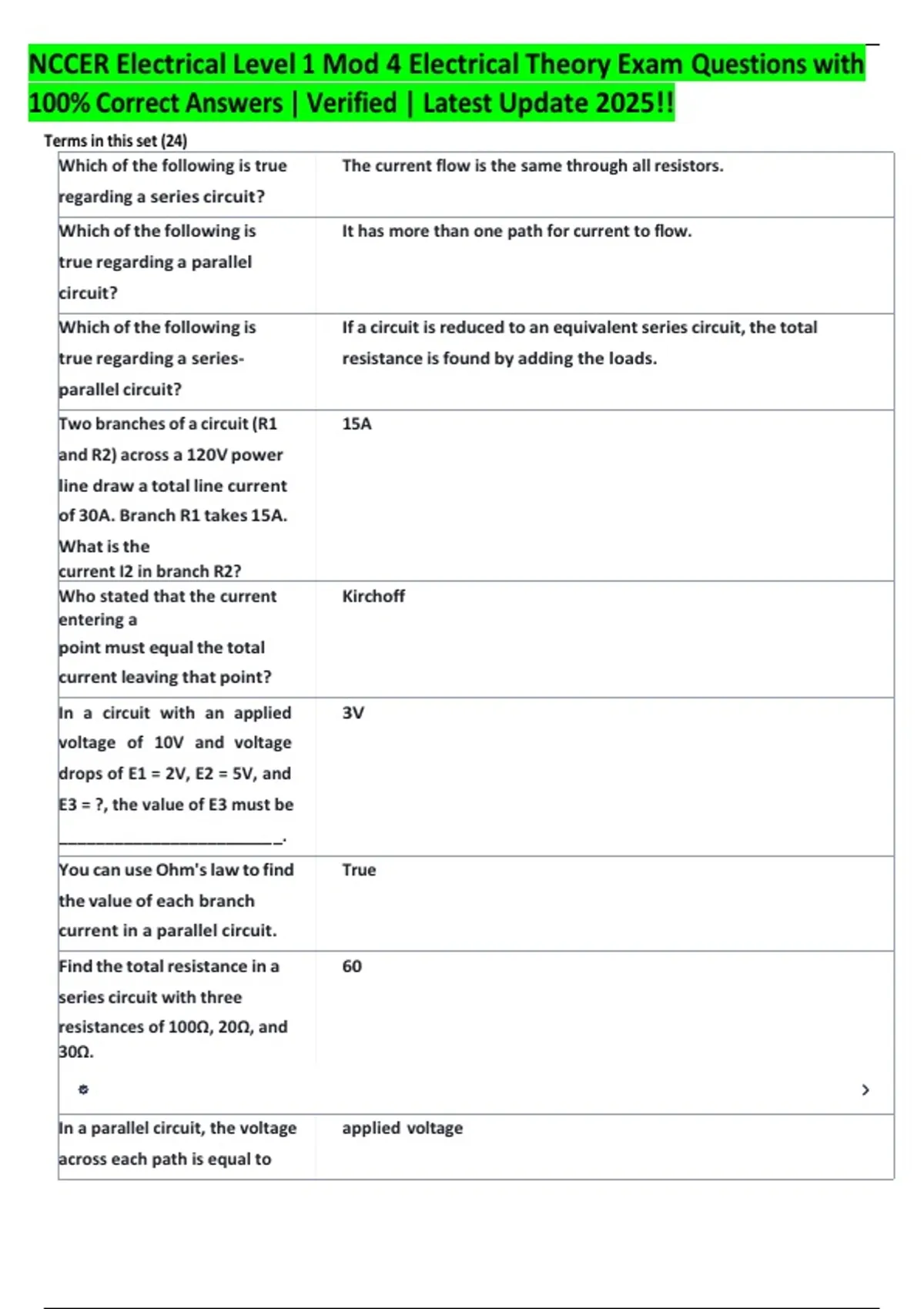

NCCER Electrical Level 1 Mod 4 Electrical Theory Exam Questions with
100% Correct Answers | Verified | Latest Update 2025!!
Terms in this set (24)
Which of the following is true The current flow is the same through all resistors.
regarding a series circuit?
Which of the following is It has more than one path for current to flow.
true regarding a parallel
circuit?
Which of the following is If a circuit is reduced to an equivalent series circuit, the total
true regarding a series- resistance is found by adding the loads.
parallel circuit?
Two branches of a circuit (R1 15A
and R2) across a 120V power
line draw a total line current
of 30A. Branch R1 takes 15A.
What is the
current I2 in branch R2?
Who stated that the current Kirchoff
entering a
point must equal the total
current leaving that point?
In a circuit with an applied 3V
voltage of 10V and voltage
drops of E1 = 2V, E2 = 5V, and
E3 = ?, the value of E3 must be
________________________.
You can use Ohm's law to find True
the value of each branch
current in a parallel circuit.
Find the total resistance in a 60
series circuit with three
resistances of 100Ω, 20Ω, and
30Ω.
In a parallel circuit, the voltage applied voltage
across each path is equal to
