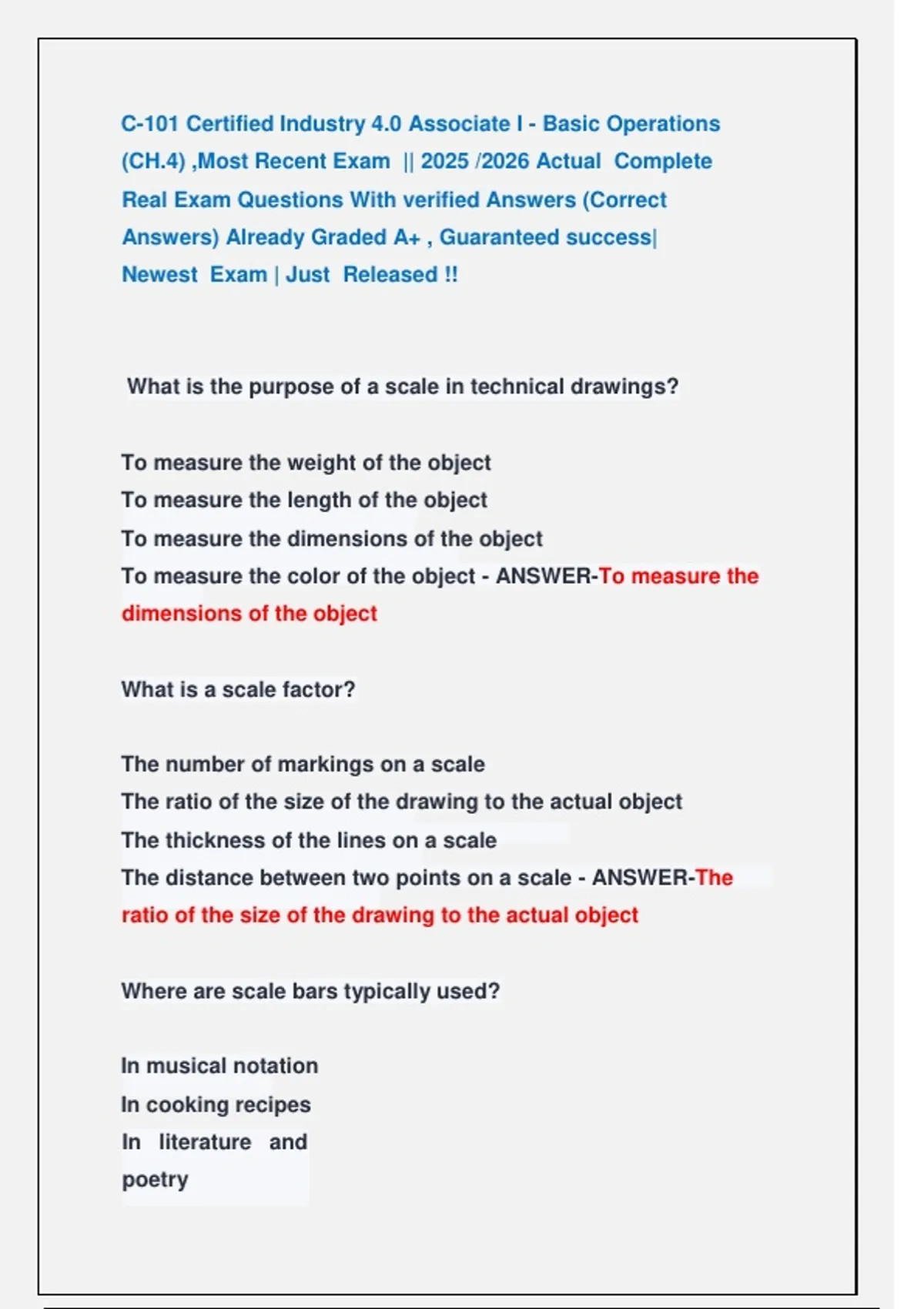

C-101 Certified Industry 4.0 Associate I - Basic Operations
(CH.4) ,Most Recent Exam || 2025 /2026 Actual Complete
Real Exam Questions With verified Answers (Correct
Answers) Already Graded A+ , Guaranteed success|
Newest Exam | Just Released !!
What is the purpose of a scale in technical drawings?
To measure the weight of the object
To measure the length of the object
To measure the dimensions of the object
To measure the color of the object - ANSWER-To measure the
dimensions of the object
What is a scale factor?
The number of markings on a scale
The ratio of the size of the drawing to the actual object
The thickness of the lines on a scale
The distance between two points on a scale - ANSWER-The
ratio of the size of the drawing to the actual object
Where are scale bars typically used?
In musical notation
In cooking recipes
In literature and
poetry
,In technical drawings and maps - ANSWER-In technical
drawings and maps
What is the scale of the drawing if: the
actual length of this is part is 300 mm (or
30cm)
the dimension shown by X on the drawing measures 100mm (or
10cm) - ANSWER-1:3
What is the purpose of a Tolerance Block in a technical
drawing?
To provide additional information or instructions related to the
drawing. To specify the allowable variation in dimensions and
other characteristics of the object or part being depicted in the
drawing. To record changes made to the drawing over time.
All of the above. - ANSWER-To specify the allowable variation
in dimensions and other characteristics of the object or part
being depicted in the drawing.
What is the purpose of a Change Block in a technical drawing?
All of the above.
To record changes made to the drawing over time.
To specify the allowable variation in dimensions and other
characteristics of the object or part being depicted in the
drawing.
To provide additional information or instructions related to the
drawing - ANSWER-To record changes made to the drawing
over time.
, What is the purpose of a Title Block in a technical drawing?
None of the above.
To specify the allowable variation in dimensions and other
characteristics of the object or part being depicted in the
drawing.
To provide important information about the drawing, such as
the name of the person or company who created it, the date it
was created, the drawing number, and any other relevant
information.
To provide additional information or instructions related to the
drawing. - ANSWER-To provide important information about the
drawing, such as the name of the person or company who
created it, the date it was created, the drawing number, and any
other relevant information.
What information is typically included in a Material Block of a
technical drawing?
The allowable range of variation for each dimension or feature
being specified.
The type of tolerance being used and the
tolerance zone.
None of the
above.
Information about the materials used in the object or part being
depicted in the drawing, such as the material type, material
grade, material specifications, material properties, and material
