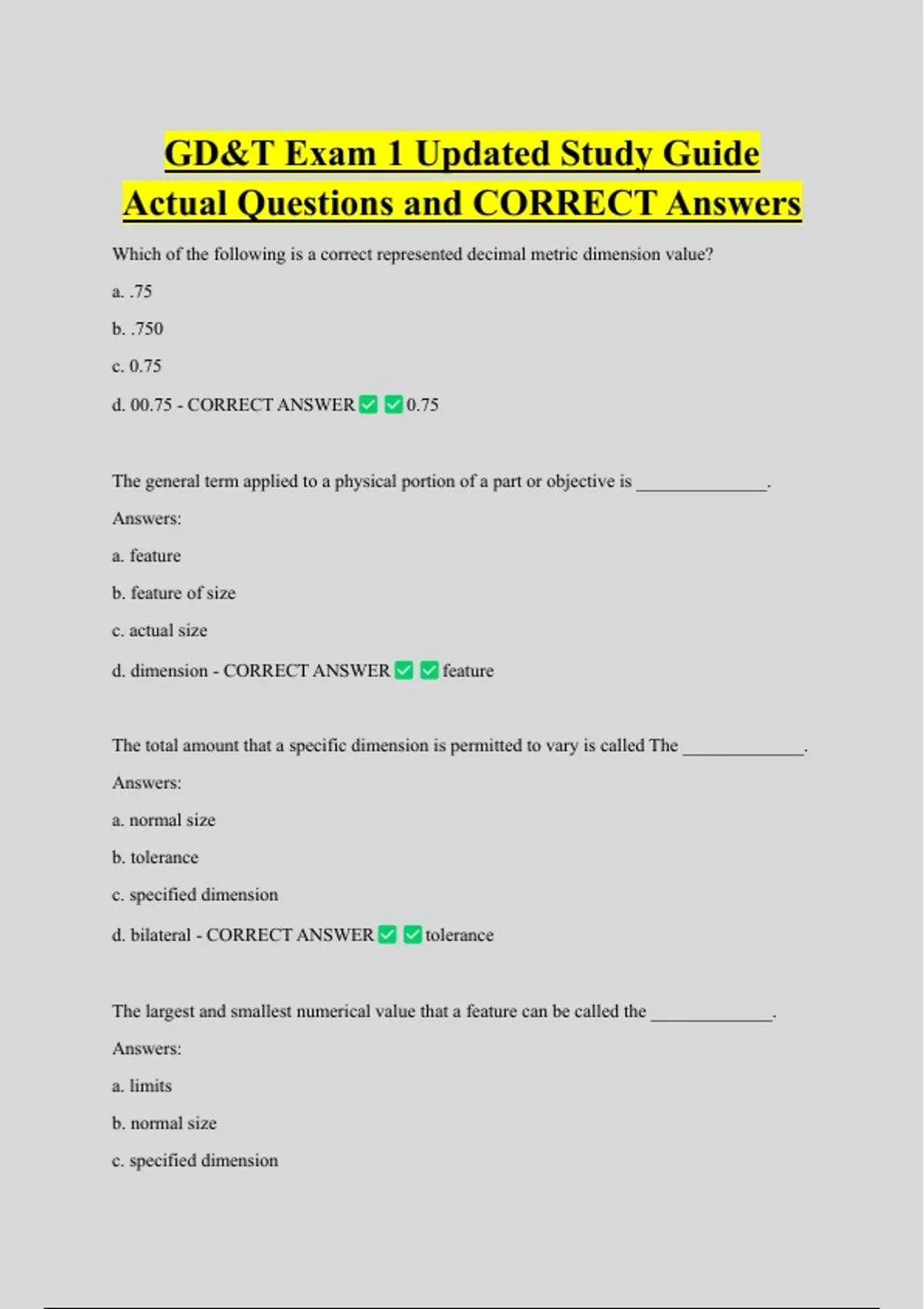

GD&T Exam 1 Updated Study Guide Actual Questions and CORRECT Answers

GD&T Exam 1 Updated Study Guide
Actual Questions and CORRECT Answers
Which of the following is a correct represented decimal metric dimension value?

a. .75

b. .750

c. 0.75

d. 00.75 - CORRECT ANSWER 0.75



The general term applied to a physical portion of a part or objective is ______________.
Answers:

a. feature

b. feature of size

c. actual size

d. dimension - CORRECT ANSWER feature



The total amount that a specific dimension is permitted to vary is called The _____________.

Answers:

a. normal size

b. tolerance

c. specified dimension

d. bilateral - CORRECT ANSWER tolerance



The largest and smallest numerical value that a feature can be called the _____________.

Answers:

a. limits

b. normal size
c. specified dimension

, d. tolerance - CORRECT ANSWER limits



A(n) ______________ is considered theoretically prefect in size, profile, orientation, or
location and is the basic from which variations are established.

Answers:

a. feature of size
b. actual size

c. normal size

d. basic dimension - CORRECT ANSWER basic dimension



The distance across a circle passing through the center is the _______________.
Answers:
a. radius

b. controlled radius

c. diameter

d. circumference - CORRECT ANSWER diameter



A tolerance that is permitted to increase or decrease in one direction is called
_______________.

Answers:

a. unilateral
b. bilateral

c. tolerance limits

d. specified dimension - CORRECT ANSWER unilateral



The condition where a feature of size contains the maximum amount of material within the
stated limits is the ________________.

Answers:

a. bilateral tolerance
b. free state condition
