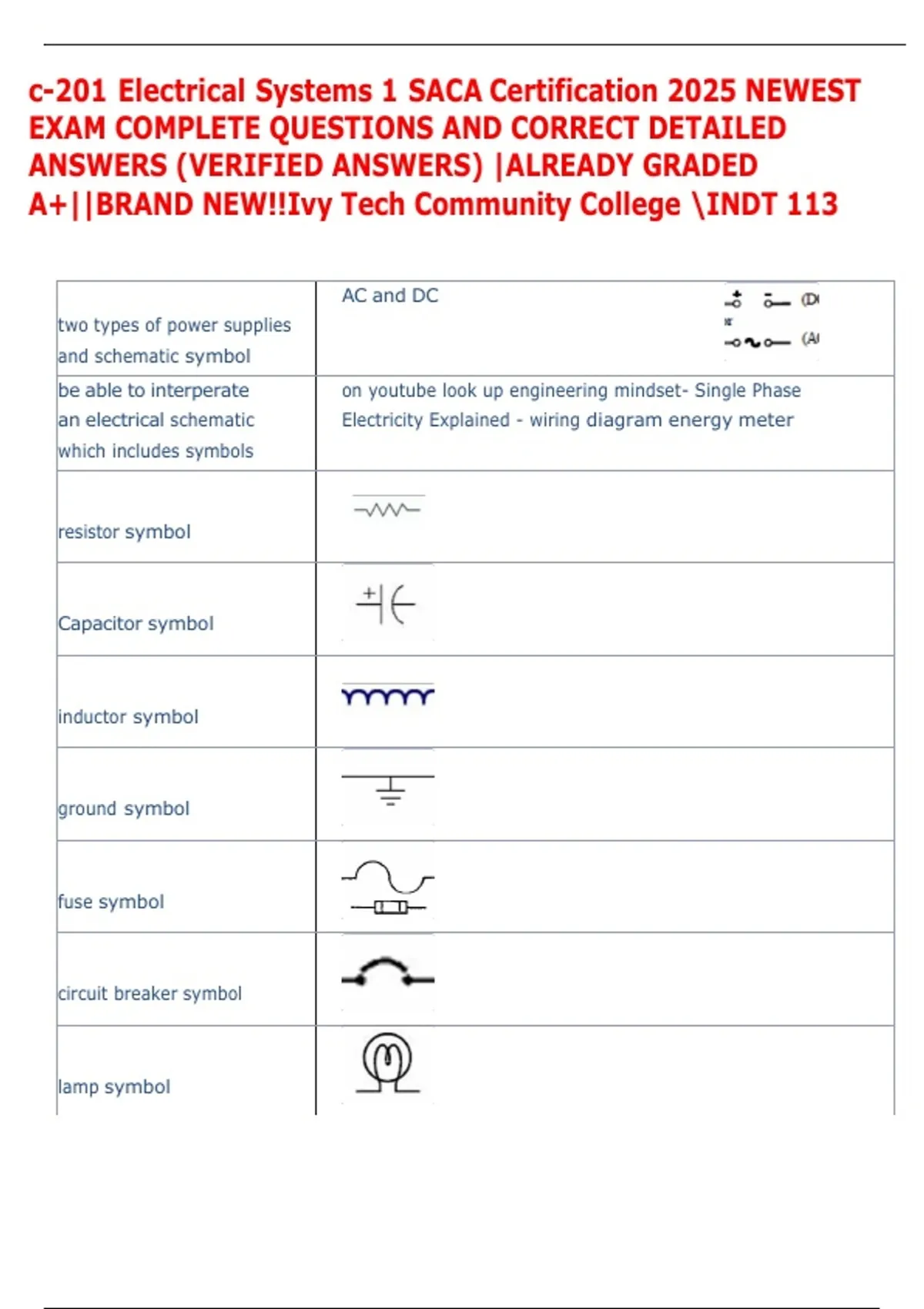

c-201 Electrical Systems 1 SACA Certification 2025 NEWEST
EXAM COMPLETE QUESTIONS AND CORRECT DETAILED
ANSWERS (VERIFIED ANSWERS) |ALREADY GRADED
A+||BRAND NEW!!Ivy Tech Community College \INDT 113
AC and DC
two types of power supplies
and schematic symbol
be able to interperate on youtube look up engineering mindset- Single Phase
an electrical schematic Electricity Explained - wiring diagram energy meter
which includes symbols
resistor symbol
Capacitor symbol
inductor symbol
ground symbol
fuse symbol
circuit breaker symbol
lamp symbol
, switch symbol
switch single pole double
throw symbol
normally open switch symbol
(bottom one)
normally closed switch symbol
transformer symbol
motor symbol
a type of manually-operated electrical switch that is used to
knife switch make and break
electrical circuits. It has a hinged blade that is used to
open and close the contacts of the switch, allowing
the flow of electricity to be controlled.
a type of manual switch operator that is actuated by pressing a
push button switch button. When the
button is pressed, the switch is turned on, and when it is
pressed again, the switch is turned off.
a type of manual switch operator that allows the user to select
one of several
selector switch different circuit paths or positions. It is typically
actuated by a lever or knob that can be rotated or
moved to different positions, each of which corresponds
to a different circuit path or function.
explain the function of five a passive electronic component that resists the flow of
types of output devices: electric current, reducing the voltage and current in a
resistor circuit.
