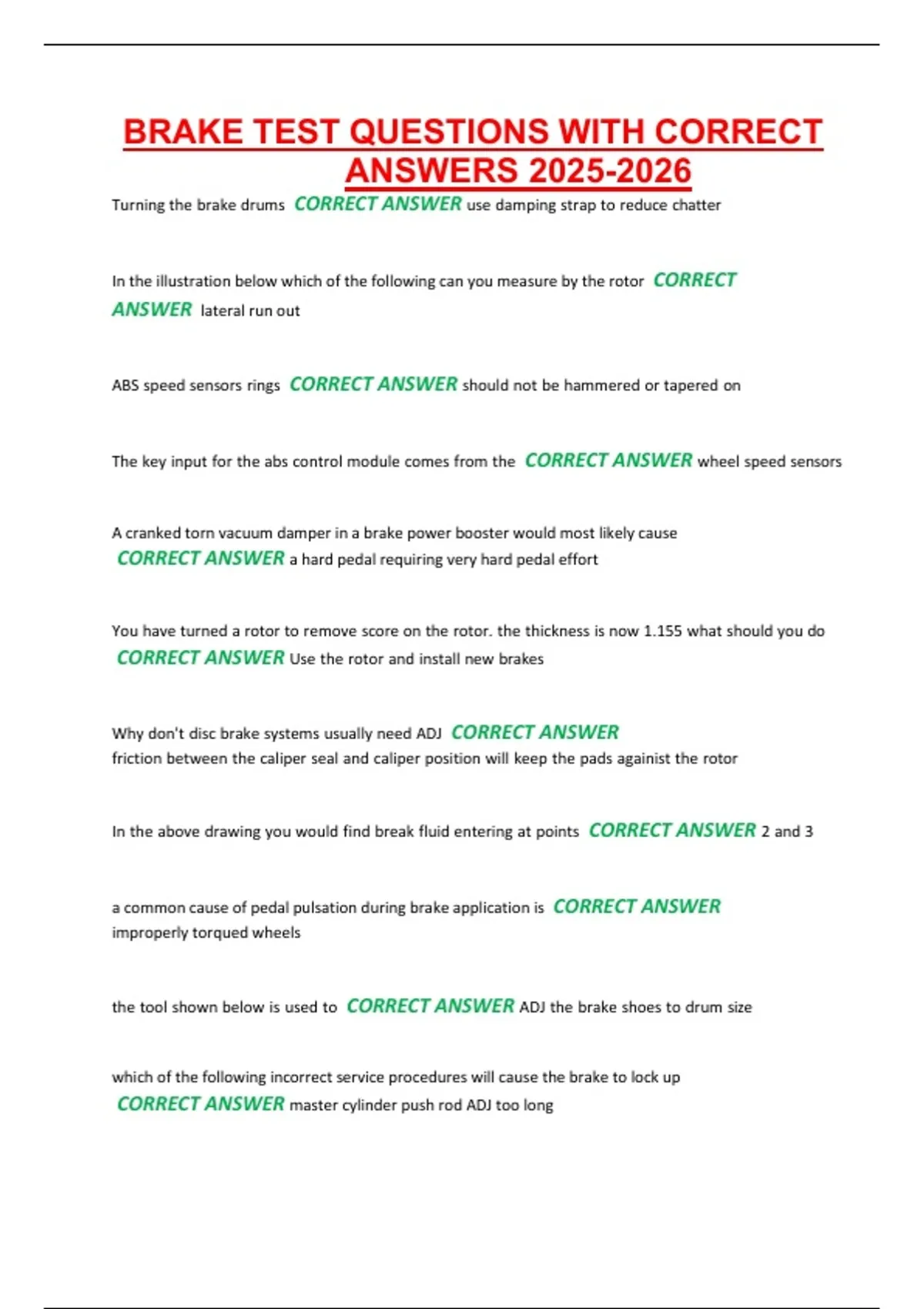

BRAKE TEST QUESTIONS WITH CORRECT
ANSWERS 2025-2026
Turning the brake drums CORRECT ANSWER use damping strap to reduce chatter
In the illustration below which of the following can you measure by the rotor CORRECT
ANSWER lateral run out
ABS speed sensors rings CORRECT ANSWER should not be hammered or tapered on
The key input for the abs control module comes from the CORRECT ANSWER wheel speed sensors
A cranked torn vacuum damper in a brake power booster would most likely cause
CORRECT ANSWER a hard pedal requiring very hard pedal effort
You have turned a rotor to remove score on the rotor. the thickness is now 1.155 what should you do
CORRECT ANSWER Use the rotor and install new brakes
Why don't disc brake systems usually need ADJ CORRECT ANSWER
friction between the caliper seal and caliper position will keep the pads againist the rotor
In the above drawing you would find break fluid entering at points CORRECT ANSWER 2 and 3
a common cause of pedal pulsation during brake application is CORRECT ANSWER
improperly torqued wheels
the tool shown below is used to CORRECT ANSWER ADJ the brake shoes to drum size
which of the following incorrect service procedures will cause the brake to lock up
CORRECT ANSWER master cylinder push rod ADJ too long
, Which of the fol;owing describes the correct sequence for bleeding brake lines on most split diagonal
CORRECT ANSWER
read the manufacturers recommendation, the procedure varies depending on the model
Which of the following is true about bleeding brake lines on most ABS equipment vechocles
CORRECT ANSWER most ABS brake lines can be bled like conventional
Upon inspecting brake fluid condition tech observes a diagram master cylinder cup swollen
CORRECT ANSWER petroleum produces appealed to the system
In disc brake assy the square cut seal is located CORRECT ANSWER In caliper piston bore
You are installing a set of brake shoe linings that are not the same length CORRECT ANSWER
smaller to the front of the car
After rebuilding a master cylinder the rod between the master cylinder and booster should be
CORRECT ANSWER ADJ properly
Which of the following should be used to check for rotor thickness variation CORRECT ANSWER
micrometer
Most anti-lock brake systems require the remove of the pressure modulator fuse when
CORRECT ANSWER none of the above
There is a scraping sound coming from the rear brake the sound stops when the brake is applied
CORRECT ANSWER a broken show hold down spieling or pin
You are installing a set of brake shoe linings not the same length as the secondary shoe
CORRECT ANSWER larger goes to the rear of the vehicle
On a single anchor due servo drum brake system, which shoe does the most braking
CORRECT ANSWER secondary shoe
