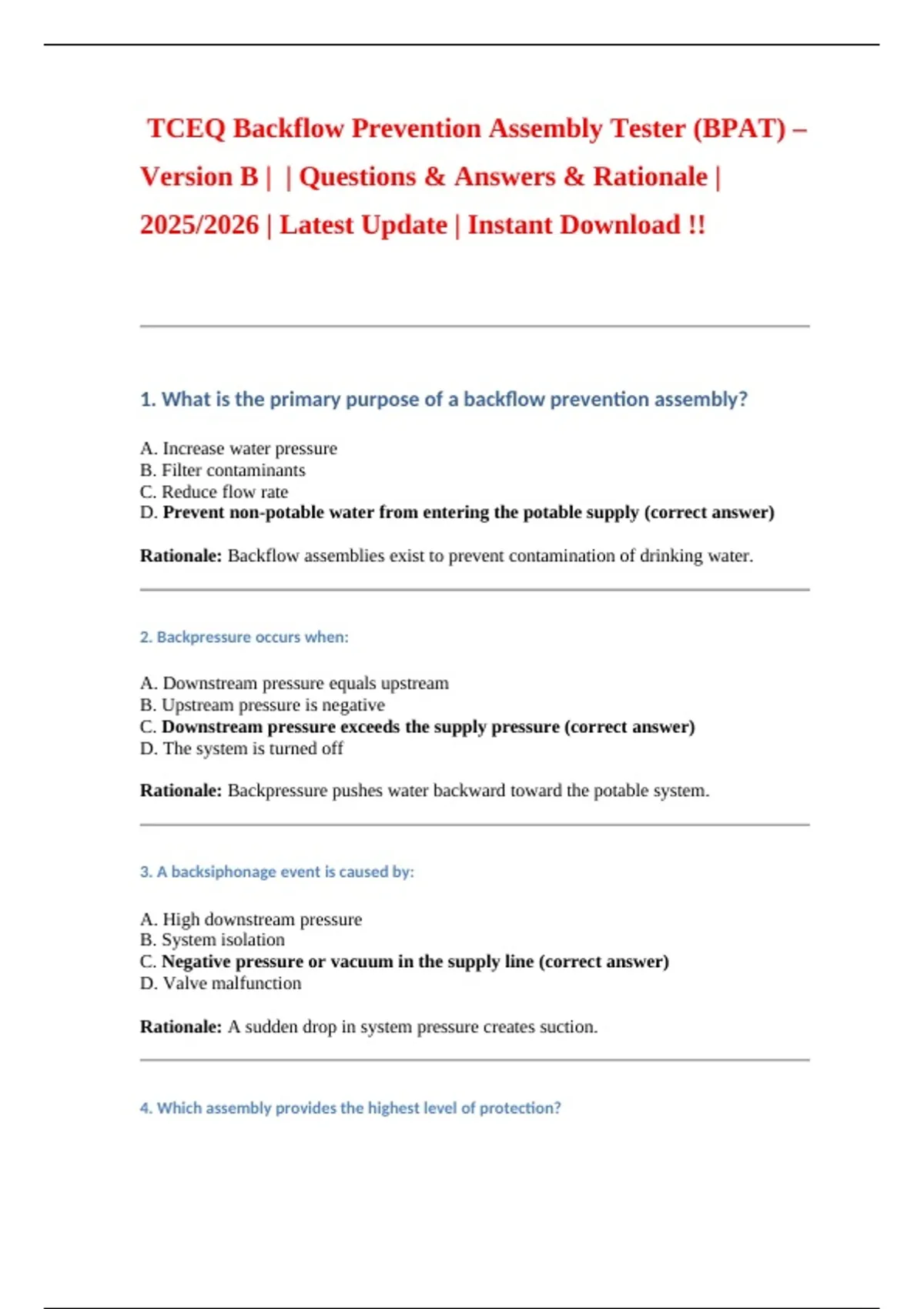

TCEQ Backflow Prevention Assembly Tester (BPAT) –
Version B | | Questions & Answers & Rationale |
2025/2026 | Latest Update | Instant Download !!
1. What is the primary purpose of a backflow prevention assembly?
A. Increase water pressure
B. Filter contaminants
C. Reduce flow rate
D. Prevent non-potable water from entering the potable supply (correct answer)
Rationale: Backflow assemblies exist to prevent contamination of drinking water.
2. Backpressure occurs when:
A. Downstream pressure equals upstream
B. Upstream pressure is negative
C. Downstream pressure exceeds the supply pressure (correct answer)
D. The system is turned off
Rationale: Backpressure pushes water backward toward the potable system.
3. A backsiphonage event is caused by:
A. High downstream pressure
B. System isolation
C. Negative pressure or vacuum in the supply line (correct answer)
D. Valve malfunction
Rationale: A sudden drop in system pressure creates suction.
4. Which assembly provides the highest level of protection?
,A. AVB
B. PVB
C. DCVA
D. RPBA (correct answer)
Rationale: RPBAs protect against both backpressure and backsiphonage, high hazard
conditions.
5. Which backflow device uses an air inlet valve?
A. Double check
B. RP assembly
C. Pressure vacuum breaker (PVB) (correct answer)
D. RP detector assembly
Rationale: PVBs rely on an air inlet valve to break siphon conditions.
6. An AVB is NOT allowed in which situation?
A. Irrigation
B. Hose bib
C. Chemical injector upstream
D. Continuous pressure applications (correct answer)
Rationale: AVBs cannot be under continuous pressure; they must drain between uses.
7. What component of an RPBA maintains the zone differential pressure?
A. Shutoff valve
B. Test cock
C. Air inlet
D. #1 check valve (correct answer)
Rationale: The #1 check establishes the pressure differential that triggers the relief valve.
8. The relief valve on an RPBA discharges water to:
A. Increase system pressure
B. Cool the assembly
, C. Release contaminated water entering the zone (correct answer)
D. Flush debris
Rationale: Relief discharge acts as an indicator of internal failure or pressure imbalance.
9. A DCVA protects against:
A. High hazard conditions
B. Backsiphonage only
C. Backpressure only
D. Low to moderate hazard conditions (correct answer)
Rationale: DCVAs are not approved for high hazard applications.
10. A pressure vacuum breaker must be installed:
A. Below grade
B. Level with the meter
C. 12 inches above the highest downstream outlet (correct answer)
D. Horizontal only
Rationale: Elevation ensures proper air inlet operation.
11. What happens if a PVB is installed below the required height?
A. It increases water pressure
B. It tests easier
C. It may fail to prevent backsiphonage (correct answer)
D. It reduces temperature variations
Rationale: The air inlet will not open properly if not elevated.
12. A spill-resistant vacuum breaker (SVB) is primarily used to:
A. Replace an RPBA
B. Reduce nuisance spillage during operation (correct answer)
C. Stop all leaks
D. Measure pressure
Version B | | Questions & Answers & Rationale |
2025/2026 | Latest Update | Instant Download !!
1. What is the primary purpose of a backflow prevention assembly?
A. Increase water pressure
B. Filter contaminants
C. Reduce flow rate
D. Prevent non-potable water from entering the potable supply (correct answer)
Rationale: Backflow assemblies exist to prevent contamination of drinking water.
2. Backpressure occurs when:
A. Downstream pressure equals upstream
B. Upstream pressure is negative
C. Downstream pressure exceeds the supply pressure (correct answer)
D. The system is turned off
Rationale: Backpressure pushes water backward toward the potable system.
3. A backsiphonage event is caused by:
A. High downstream pressure
B. System isolation
C. Negative pressure or vacuum in the supply line (correct answer)
D. Valve malfunction
Rationale: A sudden drop in system pressure creates suction.
4. Which assembly provides the highest level of protection?
,A. AVB
B. PVB
C. DCVA
D. RPBA (correct answer)
Rationale: RPBAs protect against both backpressure and backsiphonage, high hazard
conditions.
5. Which backflow device uses an air inlet valve?
A. Double check
B. RP assembly
C. Pressure vacuum breaker (PVB) (correct answer)
D. RP detector assembly
Rationale: PVBs rely on an air inlet valve to break siphon conditions.
6. An AVB is NOT allowed in which situation?
A. Irrigation
B. Hose bib
C. Chemical injector upstream
D. Continuous pressure applications (correct answer)
Rationale: AVBs cannot be under continuous pressure; they must drain between uses.
7. What component of an RPBA maintains the zone differential pressure?
A. Shutoff valve
B. Test cock
C. Air inlet
D. #1 check valve (correct answer)
Rationale: The #1 check establishes the pressure differential that triggers the relief valve.
8. The relief valve on an RPBA discharges water to:
A. Increase system pressure
B. Cool the assembly
, C. Release contaminated water entering the zone (correct answer)
D. Flush debris
Rationale: Relief discharge acts as an indicator of internal failure or pressure imbalance.
9. A DCVA protects against:
A. High hazard conditions
B. Backsiphonage only
C. Backpressure only
D. Low to moderate hazard conditions (correct answer)
Rationale: DCVAs are not approved for high hazard applications.
10. A pressure vacuum breaker must be installed:
A. Below grade
B. Level with the meter
C. 12 inches above the highest downstream outlet (correct answer)
D. Horizontal only
Rationale: Elevation ensures proper air inlet operation.
11. What happens if a PVB is installed below the required height?
A. It increases water pressure
B. It tests easier
C. It may fail to prevent backsiphonage (correct answer)
D. It reduces temperature variations
Rationale: The air inlet will not open properly if not elevated.
12. A spill-resistant vacuum breaker (SVB) is primarily used to:
A. Replace an RPBA
B. Reduce nuisance spillage during operation (correct answer)
C. Stop all leaks
D. Measure pressure
