LOGIC CIRCUITS 2

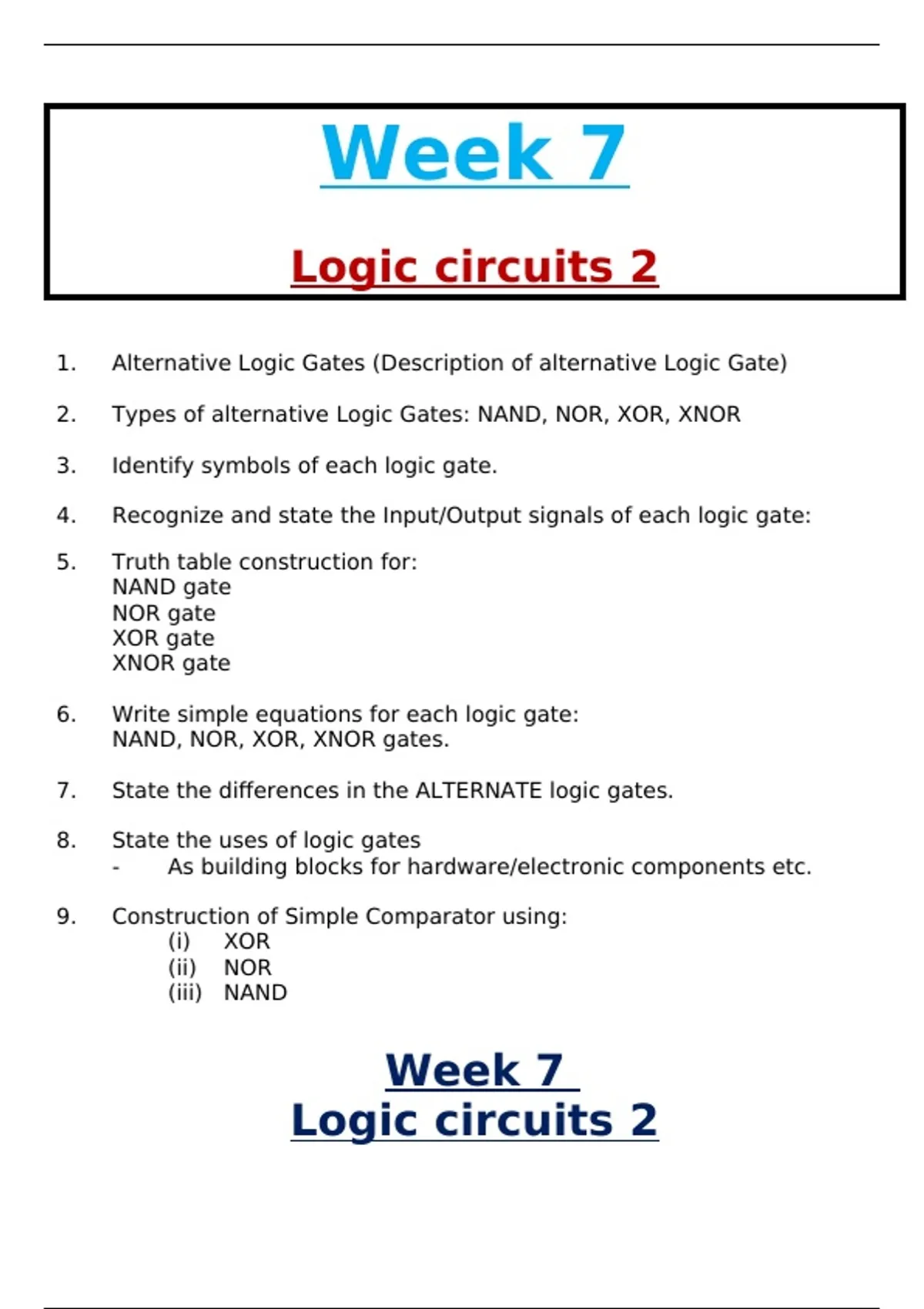

Week 7
Logic circuits 2

1. Alternative Logic Gates (Description of alternative Logic Gate)

2. Types of alternative Logic Gates: NAND, NOR, XOR, XNOR

3. Identify symbols of each logic gate.

4. Recognize and state the Input/Output signals of each logic gate:

5. Truth table construction for:
NAND gate
NOR gate
XOR gate
XNOR gate

6. Write simple equations for each logic gate:
NAND, NOR, XOR, XNOR gates.

7. State the differences in the ALTERNATE logic gates.

8. State the uses of logic gates
- As building blocks for hardware/electronic components etc.

9. Construction of Simple Comparator using:
(i) XOR
(ii) NOR
(iii) NAND


Week 7
Logic circuits 2

, ALTERNATIVE LOGIC
GATES
Alternative Logic gates are the logic gates derived from the standard or
existing logic gates to enhance functionality of logic gates in general.


TYPES OF ALTERNATIVE LOGIC GATES

The following are types of alternative logic gates:

1. NAND gate (Not AND)

2. NOR gate (Not OR)

3. XOR gate (Ex-OR) (Exclusive-OR)

4. XNOR gate (Ex-NOR) (Exclusive-NOR)
