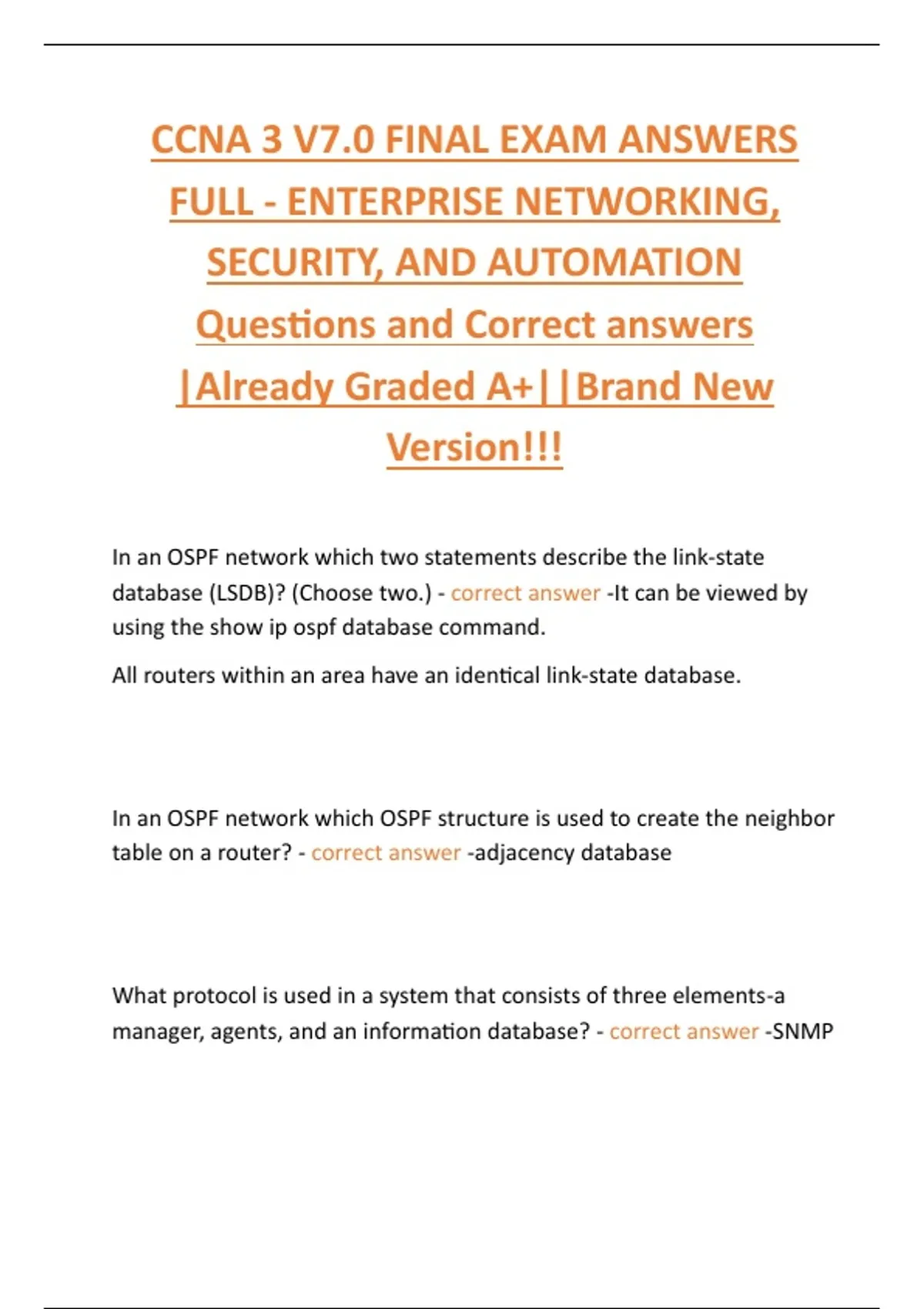

CCNA 3 V7.0 FINAL EXAM ANSWERS
FULL - ENTERPRISE NETWORKING,
SECURITY, AND AUTOMATION
Questions and Correct answers
|Already Graded A+||Brand New
Version!!!
In an OSPF network which two statements describe the link-state
database (LSDB)? (Choose two.) - correct answer -It can be viewed by
using the show ip ospf database command.
All routers within an area have an identical link-state database.
In an OSPF network which OSPF structure is used to create the neighbor
table on a router? - correct answer -adjacency database
What protocol is used in a system that consists of three elements-a
manager, agents, and an information database? - correct answer -SNMP
,What type of traffic is described as not resilient to loss? - correct
answer -data
Which type of API would be used to allow authorized salespeople of an
organization access to internal sales data from their mobile devices? -
correct answer -private
Which type of VPN uses a hub-and-spoke configuration to establish a
full mesh topology? - correct answer -dynamic multipoint VPN
What is a characteristic of the REST API? - correct answer -most widely
used API for web services
A student, doing a summer semester of study overseas, has taken
hundreds of pictures on a smartphone and wants to back them up in
case of loss. What service or technology would support this
requirement? - correct answer -cloud services
,Consider the following access list that allows IP phone configuration file
transfers from a particular host to a TFTP server:
R1(config)# access-list 105 permit udp host 10.0.70.23 host 10.0.54.5
range 1024 5000 R1(config)# access-list 105 deny ip any any R1(config)#
interface gi0/0 R1(config-if)# ip access-group 105 out
Which method would allow the network administrator to modify the
ACL and include FTP transfers from any source IP address? - correct
answer -R1(config)# interface gi0/0R1(config-if)# no ip access-group 105
outR1(config)# no access-list 105R1(config)# access-list 105 permit udp
host 10.0.70.23 host 10.0.54.5 range 1024 5000R1(config)# access-list
105 permit tcp any host 10.0.54.5 eq 20R1(config)# access-list 105
permit tcp any host 10.0.54.5 eq 21R1(config)# access-list 105 deny ip
any anyR1(config)# interface gi0/0R1(config-if)# ip access-group 105 out
Which three statements are generally considered to be best practices in
the placement of ACLs? (Choose three.) - correct answer -Place
extended ACLs close to the source IP address of the traffic.
Filter unwanted traffic before it travels onto a low-bandwidth link.
Place standard ACLs close to the destination IP address of the traffic.
, Match the term to the web link
http://www.buycarsfromus.com/2020models/ford/suv.html#Escape
component. (Not all options are used.)
http - correct answer -protocol
Match the term to the web link
http://www.buycarsfromus.com/2020models/ford/suv.html#Escape
component. (Not all options are used.)
www.buyscarsfromus.com/2020models/ford/suv.html - correct answer
-Uniform Resource Name (URN)
Match the term to the web link
http://www.buycarsfromus.com/2020models/ford/suv.html#Escape
component. (Not all options are used.)
http://www.buyscarsfromus.com/2020models/ford/suv.html - correct
answer -Uniform Resource Locator (URL)
