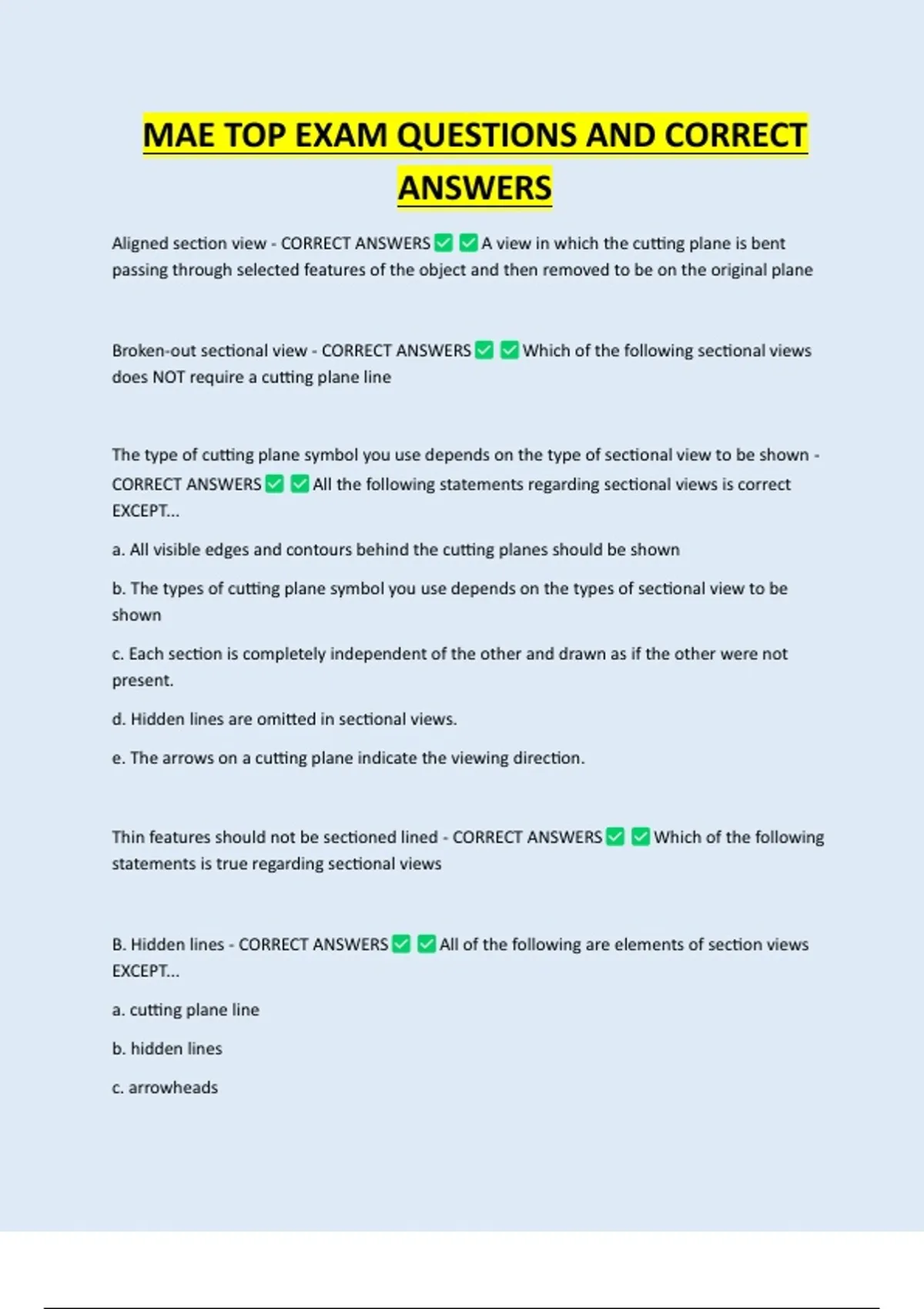

MAE TOP EXAM QUESTIONS AND CORRECT
ANSWERS
Aligned section view - CORRECT ANSWERS A view in which the cutting plane is bent
passing through selected features of the object and then removed to be on the original plane
Broken-out sectional view - CORRECT ANSWERS Which of the following sectional views
does NOT require a cutting plane line
The type of cutting plane symbol you use depends on the type of sectional view to be shown -
CORRECT ANSWERS All the following statements regarding sectional views is correct
EXCEPT...
a. All visible edges and contours behind the cutting planes should be shown
b. The types of cutting plane symbol you use depends on the types of sectional view to be
shown
c. Each section is completely independent of the other and drawn as if the other were not
present.
d. Hidden lines are omitted in sectional views.
e. The arrows on a cutting plane indicate the viewing direction.
Thin features should not be sectioned lined - CORRECT ANSWERS Which of the following
statements is true regarding sectional views
B. Hidden lines - CORRECT ANSWERS All of the following are elements of section views
EXCEPT...
a. cutting plane line
b. hidden lines
c. arrowheads
, d. section lines
e. letter identifiers, such as A-A
2.5mm or 3/32" - CORRECT ANSWERS When section lines are drawn, the space between
cross-hatch lines should be approximately _________.
half section - CORRECT ANSWERS The section view which is usually limited to symmetrical
objects is the __________.
ribs, webs, or gear teeth - CORRECT ANSWERS Items should never be section lined, even
though the cutting plane passes through what objects? _______
broken-out section - CORRECT ANSWERS The section view that does NOT use a cutting
plane line and is limited by a break line is called a _________.
offset - CORRECT ANSWERS A cutting plane line is NOT straight, and is offset or bending
through the object is typically of a ____________ section.
S-break - CORRECT ANSWERS A break used on cylindrical shafts or tubes are referred to as
____________.
true - CORRECT ANSWERS T or F : In the final drawing, cutting plane lines should be drawn
think.
true - CORRECT ANSWERS T or F: All visible edges and contours behind the cutting plane
should be shown.
