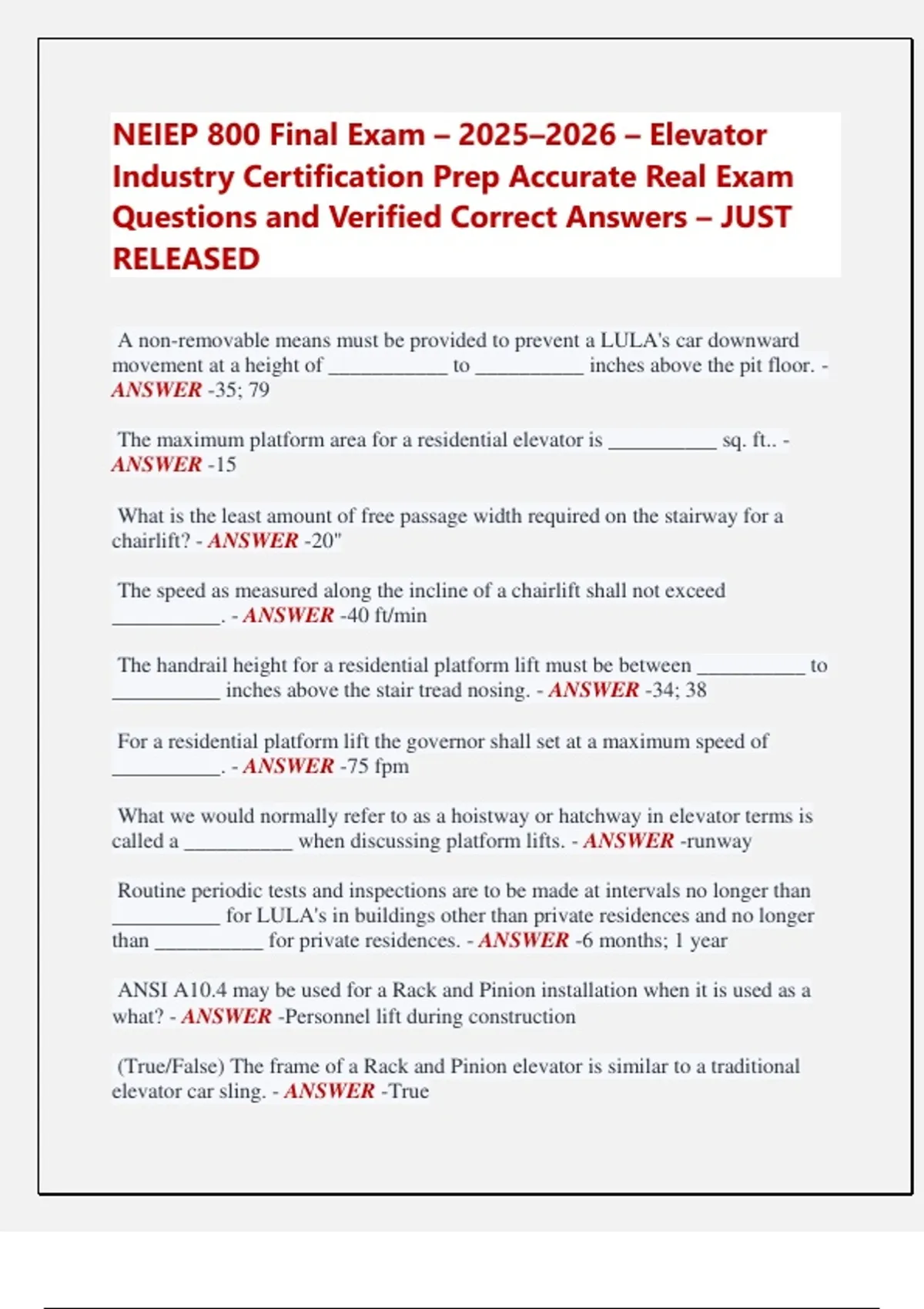

NEIEP 800 Final Exam – 2025–2026 – Elevator Industry Certification Prep Accurate Real Exam Questions and Verified Correct Answers – JUST RELEASED

NEIEP 800 Final Exam – 2025–2026 – Elevator Industry Certification Prep Accurate Real Exam Questions and Verified Correct Answers – JUST RELEASED A non-removable means must be provided to prevent a LULA's car downward movement at a height of ___________ to __________ inches above the pit floor. - ANSWER -35; 79 The maximum platform area for a residential elevator is __________ sq. ft.. - ANSWER -15 What is the least amount of free passage width required on the stairway for a chairlift? - ANSWER -20" The speed as measured along the incline of a chairlift shall not exceed __________. - ANSWER -40 ft/min The handrail height for a residential platform lift must be between __________ to __________ inches above the stair tread nosing. - ANSWER -34; 38 For a residential platform lift the governor shall set at a maximum speed of __________. - ANSWER -75 fpm What we would normally refer to as a hoistway or hatchway in elevator terms is called a __________ when discussing platform lifts. - ANSWER -runway Routine periodic tests and inspections are to be made at intervals no longer than __________ for LULA's in buildings other than private residences and no longer than __________ for private residences. - ANSWER -6 months; 1 year ANSI A10.4 may be used for a Rack and Pinion installation when it is used as a what? - ANSWER -Personnel lift during construction (True/False) The frame of a Rack and Pinion elevator is similar to a traditional elevator car sling. - ANSWER -True Spacing of tower wall ties generally fall between __________ to __________ feet. - ANSWER -10; 30 The typical maximum speed for R&P hoists is __________. - ANSWER -300 fpm Rack sections for Rack and Pinion hoists are aligned by doing what? - ANSWER Placing roll pins in the ends Changes in the viscosity of the oil in a hydraulic elevator will mainly effect the __________ and __________ of the elevator. - ANSWER -leveling; approach If a hydraulic elevator trips its low oil timer what should you check if the oil level is good? - ANSWER -pump belts Submersible pumps are always __________ __________ , conventional pumps are usually belt driven. - ANSWER -direct coupled The car must run at __________ speed only when using temporary run buttons. - ANSWER -leveling A __________ can be caused if the casing is welded crooked or drilling of the hole goes off center. - ANSWER -dogleg In a hydraulic system pressure= - ANSWER -Force/area In a hydraulic system area= - ANSWER -Force/pressure Hydro elevators in low rise applications do not need an _____ _____ room. - ANSWER -overhead machine Some advantages of hydros are lower equipment and building construction costs because the load of a hydro is carried to the _____ where as the load of a traction car is carried by the _____ _____. - ANSWER -ground, building structure When drilling the jack hole, the only proper way to determine if the hole is plumb is to remove the drill stem and bit and use a _____ _____. - ANSWER -Spider Bob To plumb the hole, a spider bob is attached to a length of piano wire suspended from as near as possible to the top of the _____ or from a fixed point on the drill rig. - ANSWER -Hoistway When welding a joint, lay _____ inch tack welds _____ degrees apart, shift it 90 degrees and lay two more 1 inch tack welds 180 degrees apart. - ANSWER -1, 180 On power units having the motor beneath the tank, the pump may be either _____ driven or _____ coupled. - ANSWER -belt, direct The purpose of the _____/_____ is to silence the effect of any pulsations in the pump output and should be as close to the pump as possible. - ANSWER -silencer, muffler On Bolsters/Bolster Assembly, the plunger is fastened to the _____ _____ which is then mounted to the center of the Bolster Assembly. - ANSWER -platen plate With wye-delta, reduced current starting is accomplished without the need for _____. - ANSWER -resistors _____ run buttons should run the platform and sling at leveling speeds only. - ANSWER -Temporary A _____ _____ consists of a piston held closed by an adjustable spring and must open at a certain pressure to prevent any further increase in pressure. - ANSWER relief valve A _____ lowering valve allows the car to be lowered at a speed not exceeding 20fpm in case of power failure. - ANSWER -manual As the oil temperature changes, the _____ will change as well and will effect the performance, more specifically, the leveling and approach of the elevator. - ANSWER -viscosity Be sure wellways are properly _____ to avoid accidental injury to you, your team or anyone working outside of our industry. - ANSWER -barricaded Barricades around the wellway must be _____ inches high and be capable of withstanding a _____lb force. - ANSWER -42, 200
