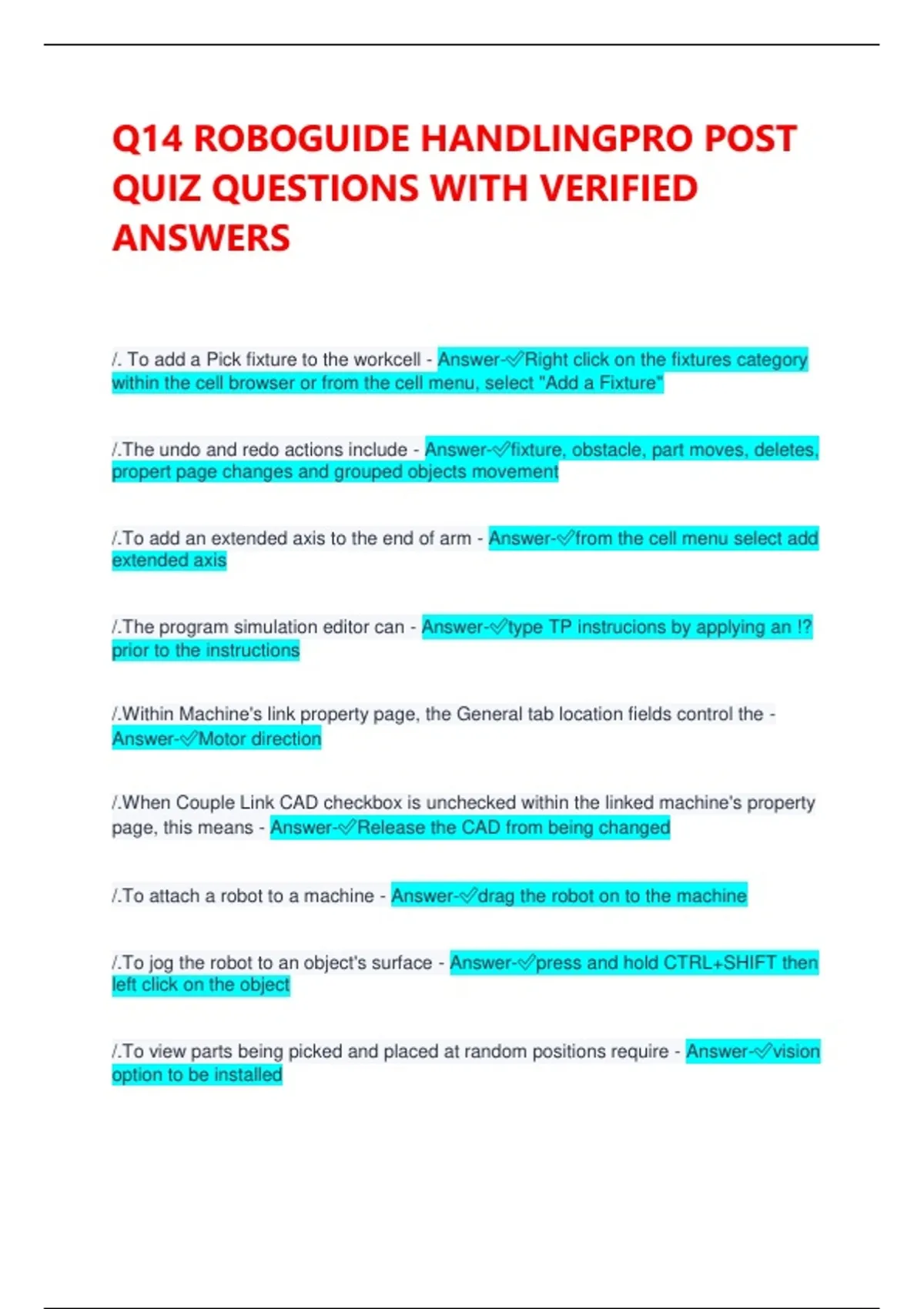

Q14 ROBOGUIDE HANDLINGPRO POST
QUIZ QUESTIONS WITH VERIFIED
ANSWERS
/. To add a Pick fixture to the workcell - Answer-✅Right click on the fixtures category
within the cell browser or from the cell menu, select "Add a Fixture"
/.The undo and redo actions include - Answer-✅fixture, obstacle, part moves, deletes,
propert page changes and grouped objects movement
/.To add an extended axis to the end of arm - Answer-✅from the cell menu select add
extended axis
/.The program simulation editor can - Answer-✅type TP instrucions by applying an !?
prior to the instructions
/.Within Machine's link property page, the General tab location fields control the -
Answer-✅Motor direction
/.When Couple Link CAD checkbox is unchecked within the linked machine's property
page, this means - Answer-✅Release the CAD from being changed
/.To attach a robot to a machine - Answer-✅drag the robot on to the machine
/.To jog the robot to an object's surface - Answer-✅press and hold CTRL+SHIFT then
left click on the object
/.To view parts being picked and placed at random positions require - Answer-✅vision
option to be installed
