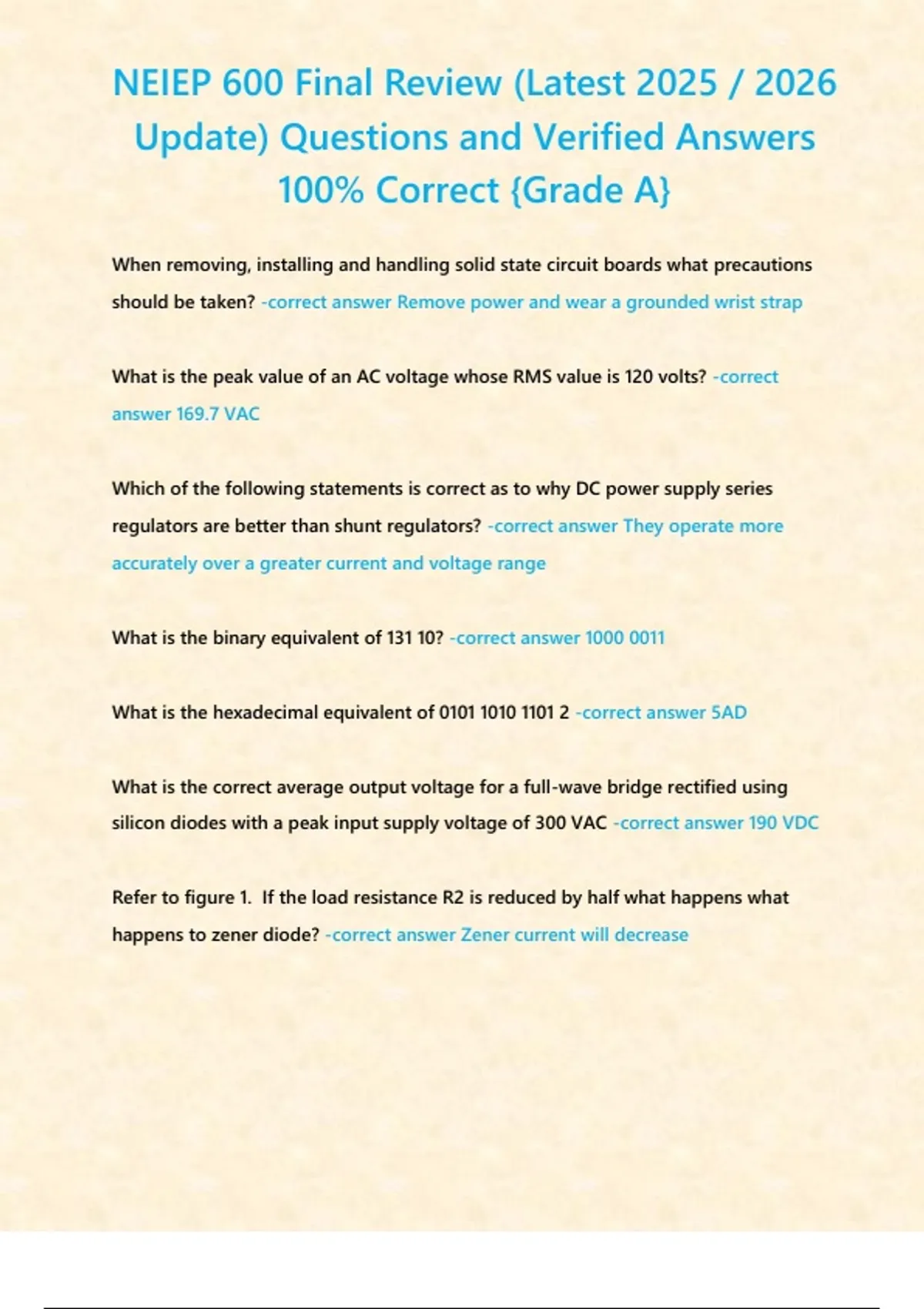

NEIEP 600 Final Review (Latest
Update) Questions and Verified Answers
100% Correct {Grade A}
When removing, installing and handling solid state circuit boards what precautions
should be taken? -correct answer Remove power and wear a grounded wrist strap
What is the peak value of an AC voltage whose RMS value is 120 volts? -correct
answer 169.7 VAC
Which of the following statements is correct as to why DC power supply series
regulators are better than shunt regulators? -correct answer They operate more
accurately over a greater current and voltage range
What is the binary equivalent of 131 10? -correct answer 1000 0011
What is the hexadecimal equivalent of 0101 1010 1101 2 -correct answer 5AD
What is the correct average output voltage for a full-wave bridge rectified using
silicon diodes with a peak input supply voltage of 300 VAC -correct answer 190 VDC
Refer to figure 1. If the load resistance R2 is reduced by half what happens what
happens to zener diode? -correct answer Zener current will decrease
, NEIEP 600 Final Review (Latest
Update) Questions and Verified Answers
100% Correct {Grade A}
Refer to figure 1. The zener diode is designed to breakdown at 6VDC what is the
voltage drop across R1 with a constant DC supply of 10VDC -correct answer 4v
