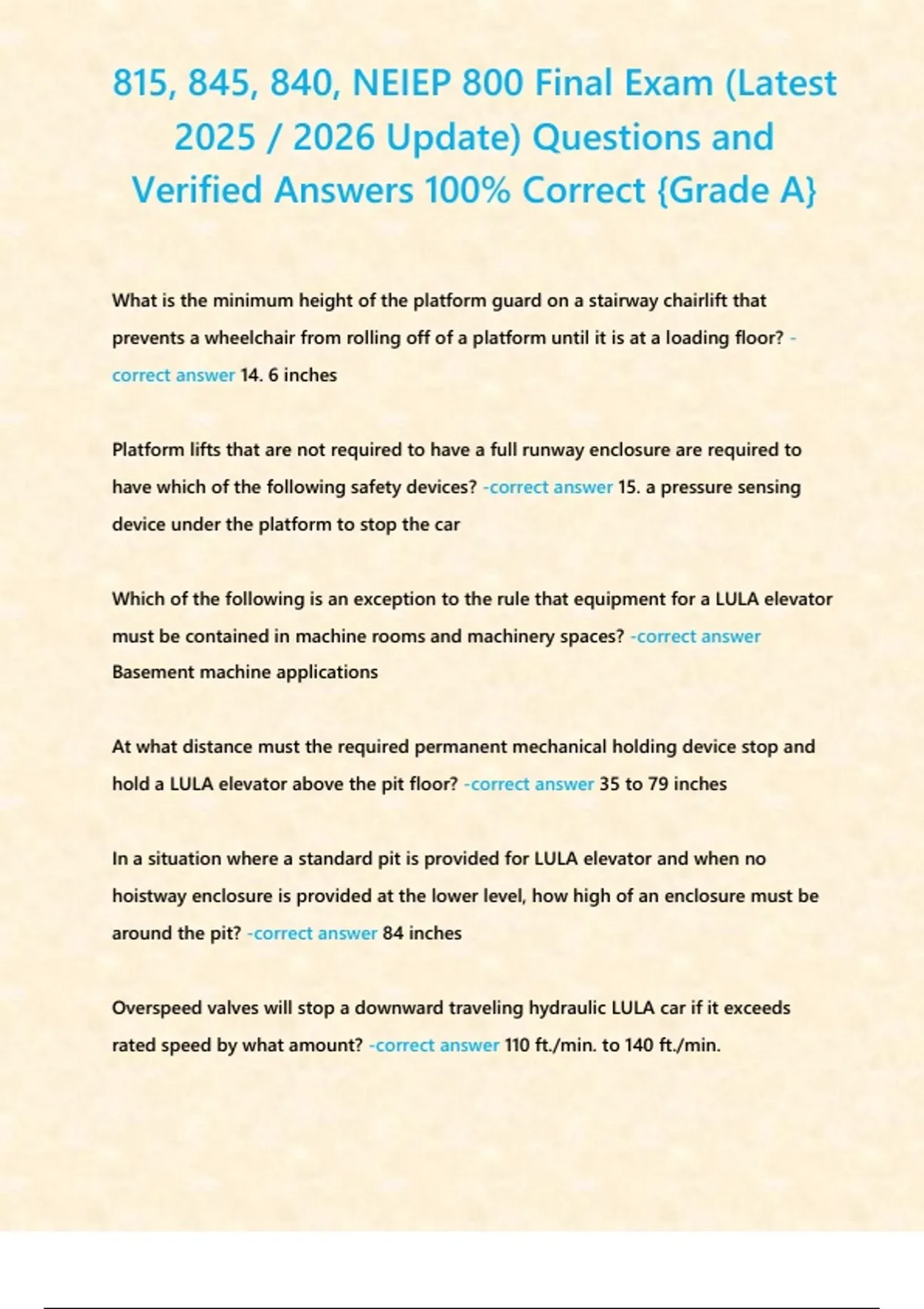

815, 845, 840, NEIEP 800 Final Exam (Latest
Update) Questions and
Verified Answers 100% Correct {Grade A}
What is the minimum height of the platform guard on a stairway chairlift that
prevents a wheelchair from rolling off of a platform until it is at a loading floor? -
correct answer 14. 6 inches
Platform lifts that are not required to have a full runway enclosure are required to
have which of the following safety devices? -correct answer 15. a pressure sensing
device under the platform to stop the car
Which of the following is an exception to the rule that equipment for a LULA elevator
must be contained in machine rooms and machinery spaces? -correct answer
Basement machine applications
At what distance must the required permanent mechanical holding device stop and
hold a LULA elevator above the pit floor? -correct answer 35 to 79 inches
In a situation where a standard pit is provided for LULA elevator and when no
hoistway enclosure is provided at the lower level, how high of an enclosure must be
around the pit? -correct answer 84 inches
Overspeed valves will stop a downward traveling hydraulic LULA car if it exceeds
rated speed by what amount? -correct answer 110 ft./min. to 140 ft./min.
,815, 845, 840, NEIEP 800 Final Exam (Latest
Update) Questions and
Verified Answers 100% Correct {Grade A}
What is the maximum speed at which a speed governor (if provided) on a LULA or
residential installation is permitted to trip? -correct answer 75ft./min.
Car door switches in LULA elevators are required to operate no more than how many
inches from full closed? -correct answer 2"
What type of LULA elevator is not required to be in an enclosed hoistway, provided
that there is a means to stop a down running car if an obstruction exists below the
car? -correct answer private residence elevator
When using wire rope, the diameter of the sheaves must be how many times the
diameter of the suspension ropes? -correct answer 30
In a private residence elevator, what is the term for the 2 x 10 plank that is doubled
up to serve as the anchor for the rail brackets? -correct answer pillar
The hoistway foors for a LULA elevator have which of the following distinct variations
to passenger elevator code? -correct answer a powered swing door is permitted
What is the maximum allowable rated load for a LULA elevator? -correct answer 1,400
lbs.
,815, 845, 840, NEIEP 800 Final Exam (Latest
Update) Questions and
Verified Answers 100% Correct {Grade A}
When LULA car overhead that is required by code cannot be provided, what can be
installed in lieu of this code overhead requirement? -correct answer a non-removable
means to stop upward movement of the car
How far from the wall should the base of the ladder be when using it during small-
scale installations, such as residential and LULA applications? -correct answer 1/4 the
height
What action is necessary on the part of the installer when the hoistway openings of
an installation are not secured from the general public? -correct answer completely
close off hoistway openings
What is the maximum speed in f/min. of a residential elevator? -correct answer 40
overhead machine -correct answer Hydro elevators in low rise applications do not
need an _____ _____ room.
ground, building structure -correct answer Some advantages of hydros are lower
equipment and building construction costs because the load of a hydro is carried to
the _____ where as the load of a traction car is carried by the _____ _____.
Spider Bob -correct answer When drilling the jack hole, the only proper way to
determine if the hole is plumb is to remove the drill stem and bit and use a _____ _____.
, 815, 845, 840, NEIEP 800 Final Exam (Latest
Update) Questions and
Verified Answers 100% Correct {Grade A}
Hoistway -correct answer To plumb the hole, a spider bob is attached to a length of
piano wire suspended from as near as possible to the top of the _____ or from a fixed
point on the drill rig.
1, 180 -correct answer When welding a joint, lay _____ inch tack welds _____ degrees
apart, shift it 90 degrees and lay two more 1 inch tack welds 180 degrees apart.
belt, direct -correct answer On power units having the motor beneath the tank, the
pump may be either _____ driven or _____ coupled.
silencer, muffler -correct answer The purpose of the _____/_____ is to silence the effect
of any pulsations in the pump output and should be as close to the pump as possible.
platen plate -correct answer On Bolsters/Bolster Assembly, the plunger is fastened to
the _____ _____ which is then mounted to the center of the Bolster Assembly.
resistors -correct answer With wye-delta, reduced current starting is accomplished
without the need for _____.
Temporary -correct answer _____ run buttons should run the platform and sling at
leveling speeds only.
