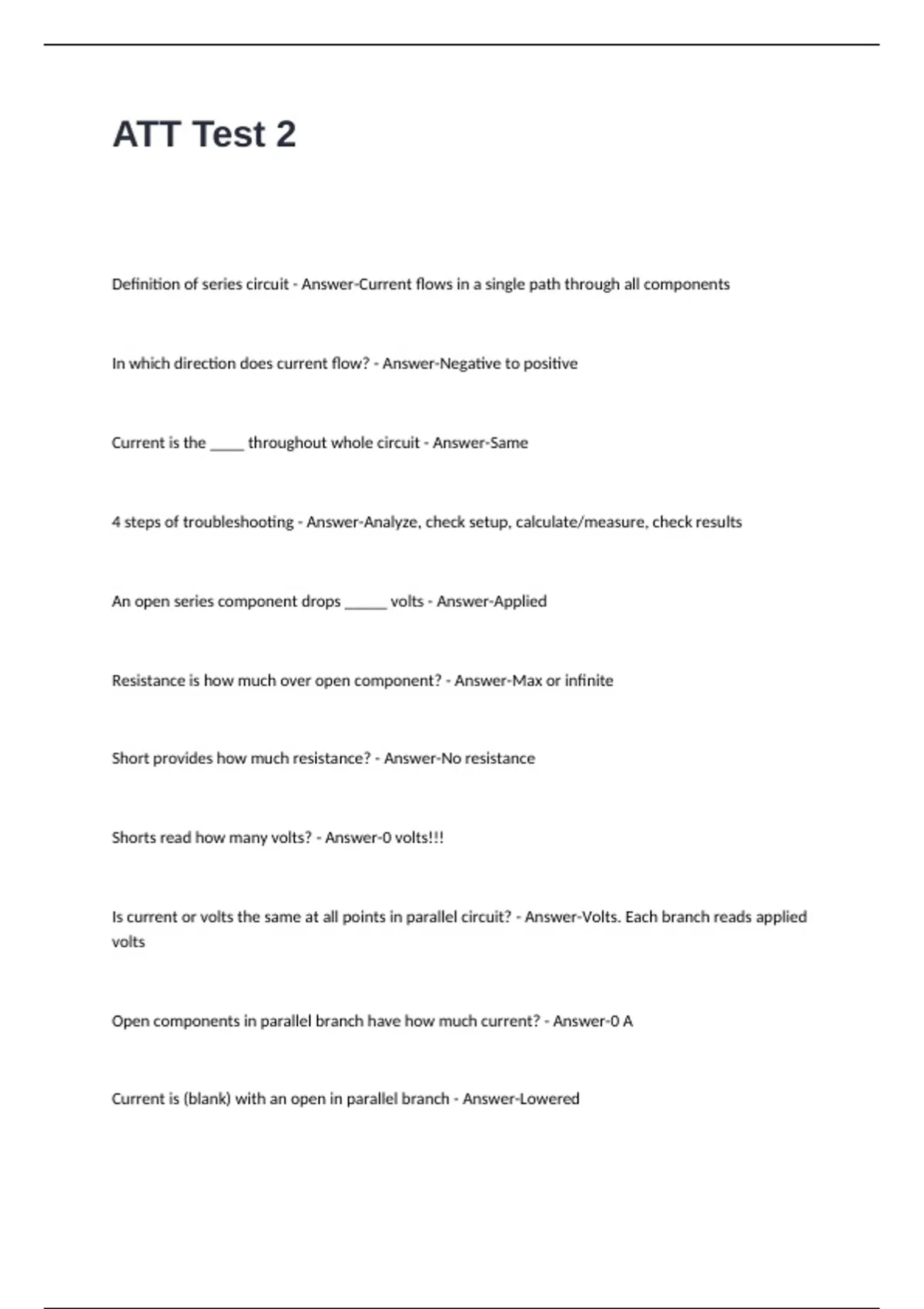

ATT Test 2
Definition of series circuit - Answer-Current flows in a single path through all components
In which direction does current flow? - Answer-Negative to positive
Current is the ____ throughout whole circuit - Answer-Same
4 steps of troubleshooting - Answer-Analyze, check setup, calculate/measure, check results
An open series component drops _____ volts - Answer-Applied
Resistance is how much over open component? - Answer-Max or infinite
Short provides how much resistance? - Answer-No resistance
Shorts read how many volts? - Answer-0 volts!!!
Is current or volts the same at all points in parallel circuit? - Answer-Volts. Each branch reads applied
volts
Open components in parallel branch have how much current? - Answer-0 A
Current is (blank) with an open in parallel branch - Answer-Lowered
