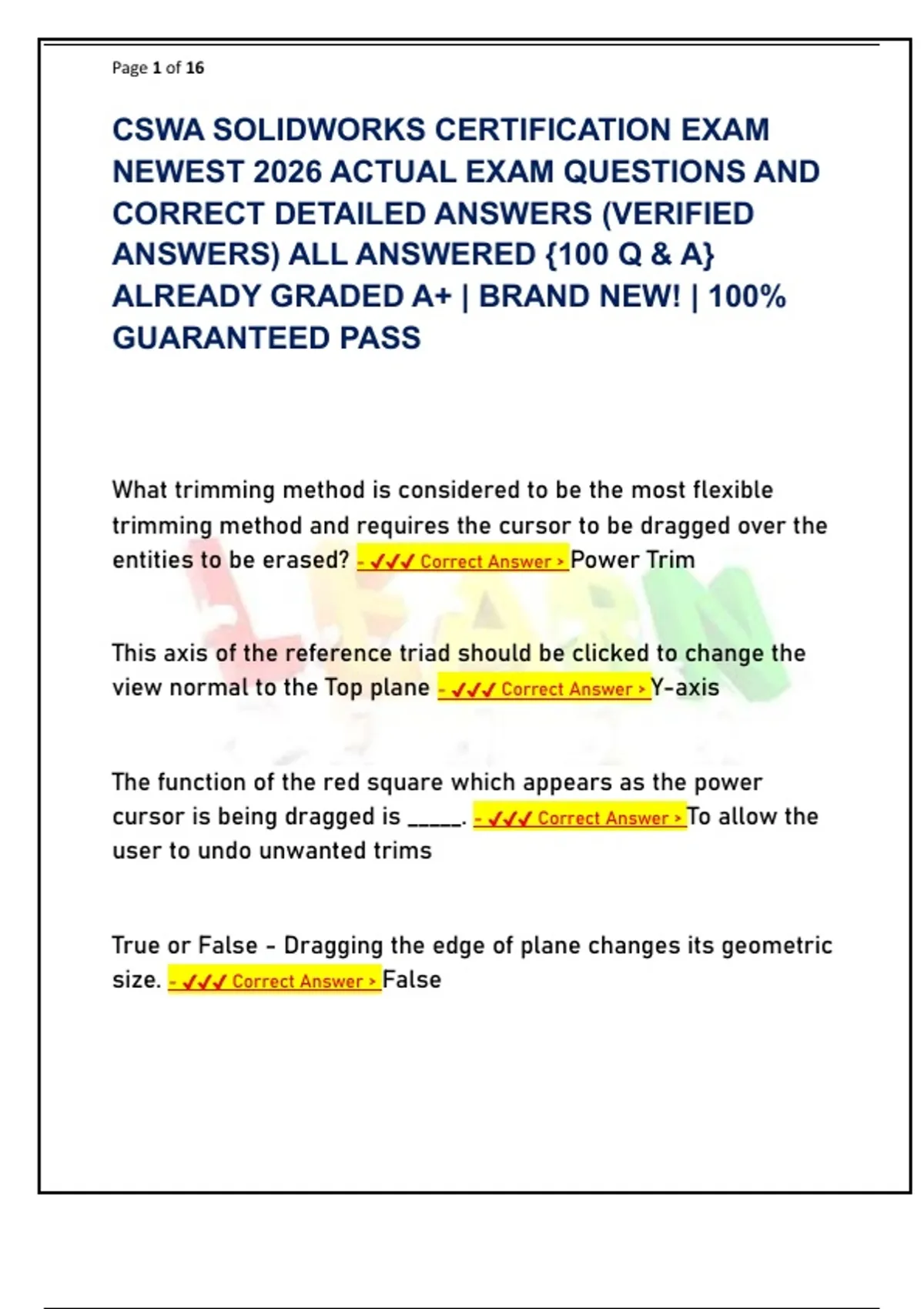

Page 1 of 16
CSWA SOLIDWORKS CERTIFICATION EXAM
NEWEST 2026 ACTUAL EXAM QUESTIONS AND
CORRECT DETAILED ANSWERS (VERIFIED
ANSWERS) ALL ANSWERED {100 Q & A}
ALREADY GRADED A+ | BRAND NEW! | 100%
GUARANTEED PASS
What trimming method is considered to be the most flexible
trimming method and requires the cursor to be dragged over the
entities to be erased? - ✔✔✔ Correct Answer > Power Trim
This axis of the reference triad should be clicked to change the
view normal to the Top plane - ✔✔✔ Correct Answer > Y-axis
The function of the red square which appears as the power
cursor is being dragged is _____. - ✔✔✔ Correct Answer > To allow the
user to undo unwanted trims
True or False - Dragging the edge of plane changes its geometric
size. - ✔✔✔ Correct Answer > False
,Page 2 of 16
These following methods can be used to begin a sketch on a
plane. - ✔✔✔ Correct Answer > Selecting a plane in the graphics area
and then clicking on the Sketch button in the commandmanager,
clicking on the Sketch button in the commandmanager and then
selecting a plane, right-clicking on a plane and selecting "Sketch"
from the context toolbar
True or False - In order to sketch on a face of a body, the face
must be parallel with one of the three default planes in
SOLIDWORKS. - ✔✔✔ Correct Answer > False
True or False - A face must be planar in order to have a sketch
drawn on it. - ✔✔✔ Correct Answer > True
The Smart Dimension tool determines what type of dimension to
add by - ✔✔✔ Correct Answer > The geometry you select
You access the "Smart Dimension" tool by - ✔✔✔ Correct Answer >
Launching the Shortcut Toolbar by pressing "S" on the keyboard
and click "Smart Dimension", using mouse-gestures by right-
clicking and dragging up in the graphics area, clicking the "Smart
Dimension" icon from the Sketch tab of the commandmanager
The Smart Dimension tool automatically adds what type of
dimension when you select an arc? - ✔✔✔ Correct Answer > Radial
, Page 3 of 16
How can you edit the value of a dimension by using the Modify
Dialog box? - ✔✔✔ Correct Answer > Using the spinbox to increase or
decrease the value, using the arrows to increase or decrease the
value, clicking in the window and type in a new value
True or False - When dimensioning to centerlines, SOLIDWORKS
provides the ability to change from linear to diameter
dimensions. - ✔✔✔ Correct Answer > True
Which is not an available option for a line? - ✔✔✔ Correct Answer >
snap to axes
Which line type allows dimensions to be added with the creation
of the line? - ✔✔✔ Correct Answer > Angle
What method will not convert a line to a construction line? - ✔✔✔
Correct Answer > Selecting a line, clicking "Centerline" button in the
commandmanager
True or False - When a corner rectangle is sketched, two of the
sides are automatically set to horizontal and the other two are
automatically set to vertical. - ✔✔✔ Correct Answer > True
