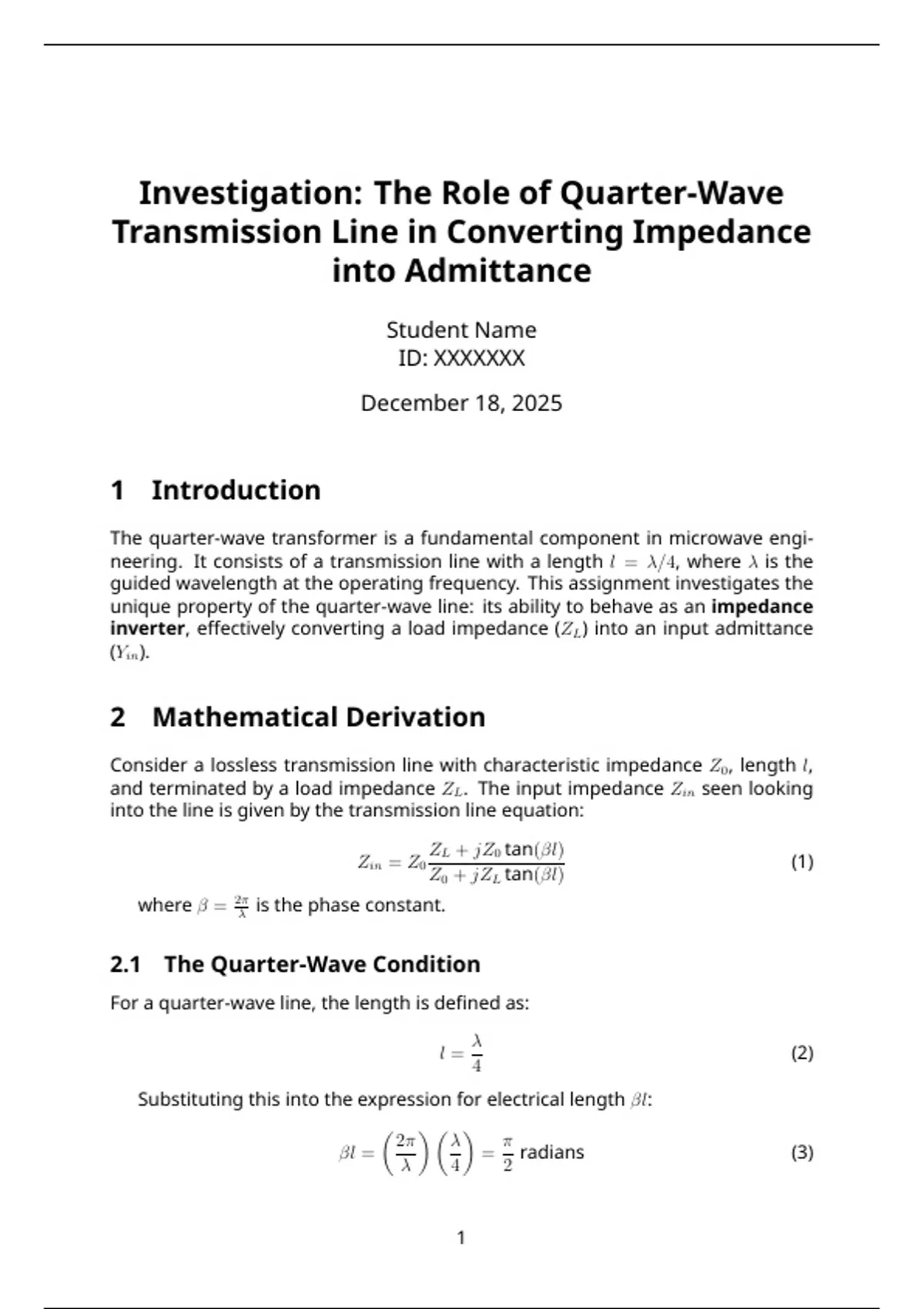

Investigation: The Role of Quarter-Wave
Transmission Line in Converting Impedance
into Admittance
Student Name
ID: XXXXXXX

December 18, 2025


1 Introduction
The quarter-wave transformer is a fundamental component in microwave engi-
neering. It consists of a transmission line with a length l = λ/4, where λ is the
guided wavelength at the operating frequency. This assignment investigates the
unique property of the quarter-wave line: its ability to behave as an impedance
inverter, effectively converting a load impedance (ZL ) into an input admittance
(Yin ).


2 Mathematical Derivation
Consider a lossless transmission line with characteristic impedance Z0 , length l,
and terminated by a load impedance ZL . The input impedance Zin seen looking
into the line is given by the transmission line equation:

ZL + jZ0 tan(βl)
Zin = Z0 (1)
Z0 + jZL tan(βl)
2π
where β = λ
is the phase constant.


2.1 The Quarter-Wave Condition
For a quarter-wave line, the length is defined as:

λ
l= (2)
4
Substituting this into the expression for electrical length βl:

2π λ π
βl = = radians (3)
λ 4 2
