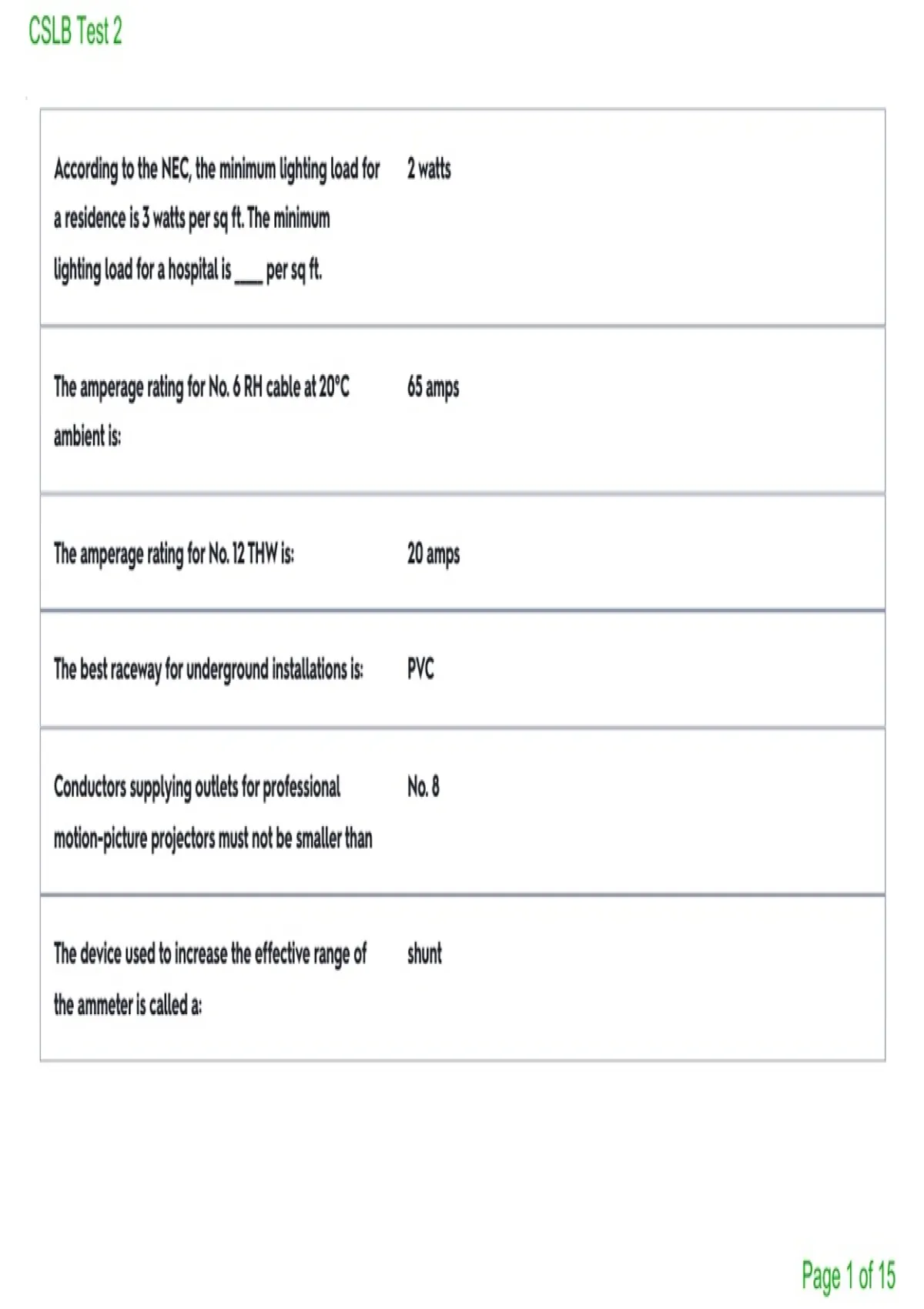

CSLB Test 2
According to the NEC, the minimum lighting load for 2 watts
a residence is 3 watts per sq ft. The minimum
lighting load for a hospital is _____ per sq ft.
The amperage rating for No. 6 RH cable at 20°C 65 amps
ambient is:
The amperage rating for No. 12 THW is: 20 amps
The best raceway for underground installations is: PVC
Conductors supplying outlets for professional No. 8
motion-picture projectors must not be smaller than
The device used to increase the effective range of shunt
the ammeter is called a:
Page 1 of 15
, CSLB Test 2
Each self-supporting portable ladder must support 2.5 ... 4
without failure at least ____ times the maximum
intended load, except that each extra-heavy-duty
type 1A metal or plastic ladder shall sustain at least
_____ times the maximum intended load.
Electrical equipment must be encased and locked, 600 V
except when observed by a qualified attendant, if it
is more than:
A fixture may be used as a raceway if: it is designed for end-to-end installation
Flat conductor cable (Type FCC) is used in branch carpet squares
circuits designed for installation under:
For a 125-amp main service panel, what size and four No. 2 Cu
how many wires would be connected to a 100-amp
sub-panel?
Page 2 of 15
According to the NEC, the minimum lighting load for 2 watts
a residence is 3 watts per sq ft. The minimum
lighting load for a hospital is _____ per sq ft.
The amperage rating for No. 6 RH cable at 20°C 65 amps
ambient is:
The amperage rating for No. 12 THW is: 20 amps
The best raceway for underground installations is: PVC
Conductors supplying outlets for professional No. 8
motion-picture projectors must not be smaller than
The device used to increase the effective range of shunt
the ammeter is called a:
Page 1 of 15
, CSLB Test 2
Each self-supporting portable ladder must support 2.5 ... 4
without failure at least ____ times the maximum
intended load, except that each extra-heavy-duty
type 1A metal or plastic ladder shall sustain at least
_____ times the maximum intended load.
Electrical equipment must be encased and locked, 600 V
except when observed by a qualified attendant, if it
is more than:
A fixture may be used as a raceway if: it is designed for end-to-end installation
Flat conductor cable (Type FCC) is used in branch carpet squares
circuits designed for installation under:
For a 125-amp main service panel, what size and four No. 2 Cu
how many wires would be connected to a 100-amp
sub-panel?
Page 2 of 15
