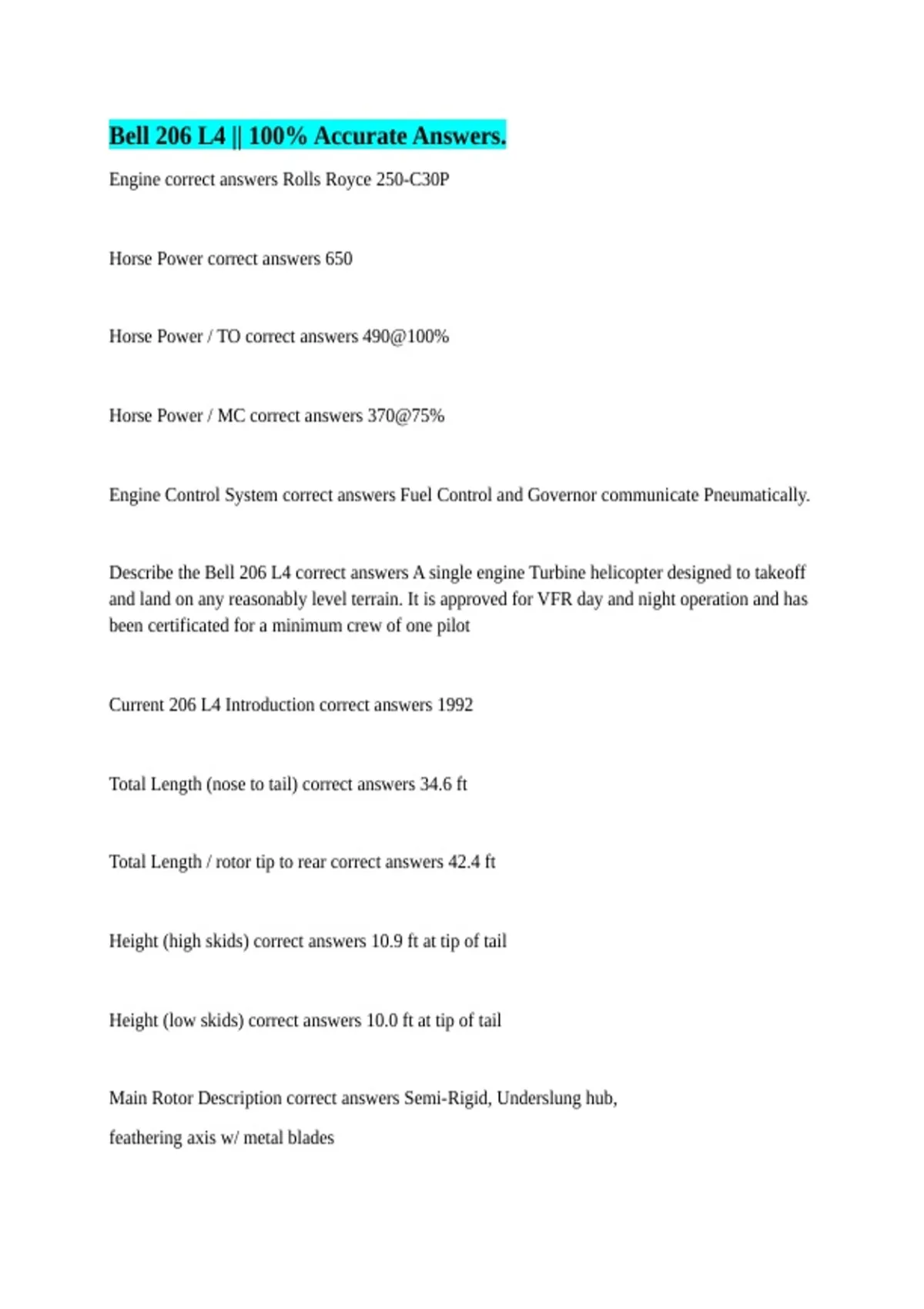

Bell 206 L4 || 100% Accurate Answers.
Engine correct answers Rolls Royce 250-C30P
Horse Power correct answers 650
Horse Power / TO correct answers 490@100%
Horse Power / MC correct answers 370@75%
Engine Control System correct answers Fuel Control and Governor communicate Pneumatically.
Describe the Bell 206 L4 correct answers A single engine Turbine helicopter designed to takeoff
and land on any reasonably level terrain. It is approved for VFR day and night operation and has
been certificated for a minimum crew of one pilot
Current 206 L4 Introduction correct answers 1992
Total Length (nose to tail) correct answers 34.6 ft
Total Length / rotor tip to rear correct answers 42.4 ft
Height (high skids) correct answers 10.9 ft at tip of tail
Height (low skids) correct answers 10.0 ft at tip of tail
Main Rotor Description correct answers Semi-Rigid, Underslung hub,
feathering axis w/ metal blades
, Main Rotor Diameter correct answers 37.0 feet
Main Rotor RPM correct answers 394 @ 100%
Fuselage Width correct answers 4' 4"
Clearance (high skids) correct answers 2.1 ft
Clearance (low skids) correct answers 1.3 ft
Winglets Angle correct answers 5 degrees left
Vertical Fin Angle correct answers 5.5 degrees right
Blade chord correct answers 1.0 ft
Skid width (high) correct answers 7.8 ft
Skid width (low) correct answers 7.7 ft
Static Droop (high skids) correct answers 7.1 ft
Static Droop (low skids) correct answers 6.4 ft
Tail Rotor Diameter correct answers 5.4 ft
