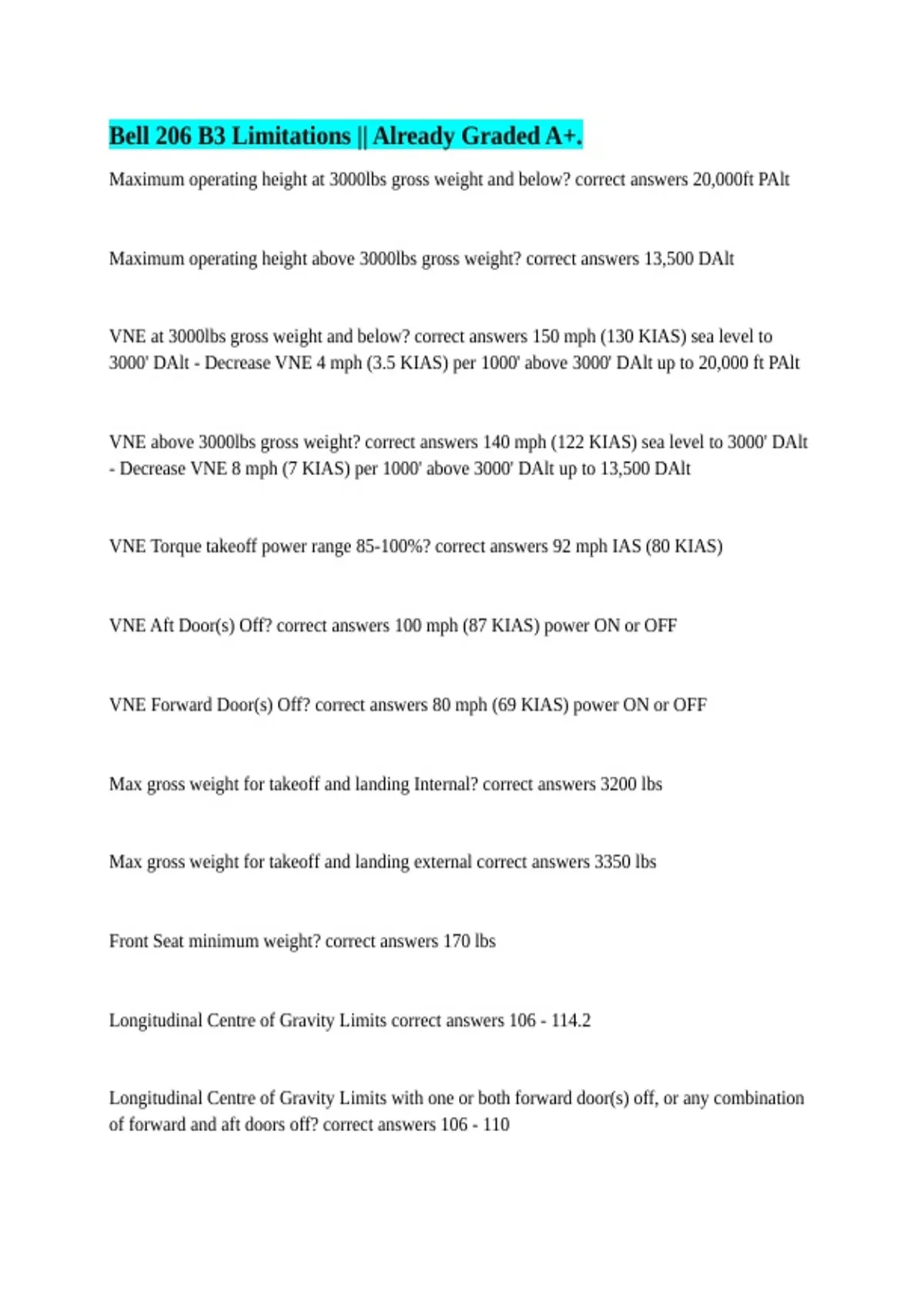

Bell 206 B3 Limitations || Already Graded A+.
Maximum operating height at 3000lbs gross weight and below? correct answers 20,000ft PAlt
Maximum operating height above 3000lbs gross weight? correct answers 13,500 DAlt
VNE at 3000lbs gross weight and below? correct answers 150 mph (130 KIAS) sea level to
3000' DAlt - Decrease VNE 4 mph (3.5 KIAS) per 1000' above 3000' DAlt up to 20,000 ft PAlt
VNE above 3000lbs gross weight? correct answers 140 mph (122 KIAS) sea level to 3000' DAlt
- Decrease VNE 8 mph (7 KIAS) per 1000' above 3000' DAlt up to 13,500 DAlt
VNE Torque takeoff power range 85-100%? correct answers 92 mph IAS (80 KIAS)
VNE Aft Door(s) Off? correct answers 100 mph (87 KIAS) power ON or OFF
VNE Forward Door(s) Off? correct answers 80 mph (69 KIAS) power ON or OFF
Max gross weight for takeoff and landing Internal? correct answers 3200 lbs
Max gross weight for takeoff and landing external correct answers 3350 lbs
Front Seat minimum weight? correct answers 170 lbs
Longitudinal Centre of Gravity Limits correct answers 106 - 114.2
Longitudinal Centre of Gravity Limits with one or both forward door(s) off, or any combination
of forward and aft doors off? correct answers 106 - 110
, Lateral Centre of Gravity Limits correct answers 3.0 inches Left of Centre Line
4.0 inches Right of Centre Line
Engine Model correct answers Allison 250-C20B (Rolls Royce)
Power Turbine (N2) Operating RPM Limits POWER ON? correct answers 97% Min
100% Max
Use of throttle to control RPM is? correct answers NOT AUTHORIZED
N2 Transient overspeed limits POWER ON? correct answers Refer to figure 1-3 Flight Manual
32% Torque - 107% ERPM
15 seconds Max, in Shaded Area
Max N1 RPM (Gas Producer)? correct answers 105%
Transient N1 RPM (Gas Producer)? correct answers 106% - 15 seconds max
Max takeoff torque? correct answers 100% - 5 minutes
Torque Transient Limit? correct answers 110% - 5 seconds (intentional use Prohibited)
Max continuous torque? correct answers 85%
TOT takeoff limit correct answers 810 C - 5 minutes max
Max continuous TOT correct answers 737 C
Maximum operating height at 3000lbs gross weight and below? correct answers 20,000ft PAlt
Maximum operating height above 3000lbs gross weight? correct answers 13,500 DAlt
VNE at 3000lbs gross weight and below? correct answers 150 mph (130 KIAS) sea level to
3000' DAlt - Decrease VNE 4 mph (3.5 KIAS) per 1000' above 3000' DAlt up to 20,000 ft PAlt
VNE above 3000lbs gross weight? correct answers 140 mph (122 KIAS) sea level to 3000' DAlt
- Decrease VNE 8 mph (7 KIAS) per 1000' above 3000' DAlt up to 13,500 DAlt
VNE Torque takeoff power range 85-100%? correct answers 92 mph IAS (80 KIAS)
VNE Aft Door(s) Off? correct answers 100 mph (87 KIAS) power ON or OFF
VNE Forward Door(s) Off? correct answers 80 mph (69 KIAS) power ON or OFF
Max gross weight for takeoff and landing Internal? correct answers 3200 lbs
Max gross weight for takeoff and landing external correct answers 3350 lbs
Front Seat minimum weight? correct answers 170 lbs
Longitudinal Centre of Gravity Limits correct answers 106 - 114.2
Longitudinal Centre of Gravity Limits with one or both forward door(s) off, or any combination
of forward and aft doors off? correct answers 106 - 110
, Lateral Centre of Gravity Limits correct answers 3.0 inches Left of Centre Line
4.0 inches Right of Centre Line
Engine Model correct answers Allison 250-C20B (Rolls Royce)
Power Turbine (N2) Operating RPM Limits POWER ON? correct answers 97% Min
100% Max
Use of throttle to control RPM is? correct answers NOT AUTHORIZED
N2 Transient overspeed limits POWER ON? correct answers Refer to figure 1-3 Flight Manual
32% Torque - 107% ERPM
15 seconds Max, in Shaded Area
Max N1 RPM (Gas Producer)? correct answers 105%
Transient N1 RPM (Gas Producer)? correct answers 106% - 15 seconds max
Max takeoff torque? correct answers 100% - 5 minutes
Torque Transient Limit? correct answers 110% - 5 seconds (intentional use Prohibited)
Max continuous torque? correct answers 85%
TOT takeoff limit correct answers 810 C - 5 minutes max
Max continuous TOT correct answers 737 C
