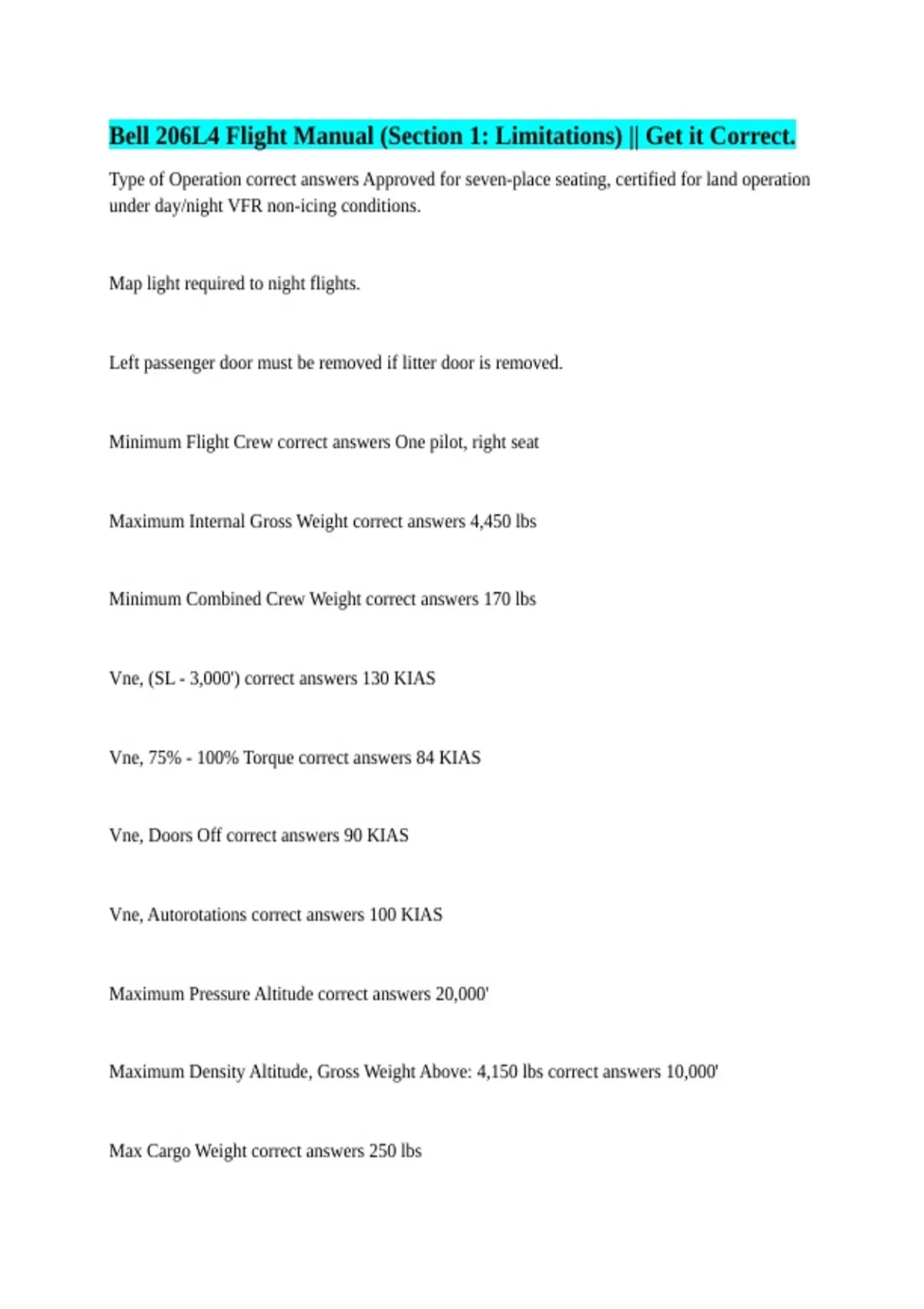

Bell 206L4 Flight Manual (Section 1: Limitations) || Get it Correct.
Type of Operation correct answers Approved for seven-place seating, certified for land operation
under day/night VFR non-icing conditions.
Map light required to night flights.
Left passenger door must be removed if litter door is removed.
Minimum Flight Crew correct answers One pilot, right seat
Maximum Internal Gross Weight correct answers 4,450 lbs
Minimum Combined Crew Weight correct answers 170 lbs
Vne, (SL - 3,000') correct answers 130 KIAS
Vne, 75% - 100% Torque correct answers 84 KIAS
Vne, Doors Off correct answers 90 KIAS
Vne, Autorotations correct answers 100 KIAS
Maximum Pressure Altitude correct answers 20,000'
Maximum Density Altitude, Gross Weight Above: 4,150 lbs correct answers 10,000'
Max Cargo Weight correct answers 250 lbs
, Max Allowable Weight per Sq. Ft correct answers 86 lbs
Rotor Brake Engagement correct answers 38% - 30% RPM
N2 Avoidance Range correct answers 71.8% - 91.5%
Maximum Ambient Air Temperature correct answers 51.7°C / 125°F
Aerobatic Maneuvers correct answers Prohibited
Maximum DC Electrical Load correct answers 90% DC
DC Continue Operation correct answers 0% - 90% DC
Powerplant correct answers Allison Model 250-C30P
Gas Producer (N1) Continuous Operation correct answers 63% - 105%
Gas Producer (N1) Maximum correct answers 105%
Gas Producer (N1) Maximum Transient correct answers 106%, Do Not Exceed 10 Seconds
Power Turbine (N2) Avoidance Range correct answers 71.8% - 91.5%
Power Turbine (N2) Minimum correct answers 99%
