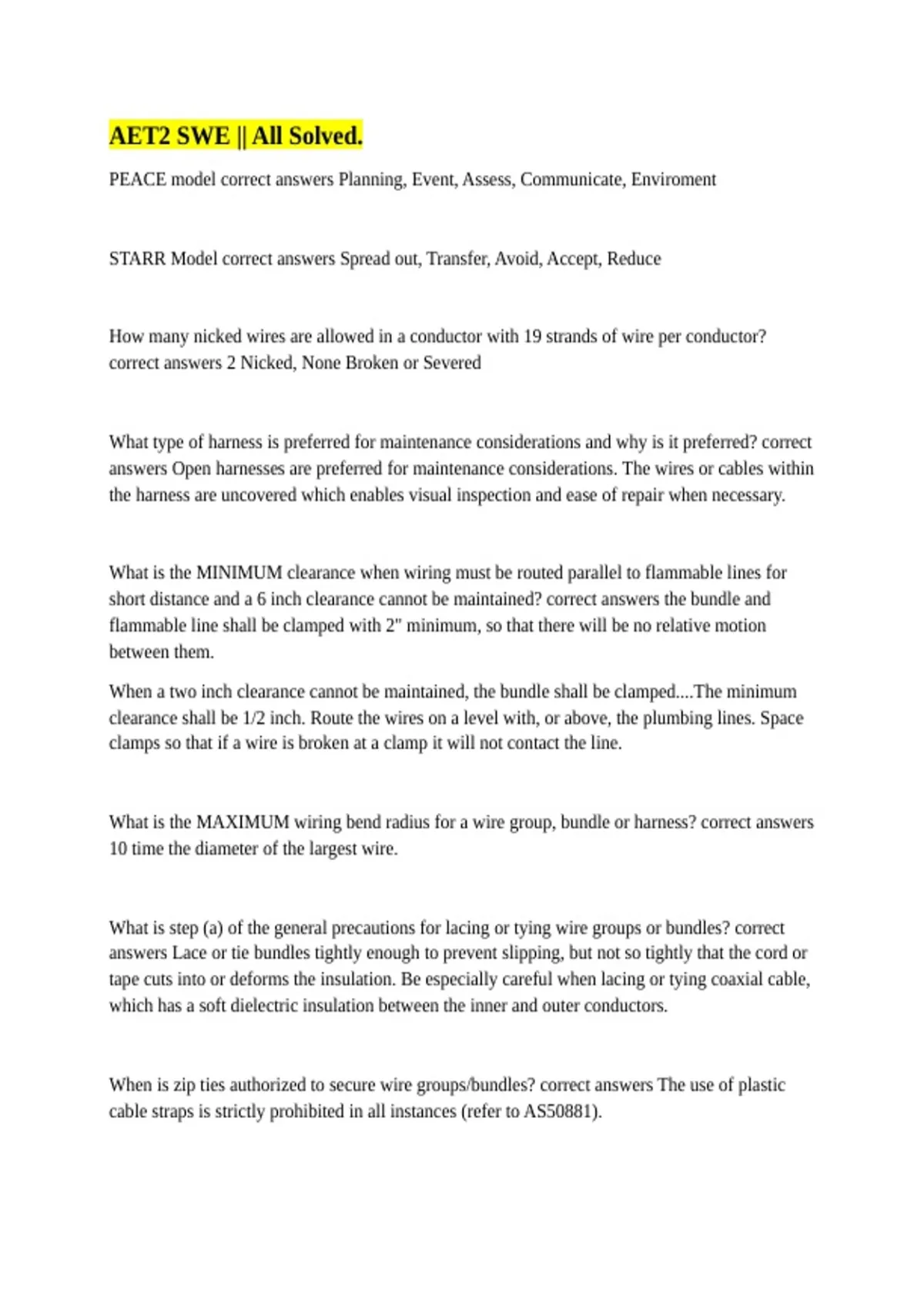

AET2 SWE || All Solved.
PEACE model correct answers Planning, Event, Assess, Communicate, Enviroment
STARR Model correct answers Spread out, Transfer, Avoid, Accept, Reduce
How many nicked wires are allowed in a conductor with 19 strands of wire per conductor?
correct answers 2 Nicked, None Broken or Severed
What type of harness is preferred for maintenance considerations and why is it preferred? correct
answers Open harnesses are preferred for maintenance considerations. The wires or cables within
the harness are uncovered which enables visual inspection and ease of repair when necessary.
What is the MINIMUM clearance when wiring must be routed parallel to flammable lines for
short distance and a 6 inch clearance cannot be maintained? correct answers the bundle and
flammable line shall be clamped with 2" minimum, so that there will be no relative motion
between them.
When a two inch clearance cannot be maintained, the bundle shall be clamped....The minimum
clearance shall be 1/2 inch. Route the wires on a level with, or above, the plumbing lines. Space
clamps so that if a wire is broken at a clamp it will not contact the line.
What is the MAXIMUM wiring bend radius for a wire group, bundle or harness? correct answers
10 time the diameter of the largest wire.
What is step (a) of the general precautions for lacing or tying wire groups or bundles? correct
answers Lace or tie bundles tightly enough to prevent slipping, but not so tightly that the cord or
tape cuts into or deforms the insulation. Be especially careful when lacing or tying coaxial cable,
which has a soft dielectric insulation between the inner and outer conductors.
When is zip ties authorized to secure wire groups/bundles? correct answers The use of plastic
cable straps is strictly prohibited in all instances (refer to AS50881).
,Which five heating tools are authorized to use on aircraft? correct answers HT-900B, HT-920B,
HT-71002, M and IR -1759.
Which heating tools are authorized for the internal repair of fuel tanks and fuel cells? correct
answers The HT-900B, HT-920B, HT-71002, MC H-100-A and IR-1759 are the only authorized
heat guns to be used when working on aircraft that have not been defueled and purged.
What is the MAXIMUM number of terminal lugs per post? correct answers 4 terminal lugs per
terminal post
Which wire size (AWG) should be used with a red terminal lug? correct answers Red 22-18
AWG
What is the correct strip length for #22 AWG wire, when stripping length for small copper
terminal lugs? correct answers 6/32"
According to the NAVAIR 01-1A-505-1, Wire size with AWG of ___ and larger, shall be
replaced in its entirety instead of being repaired? correct answers WP14
What is used as an inspection aid during shield termination installation? correct answers WP15
Which shield termination class is the only class authorized for military use? correct answers
WP15
List the characteristics of an unacceptable (overheated). correct answers WP15
Which two letters identify terminal boards? correct answers WP19
According to WP19 of the NAVAIR 01-1A-505-1, how should terminal lugs with various
diameters be stacked? correct answers WP19
, Summarize the meaning of the "WARNING" on Cadmium plate material. correct answers The
use of cadmium has been restricted and/or banned for use in many countries due to
environmental and health concerns.
List three different types of connector couplings. correct answers threaded, bayonet, breech, or
push pull
Briefly explain the meaning of "polarization" and "clocking". correct answers Polarization is
accomplished by use of a key and keyway or series of keys and keyways. Clocking is defined as
the angle in degrees that the wiring, backshell, boot, or potting are displaced from the connector
keyway.
The table that lists the personnel required to tow each aircraft types can be found where? correct
answers Coast Guard Technical Order Process Guide 85-00-110.
How many towing personnel is required on each aircraft type? correct answers HC130, 7 people
HC144, 6 people
MH60, 4 people
MH65, 4 people
Tractor two speeds may not exceed what speed? correct answers 5 miles per hour or the slowest
wing walker
Tow vehicles are rated according to what? correct answers Drawbar Pull (DBP) or the amount of
pulling/pushing force produced.
The pre-operational inspection of the tow vehicle will be performed when? correct answers prior
to the first use each day.
