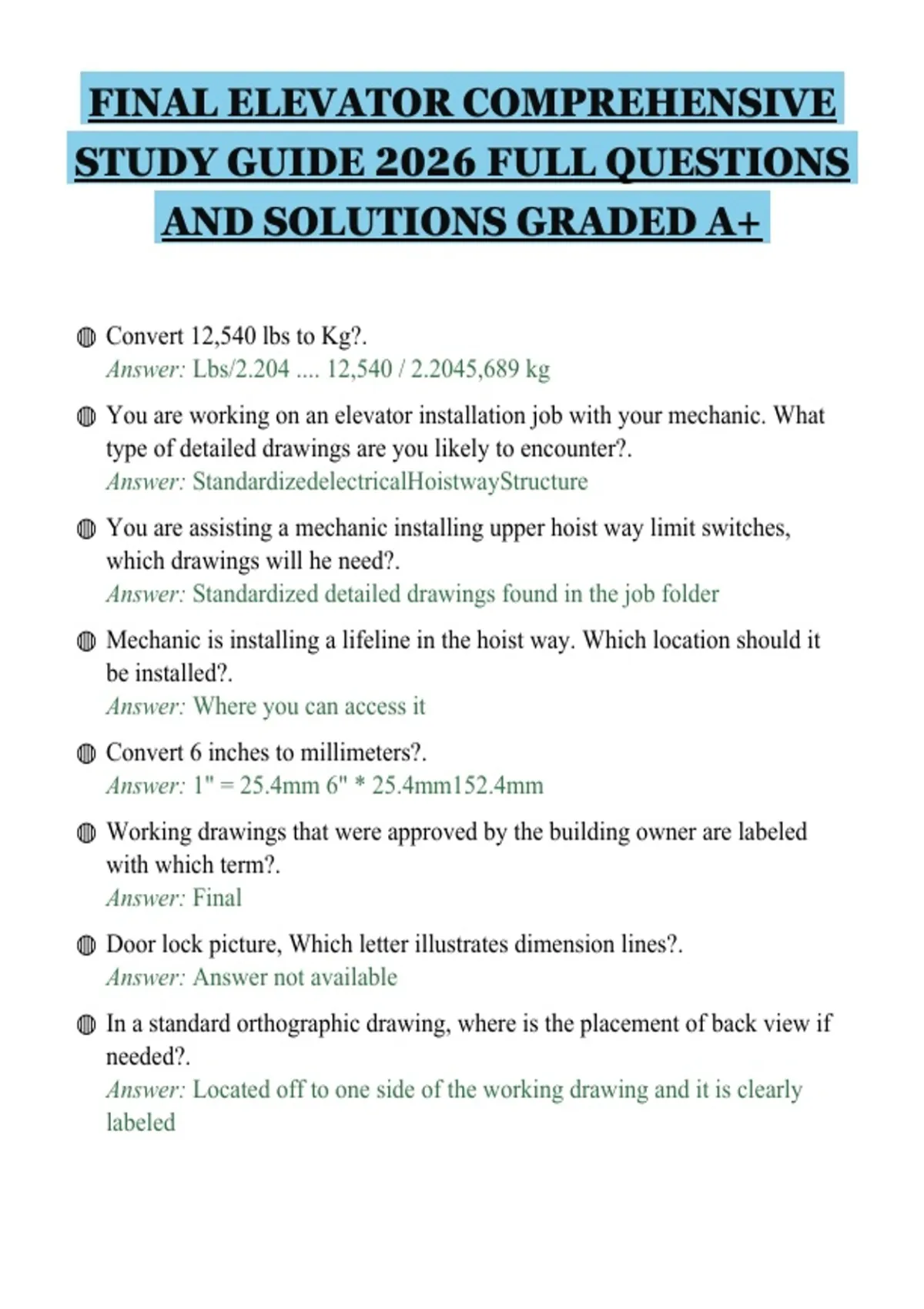

FINAL ELEVATOR COMPREHENSIVE
STUDY GUIDE 2026 FULL QUESTIONS
AND SOLUTIONS GRADED A+
◍ Convert 12,540 lbs to Kg?.
Answer: Lbs/2.204 .... 12,.2045,689 kg
◍ You are working on an elevator installation job with your mechanic. What
type of detailed drawings are you likely to encounter?.
Answer: StandardizedelectricalHoistwayStructure
◍ You are assisting a mechanic installing upper hoist way limit switches,
which drawings will he need?.
Answer: Standardized detailed drawings found in the job folder
◍ Mechanic is installing a lifeline in the hoist way. Which location should it
be installed?.
Answer: Where you can access it
◍ Convert 6 inches to millimeters?.
Answer: 1" = 25.4mm 6" * 25.4mm152.4mm
◍ Working drawings that were approved by the building owner are labeled
with which term?.
Answer: Final
◍ Door lock picture, Which letter illustrates dimension lines?.
Answer: Answer not available
◍ In a standard orthographic drawing, where is the placement of back view if
needed?.
Answer: Located off to one side of the working drawing and it is clearly
labeled
, ◍ There are several standard drawing methods showing 3 sides of an object at
once. What is it called?.
Answer: Isometric
◍ How would you describe a class 3 fit for shaft and boar diameters?.
Answer: Snuggest positive allowance
◍ Which class of bolt threads provides the highest level of precision?.
Answer: Class 3
◍ What is the difference between us standard and metric standard threads?.
Answer: Metric is measured by the number of pitch vs the number of threads
◍ What tool do you need to remove an internal snap ring?.
Answer: Snap Ring Pliers
◍ Convert 33.5 inches to millimeters?.
Answer: 1" = 25.4mm 33.5 * 25.4850.9mm
◍ What type of drawing presents a 3-sided view of an object?.
Answer: Orthographic
◍ Question not available.
Answer: 3 boxes
◍ 4730/144.
Answer: 32.84
◍ When erecting a scaffold what type of fall protection can be used in addition
to a fall arrest system?.
Answer: Guard Rails
◍ What type of scaffold hazards are the most serious?.
Answer: Unsafe access & Collapse
◍ What mnemonic can be used to remember the 5 most serious scaffold
hazards?.
Answer: Fuses
