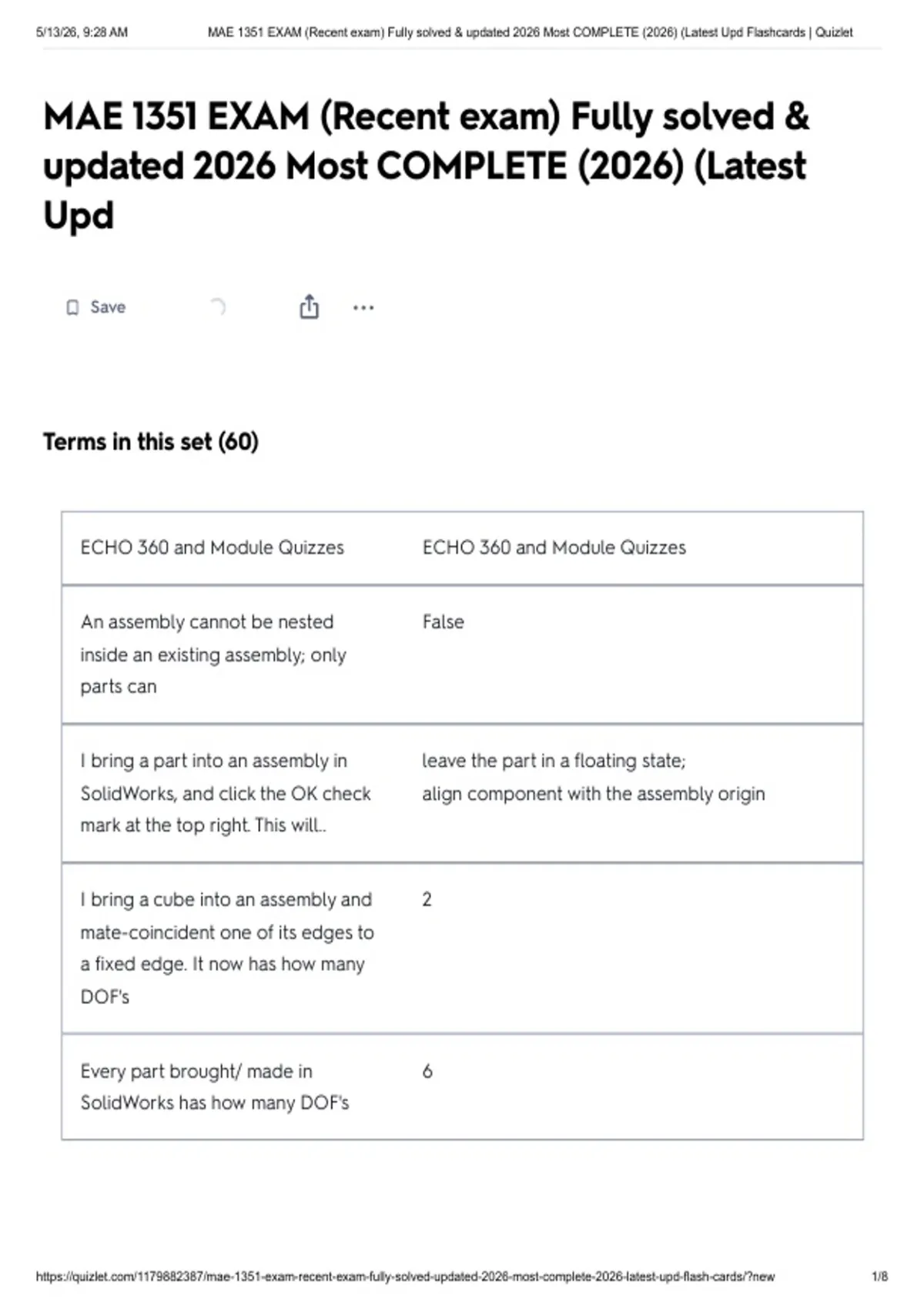

MAE 1351 EXAM (Recent exam) Fully solved &
updated 2026 Most COMPLETE (2026) (Latest
Upd
Save
Terms in this set (60)
ECHO 360 and Module Quizzes ECHO 360 and Module Quizzes
An assembly cannot be nested False
inside an existing assembly; only
parts can
I bring a part into an assembly in leave the part in a floating state;
SolidWorks, and click the OK check align component with the assembly origin
mark at the top right. This will..
I bring a cube into an assembly and 2
mate-coincident one of its edges to
a fixed edge. It now has how many
DOF's
Every part brought/ made in 6
SolidWorks has how many DOF's
https://quizlet.com/1179882387/mae-1351-exam-recent-exam-fully-solved-updated-2026-most-complete-2026-latest-upd-flash-cards/?new 1/8
, 5/13/26, 9:28 AM MAE 1351 EXAM (Recent exam) Fully solved & updated 2026 Most COMPLETE (2026) (Latest Upd Flashcards | Quizlet
When you apply mates to an object Taking away DOF's each time a mate/constraint is
in SolidWorks, what are you applied
technically doing?
I bring a cube into an assembly and 3
mate coincident one of its vertices to
a fixed vertex. It now has how many
DOF's
For every mate I apply, I reduce the Depends on the mate
DOF of the part by these many
I bring a cylinder into an assembly 3
and mate-parallel one of its flat
faces to the top of the plane. This
causes it to lose these many DOFs
I bring a cylinder into an assembly 3
and mate-tangent its curved to a
curved surface of a fixed identical
cylinder. It now has how many DOF's
The equivalent of mass in a rotational moment of inertia
system is called the
I have an assembly with moving Motion Study
parts and wish to check that I have
part clearances throughout. For this I
need.
In a SolidWorks assembly, it is yes, easily
possible to assign an arbitrary
motion to a component to visualize
overall behavior
