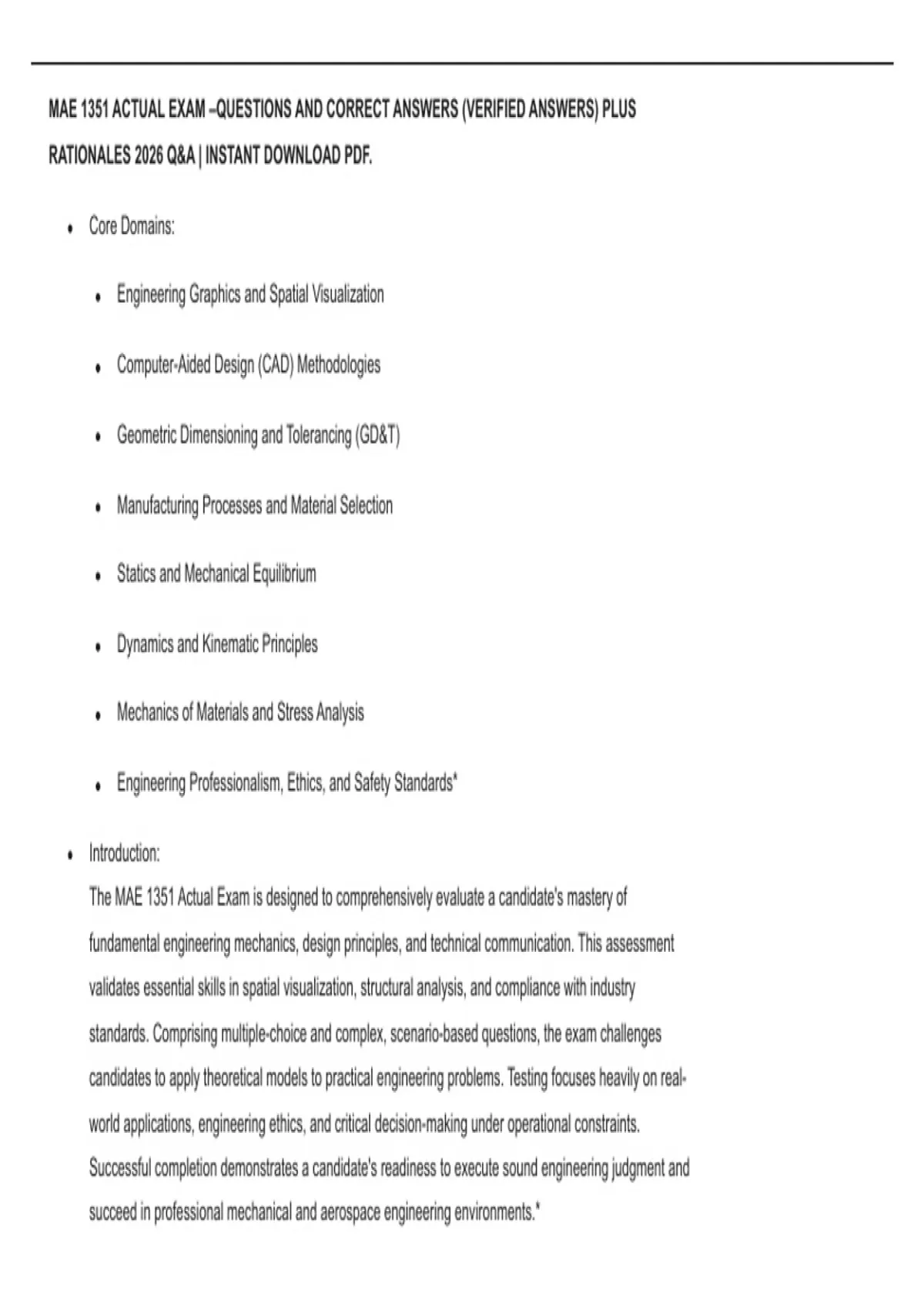

MAE 1351 ACTUAL EXAM –QUESTIONS AND CORRECT ANSWERS (VERIFIED ANSWERS) PLUS
RATIONALES 2026 Q&A | INSTANT DOWNLOAD PDF.
Core Domains:
Engineering Graphics and Spatial Visualization
Computer-Aided Design (CAD) Methodologies
Geometric Dimensioning and Tolerancing (GD&T)
Manufacturing Processes and Material Selection
Statics and Mechanical Equilibrium
Dynamics and Kinematic Principles
Mechanics of Materials and Stress Analysis
Engineering Professionalism, Ethics, and Safety Standards*
Introduction:
The MAE 1351 Actual Exam is designed to comprehensively evaluate a candidate's mastery of
fundamental engineering mechanics, design principles, and technical communication. This assessment
validates essential skills in spatial visualization, structural analysis, and compliance with industry
standards. Comprising multiple-choice and complex, scenario-based questions, the exam challenges
candidates to apply theoretical models to practical engineering problems. Testing focuses heavily on real-
world applications, engineering ethics, and critical decision-making under operational constraints.
Successful completion demonstrates a candidate's readiness to execute sound engineering judgment and
succeed in professional mechanical and aerospace engineering environments.*
,Section One: Questions 1–100
Question 1
A mechanical engineer needs to establish a geometric constraint in a CAD model to ensure that two cylindrical
surfaces always share the same centerline, regardless of any dimensional changes to their diameters. Which
constraint should be applied?
A. Concentric
B. Parallel
C. Coincident
D. Collinear
🟢 A. Concentric
🔴 RATIONALE: The concentric constraint forces two or more circular or cylindrical features to share the exact
same center point or axis. While coincident constraints can link points or lines, concentricity specifically locks
circular profiles to a single shared axis, preserving axial alignment during parametric model updates.
Question 2
A simply supported beam of length L experiences a uniformly distributed load w across its entire span. What is the
maximum bending moment experienced by the beam, and where does it occur?
A. wL^ at the supports
B. wL^ at the mid-span
C. wL^ at the mid-span
D. wL / 8 at the supports
🟢 B. wL^ at the mid-span
,🔴 RATIONALE: For a simply supported beam under a uniformly distributed load, the shear force crosses zero at
the mid-span (x = L/2). Integrating the shear force equation yields the maximum bending moment equation, M =
wL^, which occurs precisely at this center point.
Question 3
During a design review, an engineer notes that a critical rotating shaft failed due to cyclic loading well below its
ultimate tensile strength. This failure mode is most likely classified as:
A. Ductile rupture
B. Brittle fracture
C. Fatigue failure
D. Creep deformation
🟢 C. Fatigue failure
🔴 RATIONALE: Cyclic or fluctuating loads induce localized micro-cracks that propagate over time, leading to
sudden structural failure known as fatigue. Fatigue failure characteristically occurs at stress levels significantly
lower than the material's static yield and ultimate tensile strengths.
Question 4
An engineer is applying Geometric Dimensioning and Tolerancing (GD&T) to a high-precision aerospace valve
stem. To control the variation of a cylindrical surface relative to a datum axis during full rotation, which symbol
must be specified?
A. Profile of a surface
B. Circularity
C. Total Runout
D. Cylindricity
, 🟢 C. Total Runout
🔴 RATIONALE: Total Runout controls cumulative variations in circularity, straightness, coaxiality, and taper
across the entire surface of a cylindrical part as it rotates 360 degrees around a datum axis. Circularity and
cylindricity do not require a datum reference.
Question 5
According to the NSPE Code of Ethics for Engineers, what is the paramount obligation of an engineer when
performing professional duties?
A. Act as a faithful agent or trustee for the client or employer
B. Hold paramount the safety, health, and welfare of the public
C. Advance the engineering profession through research
D. Issue public statements only in an objective and truthful manner
🟢 B. Hold paramount the safety, health, and welfare of the public
🔴 RATIONALE: The foundational tenet of engineering ethics dictates that the safety, health, and welfare of the
general public must take precedence over all other obligations, including corporate loyalty, profitability, or client
directives.
Question 6
A 50 kg mass is suspended by two symmetric cables that each form a 30-degree angle with the horizontal ceiling.
Assuming gravitational acceleration g = 9.81 m/s^2, what is the tension force in each cable?
A. 245.3 N
B. 490.5 N
C. 849.6 N
D. 981.0 N
