7/29/25, 12:37 AM Advanced PLCs Test 1: Module 1-3 Questions and Verified Answers

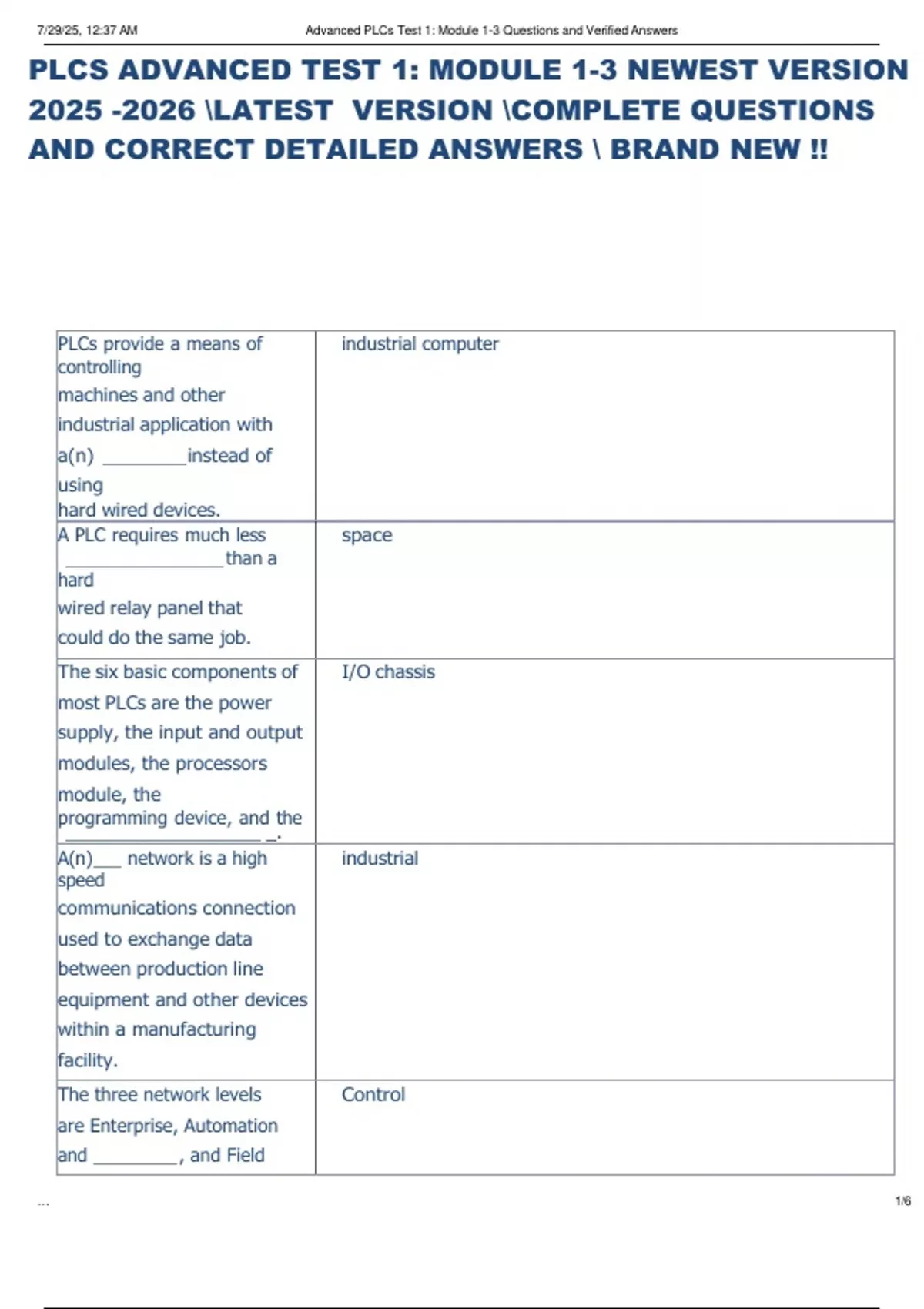

PLCS ADVANCED TEST 1: MODULE 1-3 NEWEST VERSION
2025 -2026 \LATEST VERSION \COMPLETE QUESTIONS
AND CORRECT DETAILED ANSWERS \ BRAND NEW !!
PLCs provide a means of industrial computer
controlling
machines and other
industrial application with
a(n) _________ instead of
using
hard wired devices.
A PLC requires much less space
_________________ than a
hard
wired relay panel that
could do the same job.
The six basic components of I/O chassis
most PLCs are the power
supply, the input and output
modules, the processors
module, the
programming device, and the
_____________________ _.
A(n)___ network is a high industrial
speed
communications connection
used to exchange data
between production line
equipment and other devices
within a manufacturing
facility.
The three network levels Control
are Enterprise, Automation
and _________ , and Field
… 1/6
, 7/29/25, 12:37 AM Advanced PLCs Test 1: Module 1-3 Questions and Verified Answers
Device.
_ ____ uses several protocols Ethernet TCP/IP
to
convert data from its native
format, such as a text
message, into a format that
can be
sent and tracked from the
source node to the
destination node of a
network.
Ethernet/IP uses the ___ CIP
(protocol) to produce a
network suitable for use on
automation and control level.
A PLC and PC are connected point-to-point
in a(n)
_ ____ network using a single
Ethernet
cable.
Two addresses are used for Internet Protocol (IP)
Ethernet
communications: Media
Access Control (MAC) and
_______________ _.
_ _ are software programs Drivers
that allow a
device to connect to a
network and communicate
with other devices.
The IP address of a RSLinx
CompactLogix PLC that
already has an IP address is
viewed and
edited using communications
software.
… 2/6
