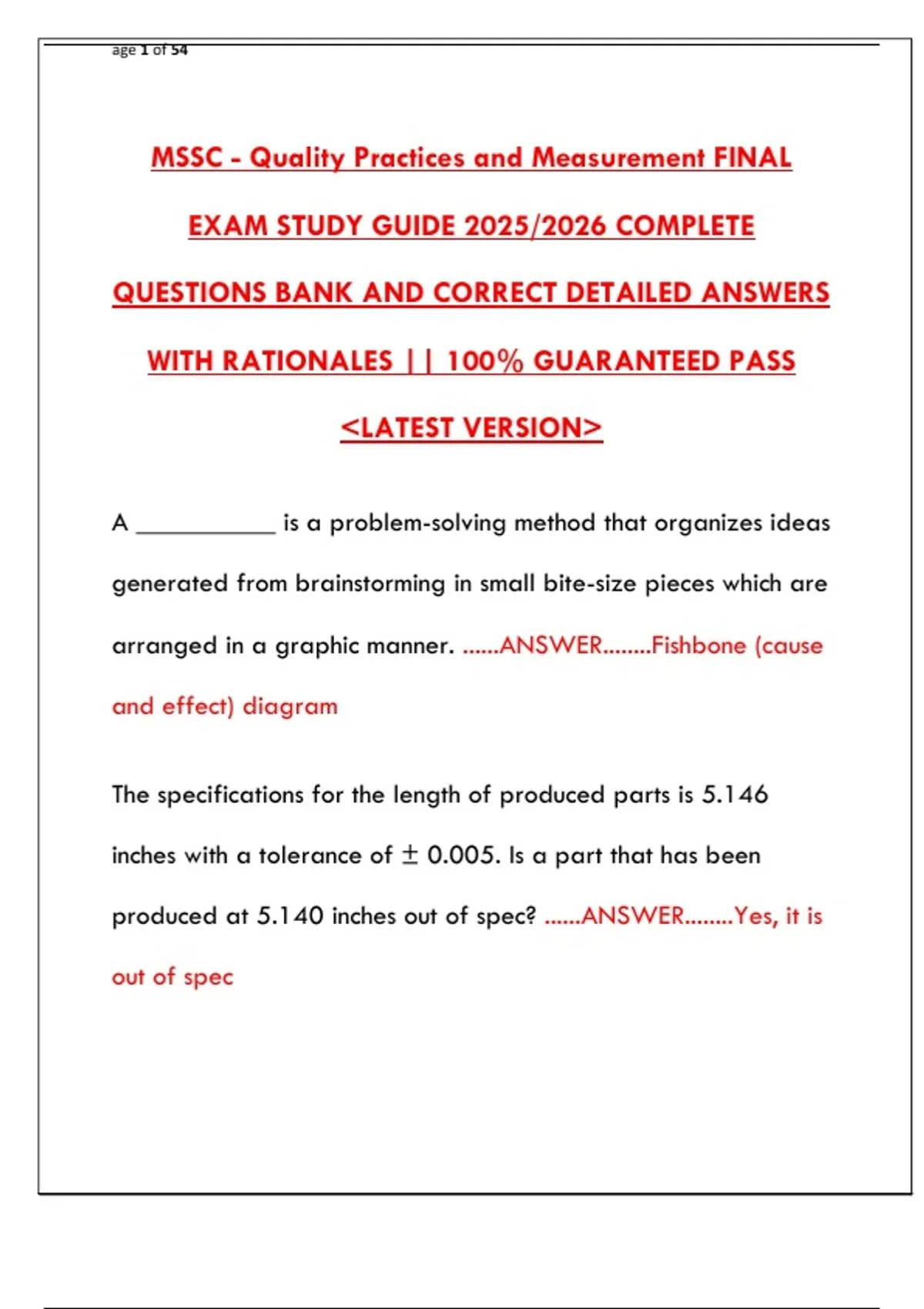

age 1 of 54
MSSC - Quality Practices and Measurement FINAL
EXAM STUDY GUIDE 2025/2026 COMPLETE
QUESTIONS BANK AND CORRECT DETAILED ANSWERS
WITH RATIONALES || 100% GUARANTEED PASS
<LATEST VERSION>
A __________ is a problem-solving method that organizes ideas
generated from brainstorming in small bite-size pieces which are
arranged in a graphic manner. ......ANSWER........Fishbone (cause
and effect) diagram
The specifications for the length of produced parts is 5.146
inches with a tolerance of ± 0.005. Is a part that has been
produced at 5.140 inches out of spec? ......ANSWER........Yes, it is
out of spec
,age 2 of 54
Which dimension on a production drawing has the most
accuracy? ......ANSWER........The one with the most "tolerance"
decimal places
Manufacturing workers can use a calibrated torque wrench to
__________. ......ANSWER........Measure the proper amount of
torque
Which type of feature is parallel to the surface being
dimensioned? ......ANSWER........Dimension line
The three standard views of an object are __________.
......ANSWER........Top, front, right side
Which type of lines are used to show the counterbored hole in
the part? ......ANSWER........Hidden lines
,age 3 of 54
The number of views in a drawing __________.
......ANSWER........Is the fewest number that shows all of the
features and dimensions
Which of the following steps is NOT used in the glass box
method? ......ANSWER........Rotate object in glass box.
What type of drawing is shown? ......ANSWER........Multiview
The dimensions of raw material supplied by metal suppliers are
described by the __________. ......ANSWER........Stock size
Which of these requires a computer? ......ANSWER........CAD
An isometric drawing is a type of __________.
......ANSWER........Pictorial drawing
In the graphic shown, the two circles are __________.
......ANSWER........Concentric
, age 4 of 54
Dimensions are used to specify the __________ and location of
the features of an object. ......ANSWER........Size
What feature in the figure shown is a Chamfer?
......ANSWER........D
A __________ dimension is described in inches per foot.
......ANSWER........Shaft taper
What is the order of precedence of lines in a drawing?
......ANSWER........Object, Hidden, Center
Which of the following is not one of the six rules for
dimensioning an object? ......ANSWER........Dimension hidden lines
Engineers sometimes use a __________ to measure angles on a
drawing. ......ANSWER........Protractor
