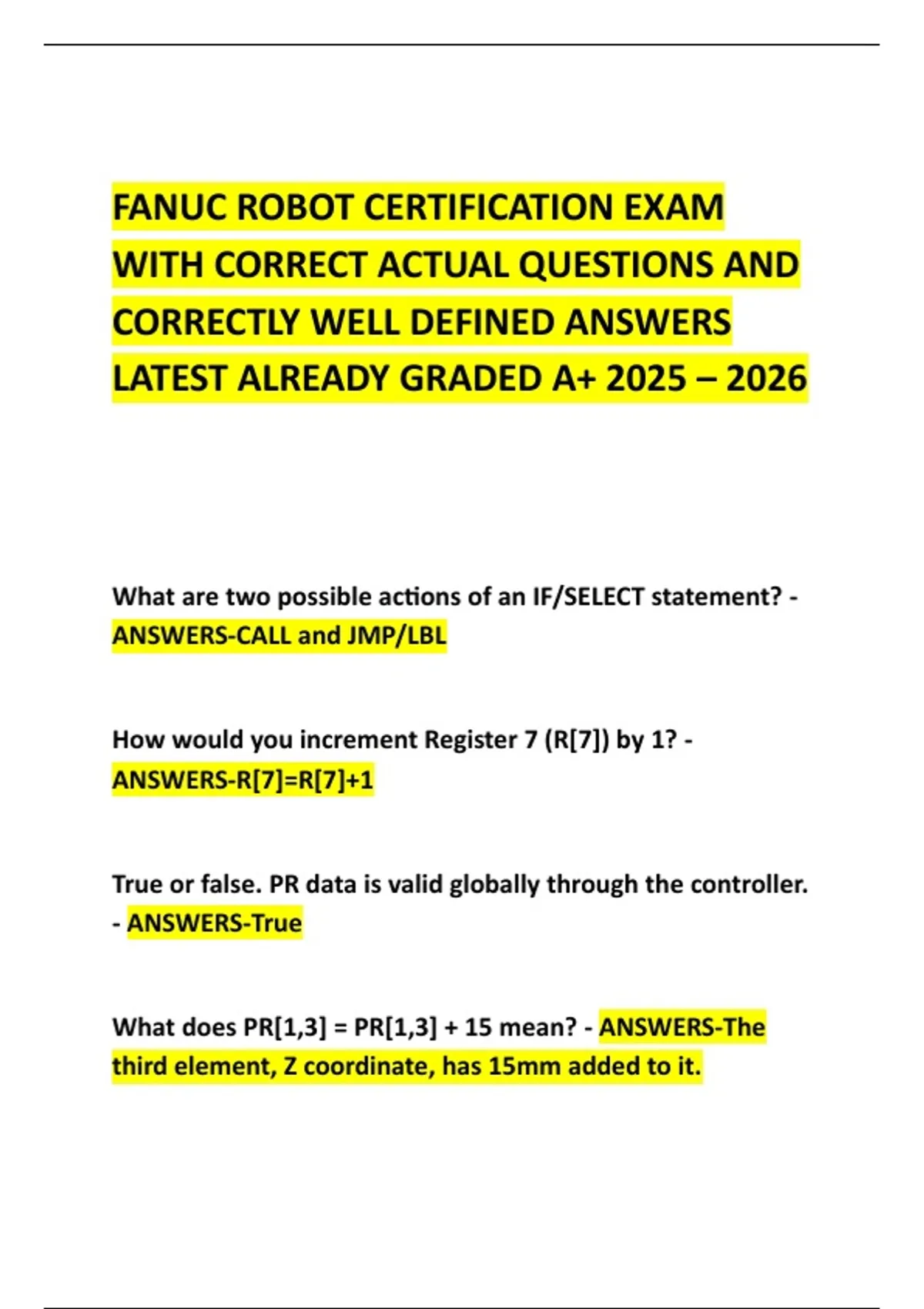

WITH CORRECT ACTUAL QUESTIONS AND
CORRECTLY WELL DEFINED ANSWERS
LATEST ALREADY GRADED A+ 2025 – 2026
What are two possible actions of an IF/SELECT statement? -
ANSWERS-CALL and JMP/LBL
How would you increment Register 7 (R[7]) by 1? -
ANSWERS-R[7]=R[7]+1
True or false. PR data is valid globally through the controller.
- ANSWERS-True
What does PR[1,3] = PR[1,3] + 15 mean? - ANSWERS-The
third element, Z coordinate, has 15mm added to it.
, What is the Binary Bit Value for the following outputs?
DO[1] and DO[5]. - ANSWERS-17
Configuring I/O establishes the correspondence between
the signal number and the physical port. Each signal, or
signal-sequence must be configured to a rack, a __________
in the rack, and the starting point or channel number (for
analog). - ANSWERS-Slot
How do you access positional data? - ANSWERS-Select the
POSN key.
What are the three positional statuses? - ANSWERS-Joint
World
User
True/False You need a good USER frame and TOOL frame
before you make a program. - ANSWERS-True
True/False Joint positional data is in mm. - ANSWERS-False
Joint positional data is in degrees.
